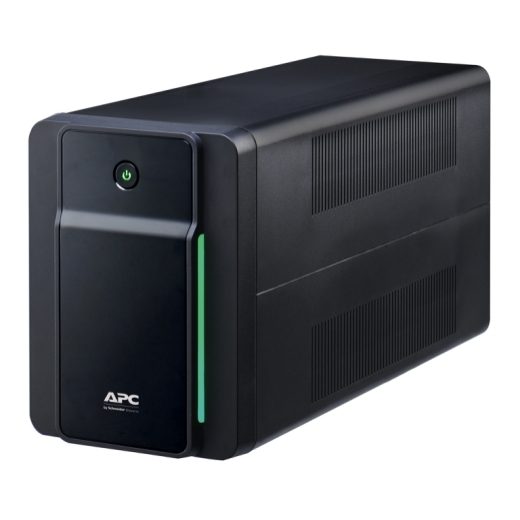

APC Back-UPS 1600VA, 230V, AVR, Schuko S
APC Back-UPS 1600VA, 230V, AVR, 4 Schuko outlets
Battery Backup & Surge Protector for Electronics and Computers
Output power capacity
900 Watts / 1.6kVA
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
Schuko
Cord Length
1.2meters
APC Back-UPS, 1600VA, Tower, 230V, 4x CEE 7/7 Schuko outlets, AVR
Battery Backup & Surge Protector for Electronics and Computers
- Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
- LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
- PowerChute Personal Edition OS Compatibility
This software supports numerous operating systems and processors. For further information, please bra href=”https://www.apc.com/wp/?um=300″click here./a
Back-UPS Features & Benefits
Marketing features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Manageability
LED status display
Quickly understand unit and power status with visual indicators.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Output
Max Configurable Power (Watts)
900 Watts / 1.6kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations
140 – 300V
Number of Power Cords
1
Input Power Factor at Full Load
0.56
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
8hour(s)
Nominal Battery Voltage
24 V
Replacement Battery
Expected Battery Life (years)
3 – 5
Battery Volt-Amp-Hour Capacity
168
Runtime
Efficiency
Communications & Management
Interface Port(s)
USB
Control panel
LED Status display with on line : on battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating
273Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
Physical
Maximum Height
190MM, 19.0CM
Maximum Width
140MM, 14.0CM
Maximum Depth
390MM, 39.0CM
Net Weight
10.3KG
Shipping weight
11.3KG
Shipping Height
297MM, 29.7CM
Shipping Width
495MM, 49.5CM
Shipping Depth
235MM, 23.5CM
Color
Black
SCC Codes
10731304410871
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3000meters
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 3000meters
Audible noise at 1 meter from surface of unit
40.0dBA
Protection Class
IP20
Conformance
Approvals
CB , CE, EAC
Equipment protection policy
Lifetime : 50000 euros
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
EXTRA INFO
Montare in rack
No
Management UPS
No
Tip UPS
Line Interactive
Ecran LCD
Nu
Capacitate putere UPS
900W
