Run time for load
Min-max: 120-1200 W
W 1m 22s
Max. Capacity Used
100%
Output power capacity
1.2kWatts / 2.2kVA
Output Connections
(6) IEC 60320 C13 (Battery Backup)
Nominal Input Voltage
230V
Cord Length
1.2meters

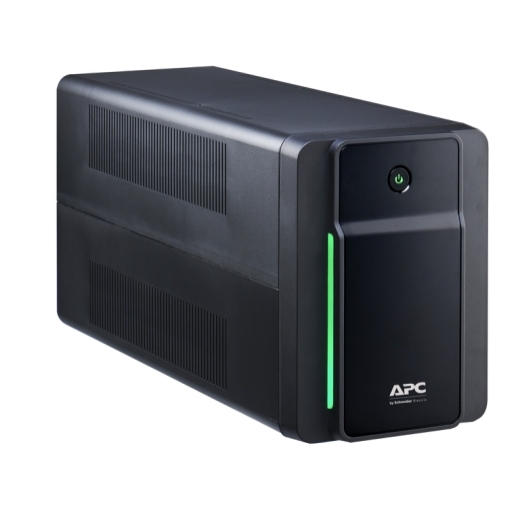

APC Back-UPS, 2200VA, Tower, 230V, 6x IEC C13 outlets, AVR
Battery Backup & Surge Protector for Electronics and Computers
- Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
- PowerChute Personal Edition OS Compatibility
This software supports numerous operating systems and processors. For further information, please bra href=”https://www.apc.com/wp/?um=300″click here./a
- USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Back-UPS Features & Benefits
Marketing features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Manageability
LED status display
Quickly understand unit and power status with visual indicators.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Output
Max Configurable Power (Watts)
1.2kWatts / 2.2kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations
140 – 300V
Number of Power Cords
1
Input Power Factor at Full Load
0.54
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
8hour(s)
Nominal Battery Voltage
24 V
Replacement Battery
Expected Battery Life (years)
3 – 5
Battery Volt-Amp-Hour Capacity
216
Runtime
Efficiency
Communications & Management
Interface Port(s)
USB
Control panel
LED Status display with on line : on battery
Surge Protection and Filtering
Surge energy rating
273Joules
Physical
Maximum Height
190MM, 19.0CM
Maximum Width
140MM, 14.0CM
Maximum Depth
390MM, 39.0CM
Net Weight
12.3KG
Shipping weight
13.3KG
Shipping Height
297MM, 29.7CM
Shipping Width
495MM, 49.5CM
Shipping Depth
235MM, 23.5CM
Color
Black
SCC Codes
10731304410833
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3000meters
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 3000meters
Audible noise at 1 meter from surface of unit
40.0dBA
Protection Class
IP20
Conformance
Approvals
CB , CE, EAC
Equipment protection policy
Lifetime : 50000 euros
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
