--30%
BK500EI
Run time for load
Min-max: 30-300 W
W 3m 56s
Max. Capacity Used
100%
Output power capacity
300 Watts / 500VA
Output Connections
(1) IEC 60320 C13 (Surge Protection)
(2) IEC Jumpers (Surge Protection)
(3) IEC 60320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C14
Maximum Input Current
7.0A

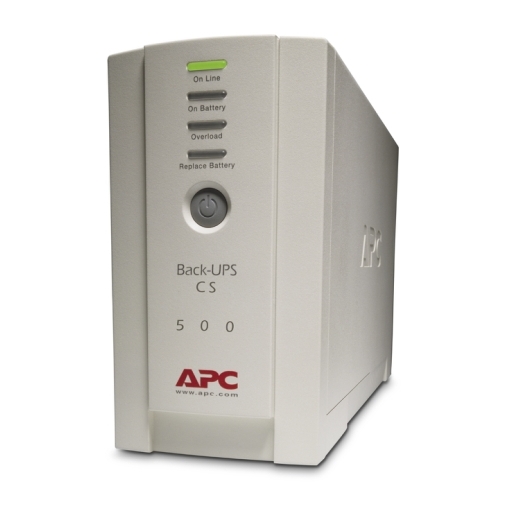

APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
Battery Backup & Surge Protector for Electronics and Computers
Includes: (1) Detachable 1.2 m IEC power cord, (1) Detachable IEC power cord, CD with software, Documentation CD, Telephone cable, USB cable, Warranty card.
- Serial connectivity
Provides management of the UPS via a serial port.
- USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Back-UPS Features & Benefits
Marketing features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Availability
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Manageability
LED status display
Quickly understand unit and power status with visual indicators.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Output
Max Configurable Power (Watts)
300 Watts / 500VA
Output Frequency (sync to mains)
47 – 63 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Topology
Standby
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
47 – 63 Hz, 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
160 – 300 Adjustable, 180 – 266V
Number of Power Cords
2
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
8hour(s)
Nominal Battery Voltage
12 V
Replacement Battery
RBC2
Expected Battery Life (years)
4 – 6
RBC Quantity
1
Battery Charge Power (Watts)
10 Watts
Battery Volt-Amp-Hour Capacity
83
Runtime
Efficiency
Communications & Management
Interface Port(s)
Optional Simple Signalling RS232 cable, USB
Control panel
LED status display with on line : on battery : replace battery and overload indicators
Surge Protection and Filtering
Surge energy rating
310Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
165MM, 16.5CM
Maximum Width
91MM, 9.1CM
Maximum Depth
284MM, 28.4CM
Net Weight
6.32KG
Shipping weight
7.05KG
Shipping Height
178MM, 17.8CM
Shipping Width
241MM, 24.1CM
Shipping Depth
368MM, 36.8CM
Color
Beige
Master Carton Dimensions (Length x Width x Height)
1200 x 1000 x 1330MM
Master Carton Units
30.0
Master Carton Weight
490.0
SCC Codes
10731304016356
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 15240meters
Audible noise at 1 meter from surface of unit
40.0dBA
Online thermal dissipation
24.0BTU/hr
Conformance
Approvals
C-Tick, CE, GOST, VDE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
