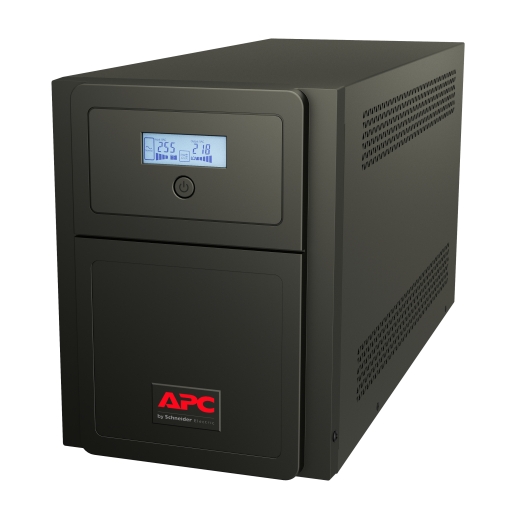

APC Easy UPS Line-interactive SMV 3000VA 230V with Network Slot
APC Easy UPS Line-interactive SMV 3000VA 230V with Network Slot
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Includes: Documentation CD, USB cable, User manual
Output power capacity
2.1kWatts / 3.0kVA

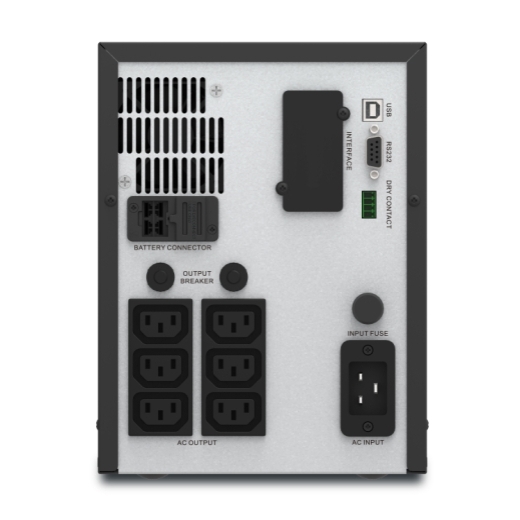

Output Connections
(6) IEC 320 C13 (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C20
Specificatii
EXTRA INFO
Montare in rack
No
Management UPS
Yes
Tip UPS
Line Interactive
Ecran LCD
Da
Capacitate putere UPS
2000W
Run time for load
Min-max: 210-2100 W
W
2m 25s
Max. Capacity Used
100%
Output power capacity
2.1kWatts / 3.0kVA
Output Connections
(6) IEC 320 C13 (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C20
APC Easy UPS Line-interactive SMV 3000VA 230V with Network Slot
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Includes: Documentation CD, USB cable, User manual
- Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Intelligent Card Slot
Customize UPS capabilities with management cards.

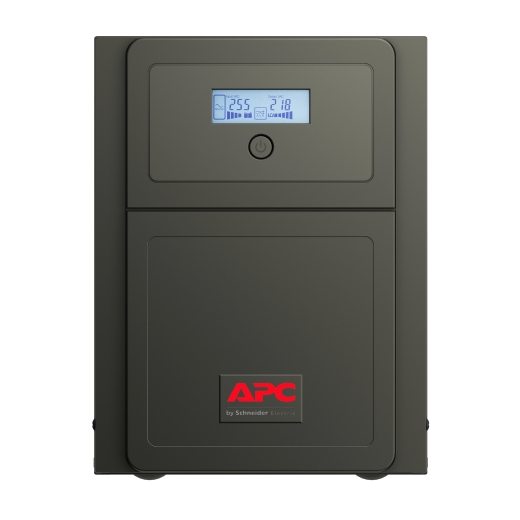

- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Output
Max Configurable Power (Watts)
2.1kWatts / 3.0kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Unsynchronised
Load Crest Factor
3 : 1
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
2-6 ms typical : 12 ms maximum
Input
Input frequency
45 – 65 Hz +/- 1 Hz Auto-sensing
Input voltage range for main operations
165 – 295V
Number of Power Cords
1
Other Input Voltages
220 V, 240 V
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
4hour(s)
Nominal Battery Voltage
48 V
Replacement Battery
Expected Battery Life (years)
3 – 5
Battery Charge Power (Watts)
99 Watts
Battery Volt-Amp-Hour Capacity
432
Runtime
Efficiency
Communications & Management
Interface Port(s)
Intelligent Smart Slot, USB
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
125Joules
Physical
Maximum Height
240MM, 24.0CM
Maximum Width
180MM, 18.0CM
Maximum Depth
455MM, 45.5CM
Net Weight
25.2KG
Shipping weight
28.84KG
Shipping Height
414MM, 41.4CM
Shipping Width
319MM, 31.9CM
Shipping Depth
604MM, 60.4CM
Color
Black
Master Carton Dimensions (Length x Width x Height)
1200 x 800 x 132MM
Master Carton Units
12.0
Master Carton Weight
346.07
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3000meters
Storage Temperature
-10 – 40 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 15000meters
Audible noise at 1 meter from surface of unit
45.0dBA
Protection Class
IP20
Conformance
Approvals
CE, EAC, UKCA
Standard warranty
2 years repair or replace
