Run time for load
Min-max: 105-1050 W
W 3m 12s
Max. Capacity Used
100%
Output power capacity
1.05kWatts / 1.5kVA

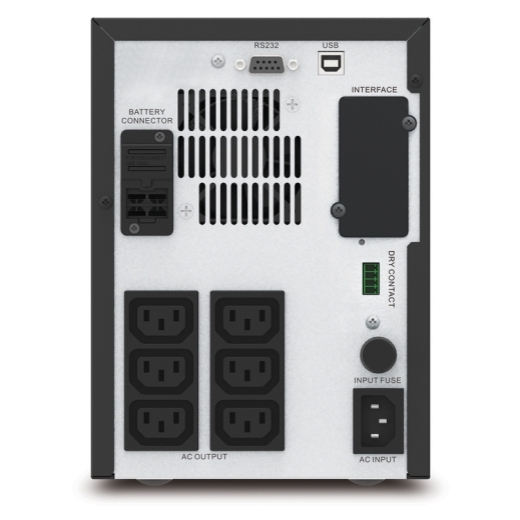

Output Connections
(6) IEC 60320 C13 (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C14

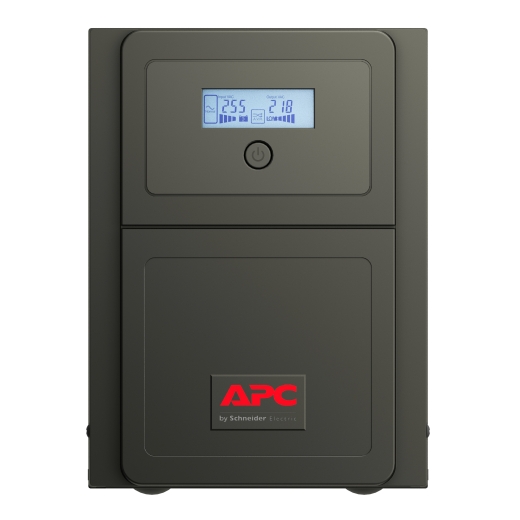

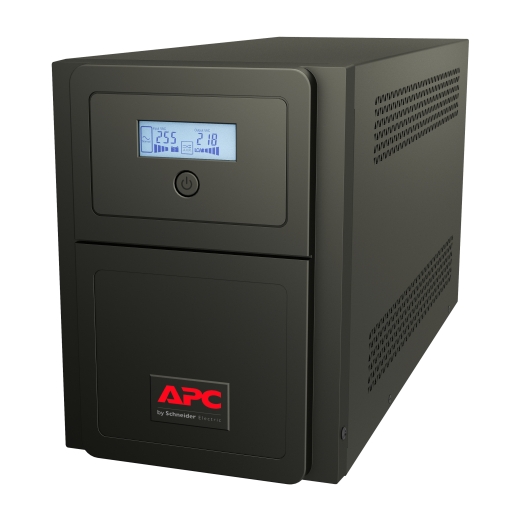

APC Easy UPS Line-interactive SMV 1500VA 230V
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Includes: Documentation CD, USB cable, User manual
- Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Intelligent Card Slot
Customize UPS capabilities with management cards.
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Easy UPS Features & Benefits
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Protection
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Manageability
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Features
Cold-start capable
Provides temporary battery power when the utility power is out.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Availability
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Output
Max Configurable Power (Watts)
1.05kWatts / 1.5kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Unsynchronised
Load Crest Factor
3 : 1
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
2-6 ms typical : 12 ms maximum
Input
Input frequency
45 – 65 Hz +/- 1 Hz Auto-sensing
Input voltage range for main operations
165 – 290V
Number of Power Cords
1
Other Input Voltages
220 V, 240 V
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
4hour(s)
Nominal Battery Voltage
24 V
Replacement Battery
Expected Battery Life (years)
3 – 5
Battery Charge Power (Watts)
54 Watts
Battery Volt-Amp-Hour Capacity
240
Runtime
Efficiency
Communications & Management
Interface Port(s)
DB-9 RS-232, Intelligent Smart Slot, USB
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
190Joules
Physical
Maximum Height
220MM, 22.0CM
Maximum Width
160MM, 16.0CM
Maximum Depth
410MM, 41.0CM
Net Weight
17.8KG
Shipping weight
20.75KG
Shipping Height
339MM, 33.9CM
Shipping Width
272MM, 27.2CM
Shipping Depth
508MM, 50.8CM
Color
Black
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3000meters
Storage Temperature
-10 – 40 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 15000meters
Audible noise at 1 meter from surface of unit
45.0dBA
Protection Class
IP20
Conformance
Approvals
CE, EAC, UKCA
Standard warranty
2 years repair or replace
