APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, W/O rail kit


Pretul afisat contine TVA (19%).

33.881,90 lei

Compara
Run time for load

Min-max: 600-6000 W
W 2m 28s
Max. Capacity Used

100%
Output power capacity

6.0kWatts / 6.0kVA

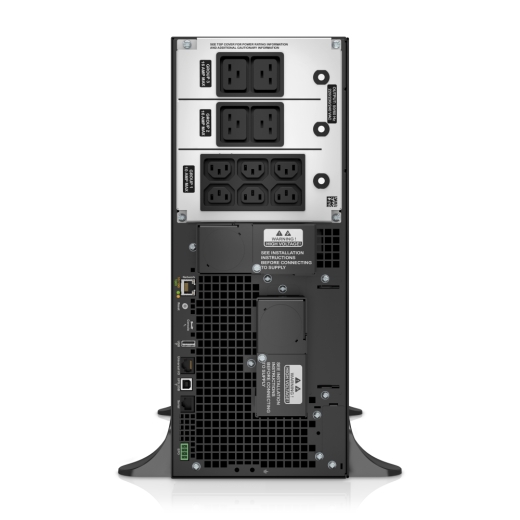

Output Connections

(1) Hard wire 3-wire (H N + E) (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(4) IEC 60320 C19 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
Nominal Output Voltage

230V
Nominal Input Voltage

230V
Input Connections

Hard wire 3-wire (1P + N + E)
APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, W/O rail kit
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP management card
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

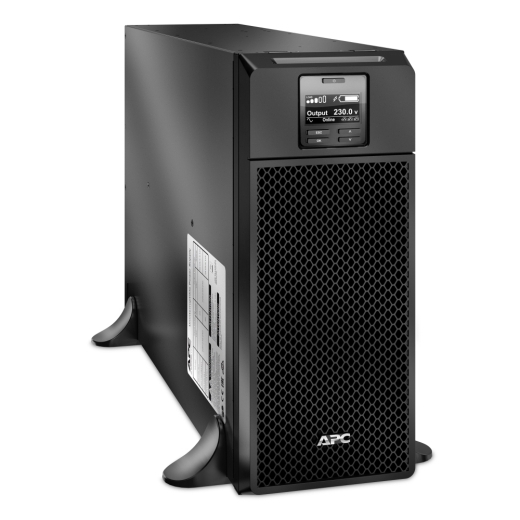

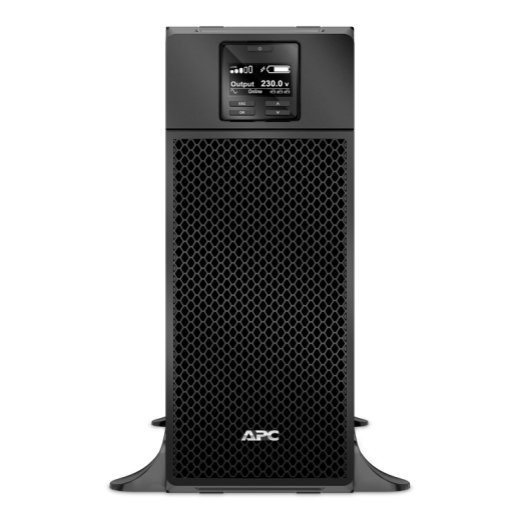

  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.

Smart-UPS On-Line Features & Benefits

Protection

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.
Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.
Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.
Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Cold-start capable

Provides temporary battery power when the utility power is out.

Availability

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.
Scalable runtime

Allows additional run time to be quickly added as needed.
Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.
Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Marketing features

Avoids costly power problems by keeping your IT equipment and data protected and available .

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Save time with easy and convenient remote/network accessibility.

Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Low operating and maintenance costs with proven reliability and intelligent battery management .

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Adaptability

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.
Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Manageability

Serial connectivity

Provides management of the UPS via a serial port.
LED status indicators

Quickly understand unit and power status with visual indicators.
Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.
Intelligent Card Slot

Customize UPS capabilities with management cards.

Serviceability

Audible alarms

Provides notification of changing utility power and UPS power conditions
Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.
Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.
User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Disconnected battery notification

Warns when a battery is not available to provide backup power.
SKU: SRT6KXLI Categorii: ,

Output

Max Configurable Power (Watts)

6.0kWatts / 6.0kVA
Output Voltage Distortion

Less than 2 %
Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages

220 V, 240 V
Load Crest Factor

3 : 1
Topology

Double conversion online
Waveform type

Sine wave
Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing
Input voltage range for main operations

100 – 275 Adjustable (half load)V
Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery
Typical recharge time

1.5hour(s)
Nominal Battery Voltage

192 V
Replacement Battery

APCRBC140
Expected Battery Life (years)

3 – 5
RBC Quantity

1
Battery Charge Power (Watts)

597 Watts
Extendable Run Time

1

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Emergency Power Off (EPO)

Yes
Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

480Joules

Physical

Maximum Height

432MM, 43.2CM
Maximum Width

174MM, 17.4CM
Maximum Depth

719MM, 71.94CM
Net Weight

60.0KG
Shipping weight

67.0KG
Shipping Height

370MM, 37.0CM
Shipping Width

610MM, 61.0CM
Shipping Depth

960MM, 96.0CM
Color

Black

Environmental

Operating Temperature

0 – 40 °C
Operating Relative Humidity

0 – 95 (Non-condensing) %
Operating Elevation

0 – 3048meters
Storage Temperature

-15 – 45 °C
Storage Relative Humidity

0 – 95 (Non-condensing) %
Storage Elevation

0 – 15240meters
Audible noise at 1 meter from surface of unit

55.0dBA
Online thermal dissipation

1300.0BTU/hr
Protection Class

IP20

Conformance

Approvals

CE, CE Mark, EAC, IRAM, RCM, VDE
Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant
