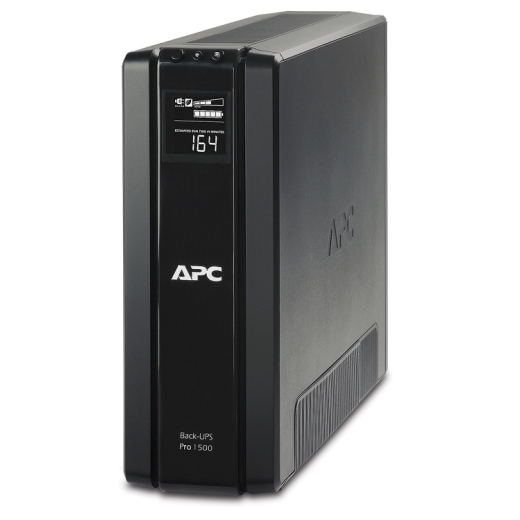

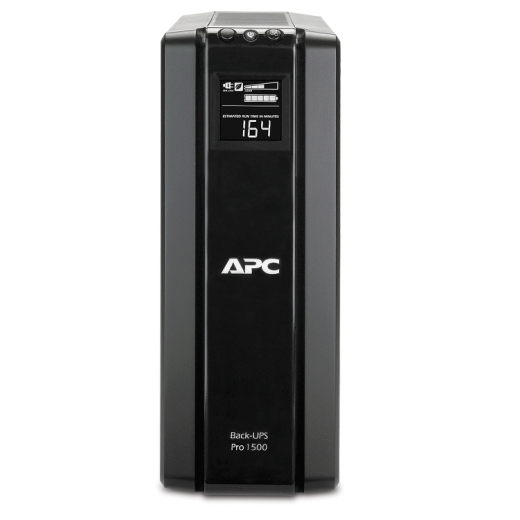

APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 6x CEE 7/7 Schuko outlets, Sine Wave, AVR, LCD, User Replaceable Battery


Pretul afisat contine TVA (19%).

3.158,70 lei

Compara

BR1500G-GR

Run time for load

Min-max: 87-865 W
W 3m 39s
Max. Capacity Used

100%
Output power capacity

865 Watts / 1.5kVA

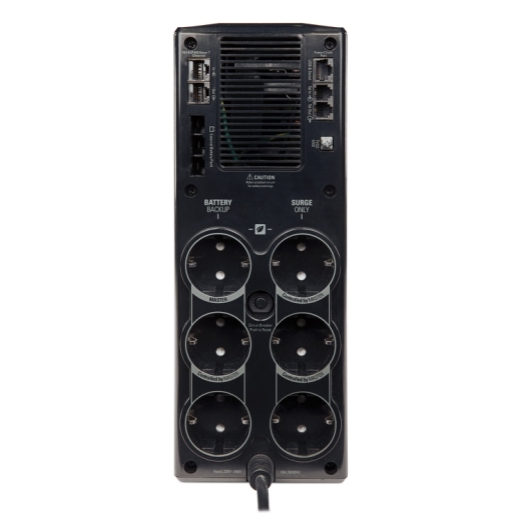

Output Connections

(3) Schuko CEE 7 (Surge Protection)
(3) Schuko CEE 7 (Battery Backup)
Nominal Input Voltage

230V
Cord Length

1.5meters
APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 6x CEE 7/7 Schuko outlets, Sine Wave, AVR, LCD, User Replaceable Battery
High Performance Computer and Electronics UPS for Premium Power Protection
  • Adjustable voltage sensitivity
    Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points
    Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Audible alarms
    Audible alarms alert you to changes in operating environment and battery conditions. Some alarms are software configurable and most can also be suppressed or delayed to eliminate nuisance alarms.
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Automatic Voltage Regulation (AVR)
    Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Battery replacement without tools
    Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
  • Battery-protected and surge-only outlets
    Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
  • Boost and Trim Automatic Voltage Regulation (AVR)
    Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Building Wiring Fault Indicator
    This LED informs users of potentially dangerous wiring problems in the wall circuit.
  • Cold-start capable
    PowerShield can be turned on with a new charged battery, even if utility power is not available.
  • Dataline surge protection
    Provides protection of connected equipment from power surges on the data lines.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • Extendable Run Time
    Meet long run-time needs.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Hot-swappable batteries
    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • LCD display
    Manage the UPS locally through a text-based display that allows quick diagnosis via stored alarm conditions and events.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Power-saving outlets
    Automatically cuts power to idle equipment to conserve electricity.
  • Resettable circuit breaker
    Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
  • Safety-agency approved
    The UPS is UL1778 Listed
  • Serial connectivity
    Provides management of the UPS via a serial port.
  • Telephone dataline surge protection
    Provides protection of connected equipment from power surges traveling on telephone lines.
  • Transformer-block spaced outlets
    Protect equipment with input transformer blocks without blocking access to other receptacles.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Back-UPS Pro Features & Benefits

Manageability

LCD Status Display

Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Disconnected battery notification

Warns when a battery is not available to provide backup power.
Audible alarms

Provides notification of changing utility power and UPS power conditions
USB connection

Use your PC to access additional power protection and management features for your UPS via a USB Port.

Marketing features

Boost Automatic Voltage Regulation (AVR)

Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Serviceability

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Simple battery replacement

Increases UPS availability by allowing quick, easy battery replacement.

Availability

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Customizable voltage sensitivity

Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics.
Cold-start capable

Provides temporary battery power when the utility power is out.
Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Transformer-block spaced outlets

Protect equipment with input transformer blocks without blocking access to other receptacles.
Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.
Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Customizable voltage-transfer points

Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics.

Protection

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes .
Surge only outlets

Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Dataline surge protection

Provides protection of connected equipment from power surges on the data lines.

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
SKU: BR1500G-GR Categorii: ,

Output

Max Configurable Power (Watts)

865 Watts / 1.5kVA
Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Topology

Line interactive
Waveform type

Stepped approximation to a sinewave
Transfer Time

10 ms typical : 12 ms maximum

Input

Input frequency

50 Hz +/- 1 Hz, 60 Hz +/- 1 Hz
Input voltage range for main operations

156 – 300 Adjustable, 176 – 294V

Batteries & Runtime

Typical recharge time

8hour(s)
Nominal Battery Voltage

24 V
Replacement Battery

APCRBC124
Expected Battery Life (years)

3 – 5
RBC Quantity

1
Battery Charge Power (Watts)

23 Watts

Communications & Management

Interface Port(s)

Optional Simple Signalling RS232 cable, USB
Control panel

Multifunction LCD status and control console

Surge Protection and Filtering

Surge energy rating

441Joules
Data Line Protection

RJ11 modem/fax/DSL protection (two wire single line), RJ45 modem/fax/DSL protection (four wire dual line)

Physical

Maximum Height

301MM, 30.1CM
Maximum Width

112MM, 11.2CM
Maximum Depth

382MM, 38.2CM
Net Weight

13.0KG
Shipping weight

13.8KG
Shipping Height

390MM, 39.0CM
Shipping Width

490MM, 49.0CM
Shipping Depth

235MM, 23.5CM
SCC Codes

10731304286872

Environmental

Operating Temperature

0 – 40 °C
Operating Relative Humidity

0 – 95 %
Operating Elevation

0 – 3048meters
Storage Temperature

-15 – 45 °C
Storage Relative Humidity

0 – 95 %
Storage Elevation

0 – 15240meters
Audible noise at 1 meter from surface of unit

45.0dBA

Conformance

Approvals

BSI 1363, CE, NEMKO
Equipment protection policy

Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP
Standard warranty

2 years repair or replace, 3 years repair or replace for European Union countries

Sustainable Offer Status

RoHS

Compliant
