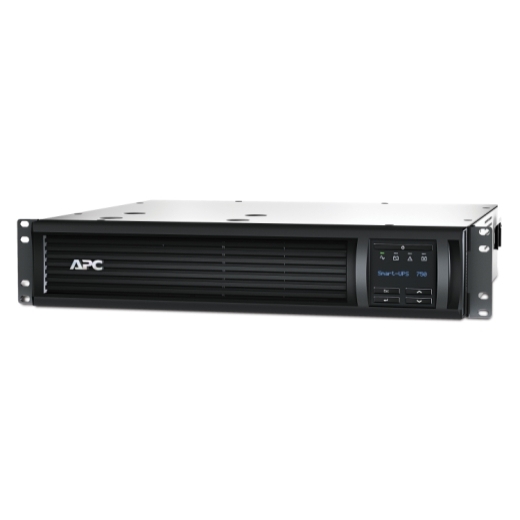

UPS APC Smart-UPS SMT line-interactive / sinusoidala 750VA / 500W 4conectori C13 rackabil 2U, baterie APCRBC123


Pretul afisat contine TVA (19%).

3.987,55 lei

Compara
Run time for load

Min-max: 50-500 W
W 5m 27s
Max. Capacity Used

100%
Output power capacity

500 Watts / 750VA
Rack Height

2U

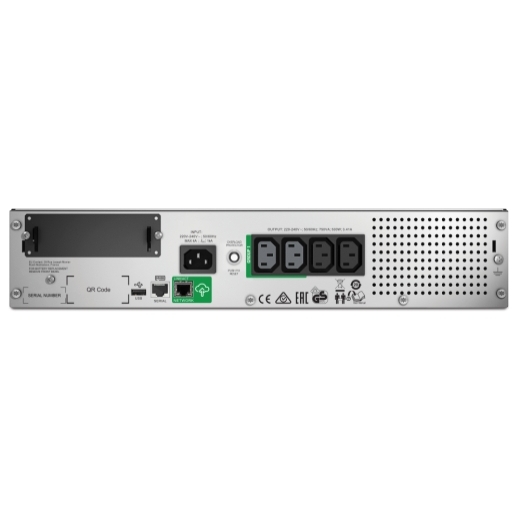

Output Connections

(4) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Nominal Output Voltage

230V
Nominal Input Voltage

230V
Input Connections

IEC 320 C14
APC Smart-UPS, Line Interactive, 750VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Documentation CD, Installation guide, Rack mounting support rails, USB cable
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • Intelligent Card Slot
    Customize UPS capabilities with management cards.
  • Intuitive LCD interface
    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartConnect
    Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Adaptability

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Serviceability

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers

Enables a quick recovery from overload events.
Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Marketing features

Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Manageability

LED status indicators

Quickly understand unit and power status with visual indicators.
Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Audible alarms

Provides notification of changing utility power and UPS conditions.
Serial connectivity

Provides management of the UPS via a serial port.
USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Availability

Disconnected battery notification

Warns when a battery is not available to provide backup power.
Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.
SKU: SMT750RMI2UC Categorii: ,

Output

Max Configurable Power (Watts)

500 Watts / 750VA
Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion

Less than 5 %
Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages

220 V, 240 V
Topology

Line interactive
Waveform type

Sine wave
Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations

151 – 302 Adjustable, 160 – 286V
Number of Power Cords

1
Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery
Typical recharge time

3hour(s)
Replacement Battery

APCRBC123
Expected Battery Life (years)

4 – 6
RBC Quantity

1
Battery Charge Power (Watts)

56 Watts

Communications & Management

Interface Port(s)

RJ-45 Serial, SmartSlot, USB
Control panel

Multifunction LCD status and control console
Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)

Optional
Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

459Joules
Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

86MM, 8.6CM
Maximum Width

432MM, 43.2CM
Maximum Depth

409MM, 40.9CM
Net Weight

16.6KG
Shipping weight

21.23KG
Shipping Height

241MM, 24.1CM
Shipping Width

584MM, 58.4CM
Shipping Depth

546MM, 54.6CM
Color

Black

Environmental

Operating Temperature

0 – 40 °C
Operating Relative Humidity

0 – 95 %
Operating Elevation

0 – 3048meters
Storage Temperature

-15 – 45 °C
Storage Relative Humidity

0 – 95 %
Storage Elevation

0 – 15240meters
Audible noise at 1 meter from surface of unit

42.0dBA
Online thermal dissipation

46.0BTU/hr

Conformance

Approvals

CE, EAC, RCM, TÜV, VDE
Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant
