Descriere
Lifecycle
- Obsolete Date 31-12-2099
- End of support date 31-12-2104
Specifications
- PoE capability 124 W Class 4
- Input voltage 100 – 127 / 200 – 240 VAC
- Warranty Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration
- Weight 7.21 lb
- Product Dimensions (metric) 4.39 x 25.4 x 25.4 cm
- Memory and processor ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
- Power Consumption 150.2 W maximum, 11.7 W idle
- Management features Aruba Instant On Portal, Web browser, SNMP Manager
- Switching capacity 20 Gbps
- Throughput 14.88 Mpps, maximum
- Ports 8 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports
- Weight 1.16 kg
- Product Dimensions (imperial) 1.73 x 10 x 10 in
Quickspecs
Overview

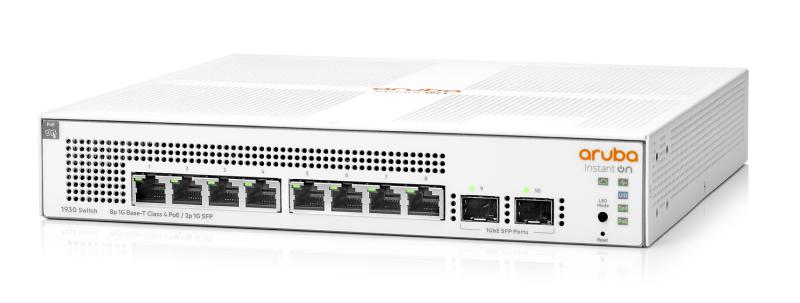

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.
What’s new
- Option to manage your switches through local web GUI.
- Limited Lifetime Warranty.
- Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
- Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
- 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity.
- Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Features
Deliver High PerfomanceManagement security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
The switch series is covered by the Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.
Simplify Network Deployment and Management for Small OrganizationsThe series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
Keep Your Business Protected with Integrated Security FeaturesThe Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
