Barracuda CloudGen Firewall Appliance F280C

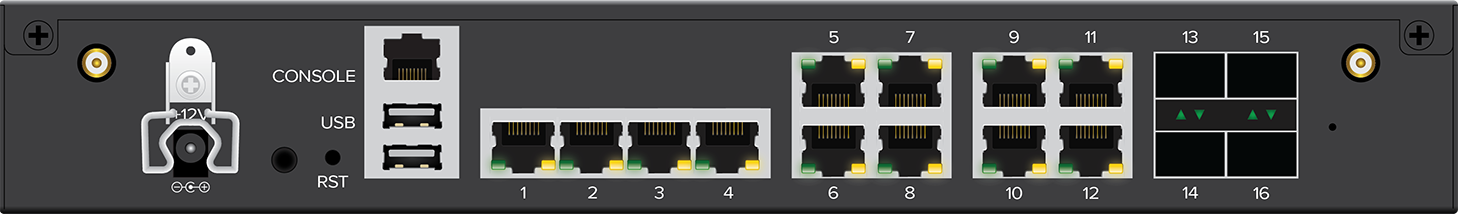

Default Port Configuration
| Port Label | OS Notation | Speed/Type | Management Port |
|---|---|---|---|
| 1 | p1 | 10/100/1000 MBit RJ45 | x |
| 2 | p2 | 10/100/1000 MBit RJ45 | |
| 3 | p3 | 10/100/1000 MBit RJ45 | |
| 4 | p4 | 10/100/1000 MBit RJ45 | dhcp |
| 5 | p5 | 10/100/1000 MBit RJ45 | |
| 6 | p6 | 10/100/1000 MBit RJ45 | |
| 7 | p7 | 10/100/1000 MBit RJ45 | |
| 8 | p8 | 10/100/1000 MBit RJ45 | |
| 9 | p9 | 10/100/1000 MBit RJ45 | |
| 10 | p10 | 10/100/1000 MBit RJ45 | |
| 11 | p11 | 10/100/1000 MBit RJ45 | |
| 12 | p12 | 10/100/1000 MBit RJ45 | |
| 13 | p13 | 1 GbE Optical Fiber SFP | |
| 14 | p14 | 1 GbE Optical Fiber SFP | |
| 15 | p15 | 1 GbE Optical Fiber SFP | |
| 16 | p16 | 1 GbE Optical Fiber SFP |
Hardware Specifications
| Interface | |
|---|---|
| RJ45 Ethernet NICs |
|
| USB 3.0 | 2 |
| Serial console | 1 [RJ45] |
| Integrated Wi-Fi (IEEE 802.11b/g/n) | Yes |
| System | |
| CPU | AMD R-Series, 4 cores |
| RAM [GB] | 4 |
| Mass Storage | |
| Type | SSD |
| Size [GB] | 80 / > 80 |
| Size, Weight, Dimensions | |
| Appliance weight [kg] | 2.3 |
| Carton weight with appliance [kg] | 4.6 |
| Appliance size: width x depth x height [mm] | 300 x 219 x 44 |
| Carton size: width x depth x height [mm] | 400 x 340 x 185 |
| Hardware | |
| Form Factor | Desktop |
| Display | – |
| Cooling | Fan |
| Power supply | Single, external |
| L-shape rack mount brackets | Included in packaging |
| Wall-mount brackets | No |
| Din-Rail mount clip | – |
| Environmental | |
| Noise emission [db/A] | < 40 |
| Operating temperature [°C] | 0 to +40 |
| Storage temperature [°C] | -20 to +70 |
| Operating humidity (non-condensing) | 10% to 95% |
| Certifications & Compliance | |
| CE emissions | Yes |
| CE electrical safety | Yes |
| FCC emissions | Yes |
| ROHS compliant | Yes |
| Power & Efficiency | |
| Power supply type | Single |
| Power type [AC/DC] | AC |
| Input rating [Volts] | 90-264 |
| Input frequency [Hz] | 50-60 |
| Auto sense | n.a. |
| Wattage / max. power draw [W] | 90 |
| Max. power draw (@ 230V) [A] | 4 |
| Max. heat dissipation [W] | 52 |
| Max. heat dissipation [BTU] | 180 |
| Energy efficiency [average] | > 89% |
