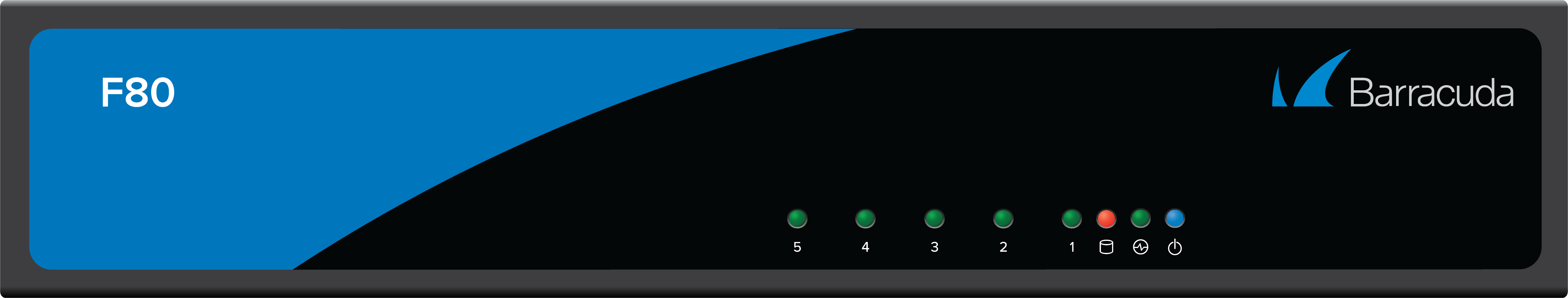

Barracuda CloudGen Firewall Appliance F80B

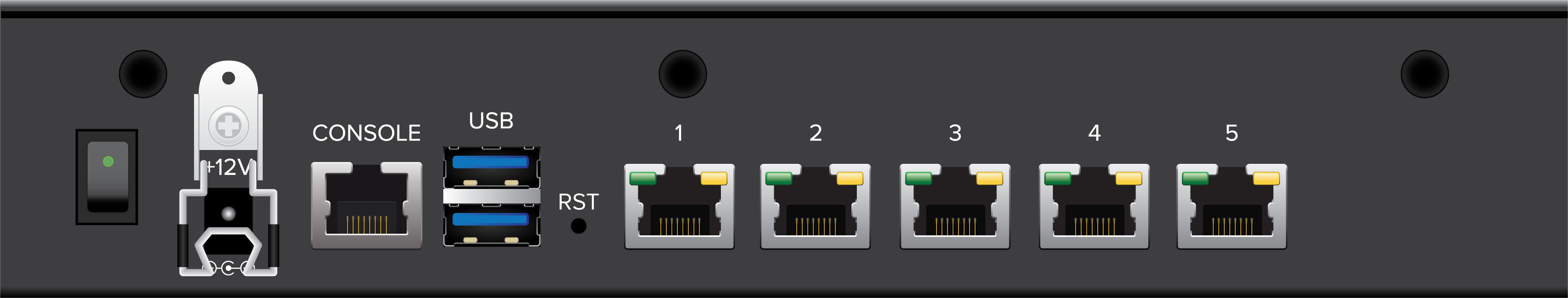

Default Port Configuration
| Port Label | OS Notation | Speed/Type | Management Port |
|---|---|---|---|
| 1 | p1 | 10/100/1000 MBit RJ45 | X |
| 2 | p2 | 10/100/1000 MBit RJ45 | |
| 3 | p3 | 10/100/1000 MBit RJ45 | |
| 4 | p4 | 10/100/1000 MBit RJ45 | |
| 5 | p5 | 10/100/1000 MBit RJ45 |
Hardware Specifications
| Interface | |
|---|---|
| RJ45 Ethernet NICs | 5×10/100/1000 |
| USB 3.0 | 2 |
| Serial console | 1 [RJ45] |
| VGA | No |
| Integrated Wi-Fi (IEEE 802.11b/g/n) | Yes |
| System | |
| CPU | Intel Apollo Lake |
| RAM [GB] | 4 |
| Mass Storage | |
| Type | SSD |
| Size [GB] | 80 or higher |
| Size, Weight, Dimensions | |
| Appliance weight [kg/lbs] | 2.0 / 4.4 |
| Carton weight with appliance [kg/lbs] | 3.5 / 7.7 |
| Appliance size: width x depth x height [in/cm] |
|
| Carton size: width x depth x height [in/cm] |
|
| Hardware | |
| Form Factor | Desktop |
| Display | – |
| Cooling | Fanless |
| Power supply | Single, external |
| L-shape rack mount brackets | Not included in packaging. Must be ordered separately. |
| Wall-mount brackets | No |
| Din-rail mount clip | – |
| USB | 2x USB 3.0 |
| Environmental | |
| Noise emission [db/A] | N/A |
| Operating temperature [°C] | 0 to +40 |
| Storage temperature [°C] | -20 to +70 |
| Operating humidity (non-condensing) | 5% to 95% |
| Certifications & Compliance | |
| CE emissions | Yes |
| CE electrical safety | Yes |
| FCC emissions | Yes |
| ROHS compliant | Yes |
| Power & Efficiency | |
| Power supply | Single, external |
| Power supply input voltage | 100 – 240 V, AC |
| Power supply output voltage | 12 V, DC |
| Power supply voltage | 50 Hz – 60 Hz |
| Power supply watts | 45 W |
| MTBF [yrs.] | > 5 |
| Max. heat dissipation [W] | 26.7 |
| Max. heat dissipation [BTU] | 90.9 |
| Energy efficiency [average] | > 93% |
| Packaging Content | |
| Appliance | Yes |
| Serial cable | No |
| Straight network cable | Yes |
| External power brick and cable | Yes |
| USB flash drive for recovery & installation | Yes |
| Wireless Antenna | Yes |
| Quick Start Guide | Yes |
