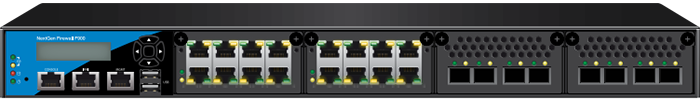

Barracuda CloudGen Firewall Appliance F900.CCC
F900 Rev. C Model CCC (32×1 GbE RJ45 Ethernet network ports)
F900 Rev. C Model CCE (16×1 GbE RJ45 Ethernet + 8×10 GbE SFP + (glass fiber) network ports)
F900 Rev. C Model CFE (8×1 GbE + 8×1 GbE SFP (glass fiber) + 8×10 GbE SFP+ (glass fiber) network ports)
F900 Rev. C Model CFEQ (8×1 GbE + 8×1 GbE SFP (glass fiber) + 4×10 GbE SFP+ (glass fiber) network ports + 2×40 GbE QSFP+ (glass fiber) network ports)
Power Supply Unit for all Upper Models
Supported Barracuda Network Module Combinations
- ET075
- ET074
- ET076
- ET085
Default Port Configuration
| Port Label | OS Notation | Speed/Type | Management Port |
|---|---|---|---|
| MGMT | MGMT | 10/100/1000 MBit RJ45 | X |
| IPMI | IPMI | 10/100/1000 MBit RJ45 | X |
| Interface | |
|---|---|
| Model CCC |
|
| Model CCE |
|
| Model CFE |
|
| Model CFEQ |
|
| USB 2.0 | 2 |
| Serial console | 1 [RJ45] |
| IPMI | 1 [RJ45] |
| System | |
| CPU | Intel Xeon 32 cores |
| RAM [GB] | 64 |
| Mass Storage | |
| Type | SSD |
| Size [GB] | 430 or higher |
| Size, Weight, Dimensions | |
| Appliance weight [lbs] | 24 |
| Appliance weight [kg] | 10.9 |
| Carton weight with appliance [lbs] | 42 |
| Carton weight with appliance [kg] | 19 |
| Appliance size: width x depth x height [in] | 17.2 x 21.625 x 1.7 |
| Appliance size: width x depth x height [mm] | 440 x 550 x 44 |
| Carton size: width x depth x height [in] | 22.5 x 30.25 x 9 |
| Carton size: width x depth x height [mm] | 572 x 770 x 229 |
| Form factor | 1U Rack Mount |
| Hardware | |
| Display | Yes |
| Cooling | Fans |
| Power supply | Dual hot swap, internal |
| Environmental | |
| Noise emission [average db/A] in idle mode, 30% fan duty at 25 [°C] ambient temperature |
45.3 |
| Noise emission [average db/A] in full loading mode, 60% fan duty at 25 [°C] ambient temperature |
62.6 |
| Noise emission [average db/A] in full loading mode, 60% fan duty at 40 [°C] ambient temperature |
73.9 |
| Operating temperature [°F] | +32 to +104 |
| Operating temperature [°C] | 0 to +40 |
| Storage temperature [°F] | -4 to +167 |
| Storage temperature [°C] | -20 to +75 |
| Operating humidity (non-condensing) | 10% to 85% |
| Certifications & Compliance | |
| CE emissions | Yes |
| CE electrical safety | Yes |
| FCC emissions | Yes |
| MTBF [system] | |
| MTBF [yrs.] | >7 |
| Power & Efficiency | |
| Power supply | Dual hot swap |
| Power supply type | Internal |
| Power type [AC/DC] | AC |
| Input rating [Volts] | 100-240 |
| Input frequency [Hz] | 50-60 |
| Auto sense | Yes |
| Wattage / max. power draw [W] | 550 |
| Max. power draw (@ 120V) [A] | 7 |
| Max. power draw (@ 230V) [A] | 3.5 |
| Estimated power consumption [W] | 322 |
| CPU’s TDP [W] | 135 |
| Max. heat dissipation [W] | ~330 |
| Max. heat dissipation [BTU] | ~1.124 |
| Energy efficiency [average] | > 88% |
