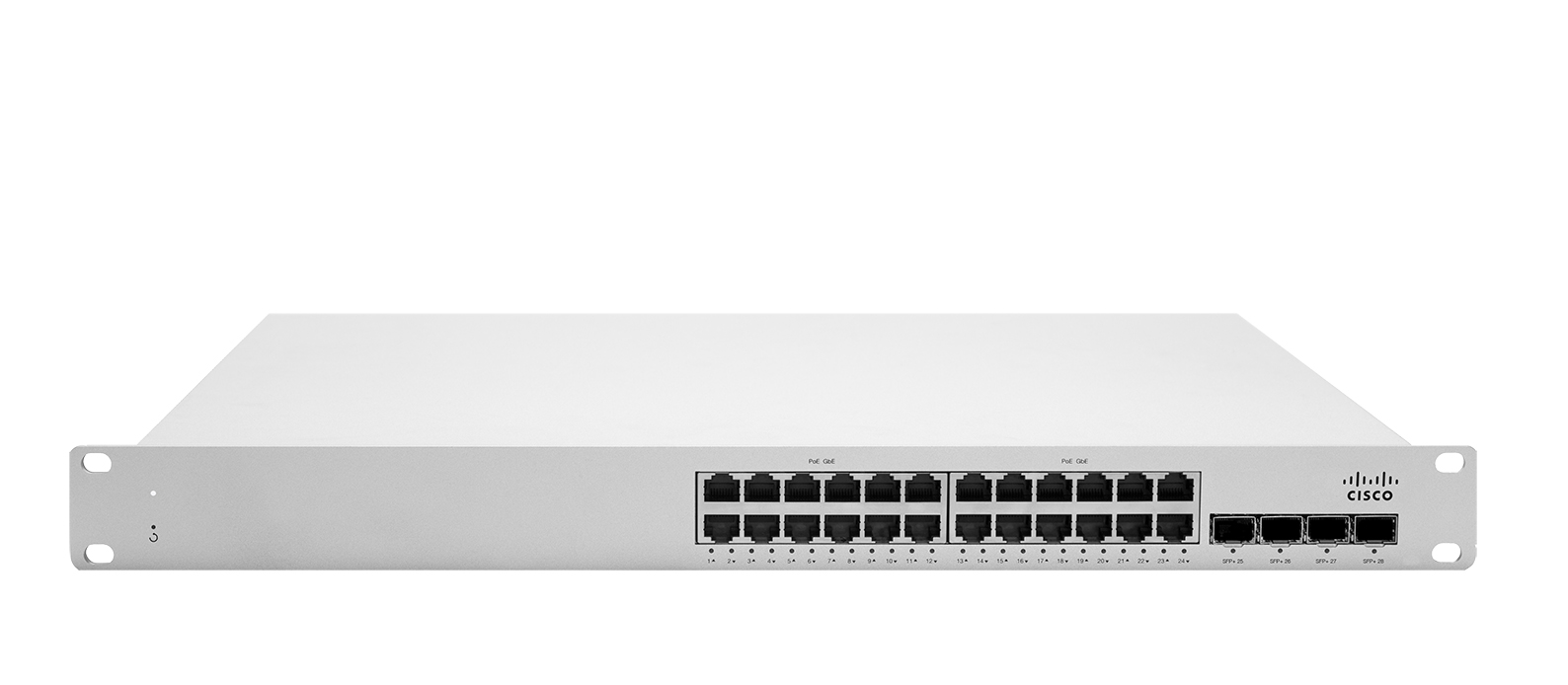

Meraki MS225-24

Meraki MS225-24 – stackable access switch

Cloud management has a number of benefits that make it easier to build networks large and small:• Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes• Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues• Role-based administration • Firmware upgrades and enhancements from the Meraki cloud• Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches• Incredible network transparency with application, operating system, client, and hostname visibility• Zero-touch provisioning for rapid deployment across sites.

Product Highlights

• Gigabit access switching with 24- and 48- port models and optional PoE+ support up to 740W

• Stacking-compatible with the MS210

• 4 x 10G SFP+ uplink interfaces on all models

• Dual stacking interfaces with up to 80 Gbps of bandwidth

• Non-blocking switch backplane with up to 176 Gbps bandwidth support

• 6 configurable QoS queues for converged voice, video, and data applications

• Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms

• Integrated mounting brackets for rack mounting

• Fanless design on select models

• Lifetime hardware warranty and advanced replacement at no additional cost.

Branch & Campus Access

• Physical stacking with support for up to 8 stack members for built-in redundancy and performance

• Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video

• Voice VLAN support for simplified VoIP deployments

• CDP, LLDP advertisement and snooping, with detailed neighbor discovery and visibility

• Port Mirroring (SPAN) support for monitoring network traffic at line rate

• IGMP Snooping to optimize network performance for multicast applications

• Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multichassis (MLAG) support on stacked switches

Network Security

• IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring

• ACL support (IPv4 & IPv6) and MAC whitelisting

• Single-Host/Multi-Domain/Multi-Host/Multi Authentication

• Change of Authorization (CoA) and RADIUS accounting support

• DHCP snooping to protect against rogue DHCP servers on the network

• Dynamic ARP Inspection to prevent man-in-the-middle attacks

• Rapid Spanning Tree, BPDU guard, root guard, loop guard, and other safeguards to help prevent misconfigurations and reduce convergence time

• Per port VLAN configuration

• Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

• Virtual Stacking helps IT admins make configuration changes to hundreds of switch ports in seconds with our intuitive dashboard interface

• Configuration templates for rapid, zero-touch provisioning and auditing of all sites

• Network Topology for automatic and interactive network mapping

• Remote cable testing, packet capture and client discovery

• Automatic and scheduled firmware upgrades for the complete network.

Converged Voice, Video and Data Environments

The Meraki switch family is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality-of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.PoE models provide power to VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

Application Layer Visibility

Meraki switches include integrated Layer 7 fingerprinting without the need to purchase additional modules or services. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting allows administrators to quickly identify individual users by device and tune network resources for optimum performance.

Unified Software Architecture

Meraki switches run the same operating system used by all of our products, which allows us to deliver a consistent user experience for network management. When connected, new MS225 switches automatically reach out to the Meraki cloud and download the most current configuration. Future updates can be user-scheduled, ensuring the network is kept up-to-date with bug fixes, security updates, and new features.

Switch ports/stacking ports

• 24 × 1G port models
• 4 × 10G SFP+ uplinks
• Stacking capable with MS210
• Stack up to 8 units
• 80 Gbps of physical stacking

Power/PoE

• Unpowered model
• MS225-24P includes 370W
• Up to 30W per port
• Supports Cisco redundant power system (RPS2300)

Hardware platform

• Reliable platform with 24/7 Meraki Support
• 1RU rack mountable
• Low noise, fanless model available
• Voice and video QoS
• Noise-blocking switch fabric

Cloud management

• Email alerts for switch management
• Remote troubleshooting tools
• Manage ports from a GUI-based dashboard
• Zero-touch provisioning
• Per-port and per-client usage statistics
• Secure, user-scheduled firmware updates

Switching capabilities

• Layer 2 with Static Routes
• Warm spare redundancy (VRRP)
• DHCP Relay
• 802.1X Authentication
• DHCP Snooping
• STP Enhancements
• IPv4 and IPv6 ACLs
