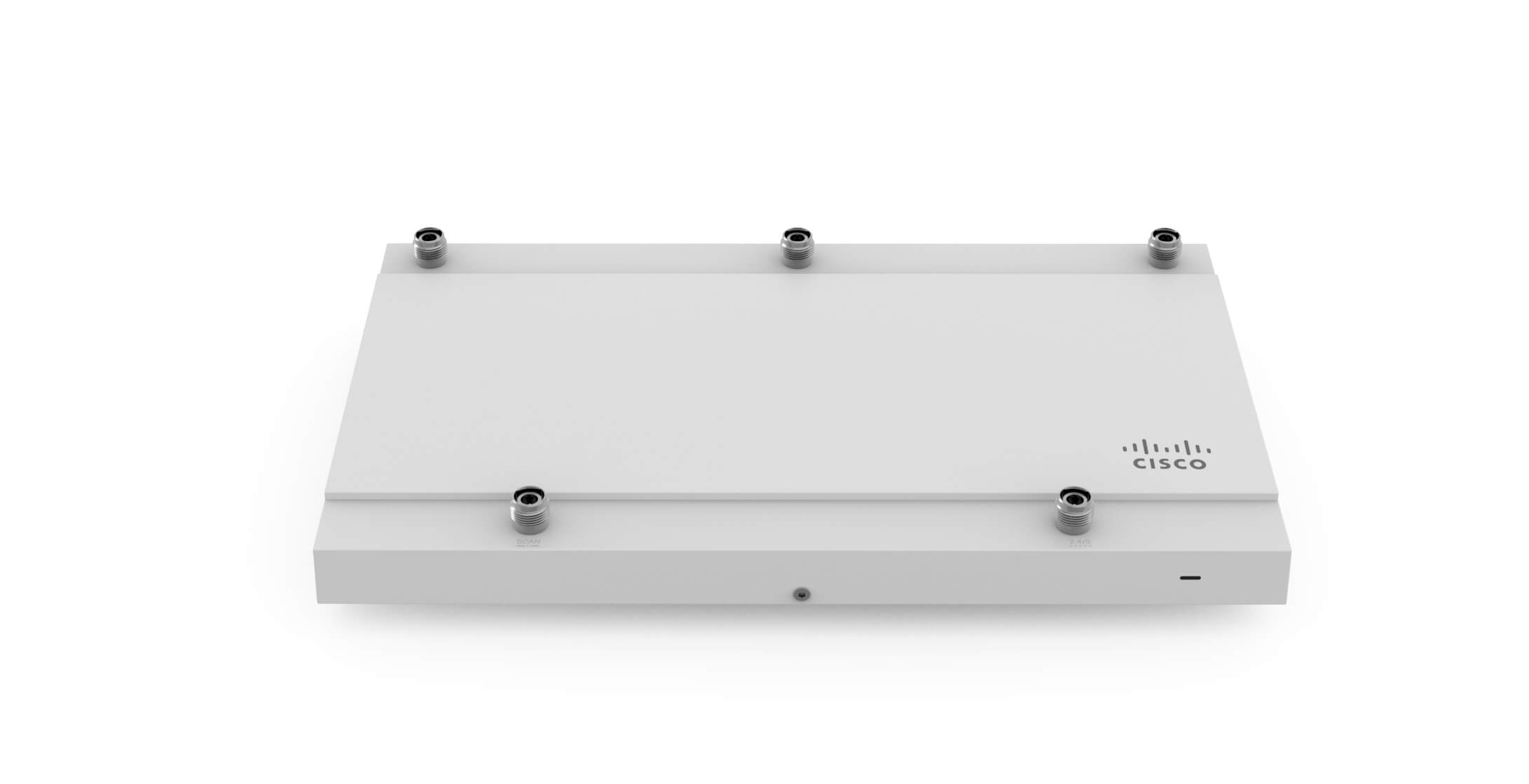

Meraki MR42E

Compara

Focused coverage and flexibility

Cloud-managed, supports auto-detectable external antennas, has dedicated security and Bluetooth Low Energy radios

The Cisco Meraki MR42E is a cloud-managed 3×3 MIMO 802.11ac Wave 2 access point. Designed for general purpose deployments in offices, schools, shops, and hotels, the MR42E provides performance, security, and manageability. The MR42E provides a maximum 1.9 Gbps frame rate with concurrent 802.11ac Wave 2 and 802.11n 3×3:3 MIMO radios, and security and spectrum visibility via a third radio dedicated to 24×7 WIDS/WIPS and automated RF optimization. An integrated Bluetooth low energy (BLE) radio delivers Beacon functionality and BLE device scanning.

Pretul afisat contine TVA (19%).

Compara

Meraki MR42E – Dual-band, 802.11ac Wave 2 access point with external antenna connectors for general-purpose Wi-Fi and focused coverage

Ideal use cases

  • General-purpose wireless LANs
  • Challenging RF scenarios
  • Focused coverage and flexible deployments
Hardware features
  • 4 radios: 2.4 GHz, 5 GHz, dual-band WIDS/WIPS, and Bluetooth Low Energy (BLE)
  • 3-stream 802.11ac Wave 2 (MU-MIMO), up to 1.9 Gbps dual aggregate frame rate
  • 5 × external RP-TNC antenna connectors
  • 1 × Gigabit Ethernet port
  • PoE: 802.3at (compatible with 802.3af)
  • AC adapter available
Cloud management
  • Network-wide visibility and control
  • Integrated analytics, reporting, and anomaly detection across networks
  • Self-provisioning for rapid deployment
  • Seamless firmware updates
  • Redundancy and security built into cloud architecture
Analytics
  • Location analytics: measure visitor capture rate, visit length, and repeat visit rate over time and across sites
  • Real-time and historical AP event data across radios
  • Global L7 traffic analytics reporting per device, network, and application
Enterprise security
  • 802.1X and native Active Directory integration
  • Air Marshal: real-time WIPS with forensics
  • Stateful Layer 3-7 firewall
  • Identity-based group policies
  • Built-in antivirus scan (NAC)
Guest access
  • 1-click secure guest access
  • Guest isolation firewall
  • Customizable splash pages
  • Integrated Facebook and Google login
  • Cisco ISE integration for guest access and BYOD posturing
RF optimization
  • Dual-concurrent radios with MU-MIMO support
  • Radios optimized for rate-vs-range performance
  • Third radio dedicated to security and RF management
  • Built-in real-time RF spectrum view
  • Cloud-based automatic RF optimization
Layer 7 traffic shaping
  • Classifies hundreds of applications
  • Create per-application bandwidth limits
  • Prioritize productivity apps
  • Restrict or block recreational traffic
Device management
  • Create device-specific firewall rules
  • Monitor and track device inventory
  • Deploy applications and enforce security settings
  • Enterprise Mobility Management (EMM) and Mobility Device Management (MDM) integration
  • The MR42E supports a variety of smart, auto-detectable external antenna that can deliver both focused, targeted coverage in challenging RF scenarios as well as broader coverage in a variety of environments, including those with very high ceilings. These antenna include panel and panel downtilt omni-directionals, wide patch, and narrow patch options.The combination of cloud management, 802.11ac Wave 2, full-time RF environment scanning, and an integrated Bluetooth technology delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, both today and tomorrow.MR42E and Meraki cloud management: a powerful combinationManagement of the MR42E is handled through the Meraki dashboard, an intuitive browser-based interface that enables rapid deployment across multiple sites without the need for time-consuming training or costly certifications. Since the MR42E is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff. 24×7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enable immediate troubleshooting so that distributed networks can be managed with a minimum of hassle. The MR42E’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.Product Highlights• External antenna connectors • 3 x 3 MU-MIMO 802.11ac Wave 2 • 1.9 Gbps aggregate dual-band frame rate• 24 x 7 real-time WIPS/WIDS and spectrum analytics via dedicated third radio• Integrated Bluetooth Low Energy Beacon and scanning radio• Enhanced transmit power and receive sensitivity• Full-time Wifi location tracking via dedicated 3rd radio• Integrated enterprise security and guest access• Application-aware traffic shaping• Self-configuring, plug-and-play deployment• Sleek, low-profile design blends into office environments• Optimized for voice and video
  • FeaturesAggregate data rate of up to 1.9 GbpsA 5 GHz 3×3:3 802.11ac Wave 2 radio and a 2.4 GHz 3×3:3 802.11ac radio offer a combined aggregate dual-band data rate of 1.9 Gbps. Supports up to 1,300 Mbps in the 5 GHz band (with 3SS/VHT80 clients) and 600 Mbps in the 2.4 GHz band (with 3SS/VHT40 clients). Technologies like transmit beamforming and enhanced receive sensitivity allow the MR42E to support a higher client density than typical enterprise-class access points, resulting in fewer required APs for a given deployment.Dedicated third radio delivers 24×7 wireless security and RF analyticsThe MR42E’s sophisticated, dedicated dual-band third radio scans the environment continuously, characterizing RF interference and containing wireless threats like rogue access points. No more need to choose between wireless security, advanced RF analysis, and serving client data: a dedicated third radio means that all three occur in real-time, without any impact to client traffic or AP throughput.Bluetooth low energy Beacon and scanningAn integrated Bluetooth low energy radio provides seamless deployment of BLE Beacon functionality and effortless visibility of BLE devices within range of the AP. The MR42E enables the next generation of location-aware applications and engagement right out of the box.Automatic cloud-based RF optimizationThe MR42E’s sophisticated, automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The real-time fullspectrum RF analysis data collected by the dedicated third radio is continuously fed back to the Meraki cloud. The Meraki cloud then automatically tunes the MR42E’s channel selection, transmit power, and client connection settings for optimal performance under the most challenging RF conditions.Secure wireless environments using 24×7 Air MarshalNo longer choose between a wireless intrusion prevention system (WIPS) and serving client data: thanks to the dedicated third radio, Air Marshal, a highly optimized built-in WIPS, scans continuously for threats and remediates them as commanded, all without disrupting client service. Alarms and optional auto-containment of rogue APs are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.Integrated enterprise security and guest accessThe MR42E features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X and Active Directory integration provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control. Meraki Teleworker VPN makes it easy to extend the corporate LAN to remote sites, without requiring all clients and devices to have client VPN software. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.Application-aware traffic shapingThe MR42E includes an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.Voice and Video optimizationIndustry standard QoS features are easy to configure like Wireless Multi Media (WMM) Access Categories, 802.1p, and DSCP.Low-profile, environmentally friendly designDespite its robust feature set, the MR42E is packaged in a sleek, low-profile enclosure that blends seamlessly into any environment. Energy-saving components and intelligent power management techniques deliver best-in-class energy efficient performance and mean that pollution, material utilization, and your electric bill are kept to a minimum.Self-configuring, self-optimizing, self-healingWhen plugged in, the MR42E automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. The MR42E then self-optimizes, determining the ideal channel, transmit power, and client connection parameters. As necessary, it will also self-heal, responding automatically to switch failures and other errors.Advanced analyticsDrill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with journey tracking through location analytics. View visitor numbers, dwell time, repeat visit rates, and track trends. View real-time, per-radio spectrum analytics to troubleshoot nearby interference. Analyze AP events, client utilization, and bandwidth usage on a per-radio basis. Fully customize your analysis with raw data available via simple APIs.
SKU: MR42E-HW Categorii: , ,
  • Radios
    • 2.4 GHz 802.11b/g/n/ac client access radio
    • 5 GHz 802.11a/n/ac Wave 2 client access radio
    • 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
    • 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
      Concurrent operation of all three radios
    • Supported frequency bands (country-specific restrictions apply):
      • 2.412-2.484 GHz
      • 5.150-5.250 GHz (UNII-1)
      • 5.250-5.350 GHz (UNII-2)
      • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
      • 5.1725-5.825 GHz (UNII-3)
  • Antenna
    • List of compatible antennas: MA-ANT-3-A5/B5/C5/D5/E5/F5
    • Individual antenna elements for each radio
  • 802.11ac Wave 2 & 802.11n Capabilities
    • 3×3 multiple input, multiple output (MIMO) with four spatial streams
    • SU-MIMO and MU-MIMO support
    • Maximal ratio combining (MRC) and beamforming
    • 20 and 40 MHz channels (802.11n), 20, 40, 80, and 160 MHz channels (802.11ac Wave 2)
    • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
    • Packet aggregation
  • Power
    • Power over Ethernet: 37-57 V
      (802.3at required; functionality-restricted 802.3af mode supported)
    • Alternative 12 V DC input
    • Power consumption: 20 W max (802.3at)
    • Power over Ethernet injector and DC adapter sold separately
  • Interfaces
    • 1× 10/100/1000 BASE-T Ethernet (RJ45)
    • 1× DC power connector (5.5 mm × 2.5 mm, center positive)
    • Five external RP-TNC antenna connectors
  • Mounting
    • All standard mounting hardware included
    • Desktop, ceiling and wall mount capable
    • Ceiling tile rail (9/16, 15/16, or 1 1/2″ flush or recessed rails), assorted cable junction boxes
    • Bubble level on mounting cradle for accurate horizontal wall mounting
  • Physical Security
    • Two security screw options included
    • Kensington lock hard point
    • Concealed mount plate with anti-tamper cable bay
  • Environment
    • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
    • Humidity: 5 to 95%
  • Physical Dimensions
    • 10.59″ × 6.3″ × 1.06″ (269 mm × 160 mm × 27 mm), not including deskmount feet or mount plate
    • Weight: 41.27 oz (1.17 kg)
  • Security
    • Integrated Layer 7 firewall with mobile device policy management
    • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
    • Flexible guest access with device isolation
    • VLAN tagging (802.1Q) and tunneling with IPSec VPN
    • PCI compliance reporting
    • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
    • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
    • TKIP and AES encryption
    • Enterprise Mobility Management (EMM) and Mobile Device Management (MDM) integration
    • Cisco ISE integration for guest access and BYOD posturing
  • Quality of Service
    • Advanced Power Save (U-APSD)
    • WMM Access Categories with DSCP and 802.1p support
    • Layer 7 application traffic identification and shaping
  • Mobility
    • PMK, OKC, and 802.11r for fast Layer 2 roaming
    • Distributed or centralized Layer 3 roaming
  • Analytics
    • Embedded location analytics reporting and device tracking
    • Global L7 traffic analytics reporting per network, per device, and per application
  • LED Indicators
    • 1 power/booting/firmware upgrade status
  • Regulatory
    • RoHS
    • For additional country-specific regulatory information, please contact Meraki Sales
  • Warranty
    • Lifetime hardware warranty with advanced replacement included
  • Compliance
    • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
  • Ordering Information
    • MR42E-HW: Meraki MR42E Cloud Managed 802.11ac Wave 2 AP
    • MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)
    • MA-INJ-5-XX: Cisco Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
    • MA-ANT-3-A5
    • MA-ANT-3-B5
    • MA-ANT-3-C5
    • MA-ANT-3-D5
    • MA-ANT-3-E5
    • MA-ANT-3-F5
    • Note: Meraki access point license required
