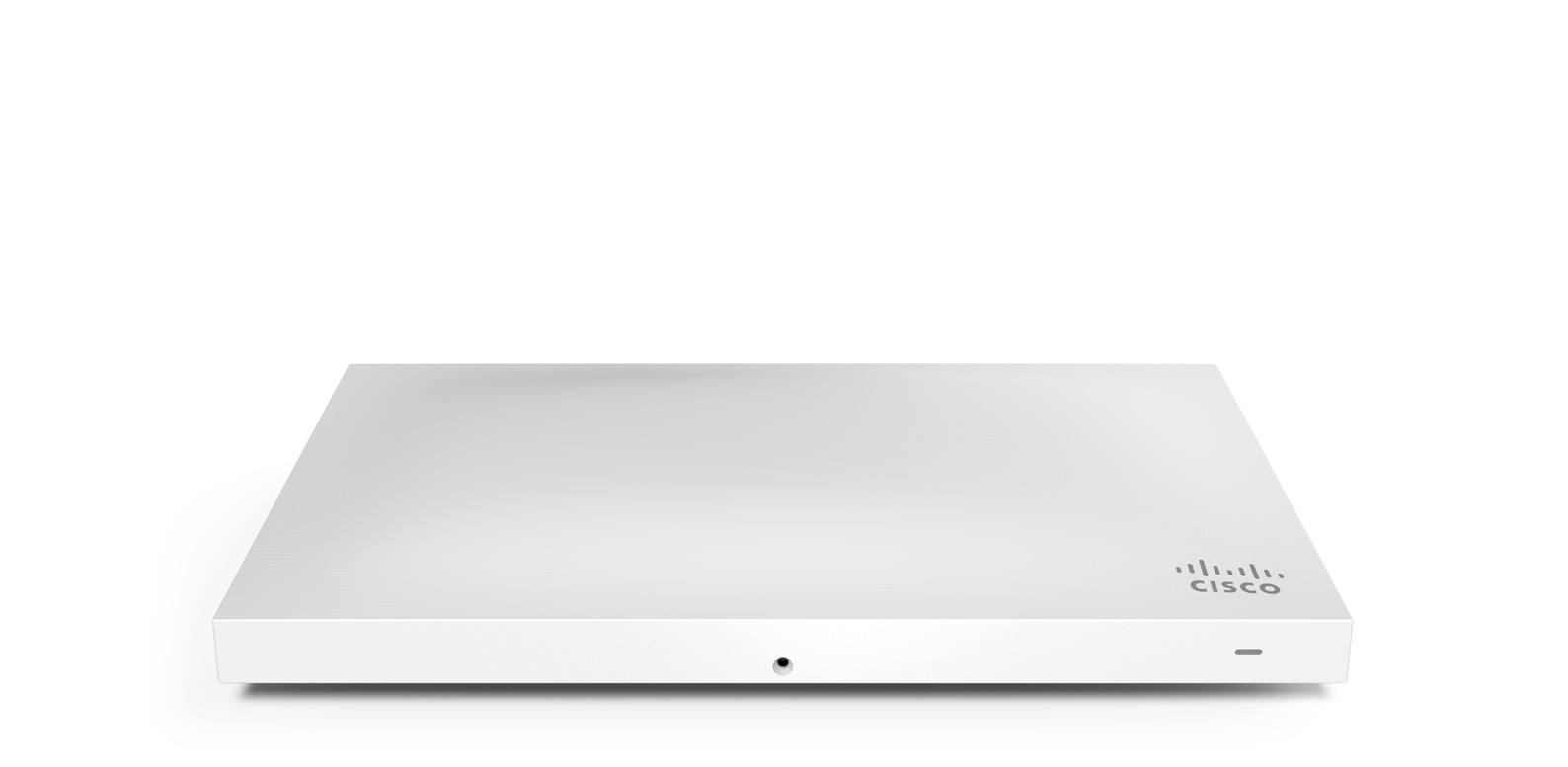

Meraki MR52

Compara

802.11ac Wave 2 with Dedicated Security & Bluetooth Beacons

Cloud management, 802.11ac performance, and a dedicated security radio

The Cisco Meraki MR52 is a cloud-managed 4×4:4 802.11ac Wave 2access point with 160 MHz channels and MU-MIMO support.Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR52 offers high performance, enterprise-grade security, and simple management.

Pretul afisat contine TVA (19%).

Compara

Meraki MR52 – Dual-band 802.11ac Wave 2 access point with separate radios dedicated to security, RF management and Bluetooth

Ideal use cases

  • Performance-critical wireless LANs
  • High-density environments
Hardware features
  • 4 radios: 2.4 and 5 GHz, dual-band WIDS/WIPS, and Bluetooth Low Energy (BLE)
  • 4-stream 802.11ac Wave 2, up to 2.5 Gbps
  • 2 × Gigabit Ethernet port
  • PoE: 802.3at
  • AC adapter available
Cloud management
  • Network-wide visibility and control
  • Self-provisioning for rapid deployment
  • Automatic reporting
  • Seamless firmware updates
Enterprise security
  • 802.1X and native Active Directory integration
  • Air Marshal: real-time WIPS with forensics
  • Stateful Layer 3-7 firewall
  • Identity-based group policies
  • Built-in antivirus scan (NAC)
Guest access
  • 1-click secure guest access
  • Guest isolation firewall
  • Customizable splash pages
  • Integrated Facebook login
RF optimization
  • Dual-concurrent radios with MU-MIMO support
  • Radios optimized for rate-vs-range performance
  • Third radio dedicated to security and RF management
  • Built-in real-time RF spectrum view
  • Cloud-based automatic RF optimization
Layer 7 traffic shaping
  • Classifies hundreds of applications
  • Create per-application bandwidth limits
  • Prioritize productivity apps
  • Restrict or block recreational traffic
Presence location analytics
  • Measure visitor capture rate, visit length, and repeat visit rate
  • Measure visitor trends over time and compare performance across locations
Device management
  • Create device-specific firewall rules
  • Monitor and track device inventory
  • Deploy applications and enforce security settings
  • The MR52 provides a maximum of 2.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, anda fourth integrated radio delivers Bluetooth Low Energy (BLE)scanning and Beaconing.With the combination of cloud management, high performancehardware, multiple radios, and advanced software features, the MR52 makes an outstanding platform for the most demanding of uses – including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.MR52 and Meraki cloud management: A powerful comboManagement of the MR52 is through the Meraki cloud, with anintuitive browser-based interface that enables rapid deployment without time-consuming training or costly certifications. Since the MR52 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.24×7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enableimmediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle.The MR52’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.Product Highlights• 4×4 160 MHz MU-MIMO 802.11ac Wave 2 • 2.5 Gbps dual-radio aggregate frame rate• 24×7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio• Integrated Bluetooth Low Energy Beacon and scanning radio• Enhanced transmit power and receive sensitivity• Full-time WiFi location tracking via dedicated 3rd radio• Integrated enterprise security and guest access• Application-aware traffic shaping• Optimized for voice and video• Self-configuring, plug-and-play deployment• Sleek, low-profile design blends into office environmentsMR52Dual-band 802.11ac Wave 2 access point with separate radios dedicated to security, RF management, and BluetoothDatasheet | MR52FeaturesDual–radio aggregate frame rate of up to 2.5 Gbps*A 5 GHz 4×4:4 radio supporting 160 MHz channel widths and a 2.4 GHz 4×4:4 radio supporting 40 MHz channel widths offer a combined dual–radio aggregate frame rate of 2.5 Gbps*, with up to 1,733 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 800 Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR52 to support a higher client density than typical enterprise-class access points, resulting in fewer APs for a given deployment. Multi User Multiple Input Multiple Output (MU-MIMO)With support for the 802.11ac Wave 2 standard, the MR52 offers MU-MIMO for more efficient transmission to multiple clients. Especially suited for enviroments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultanously. This increases the total network perfomance and the improves the end user experience.Link AggregationThe two Ethernet uplinks on the MR52 can be configured for link aggregation, which relieve any existing uplink bottlenecks created by 802.11ac Wave 2.Bluetooth Low Energy Beacon and scanning radioAn integrated fourth radio for Bluetooth Low Energy (BLE) provides seamless deployment of BLE Beacon functionality and effortless visibility of BLE devices. The MR52 enables the next generation of location-aware applications while futureproofing your deployment, ensuring it’s ready for any new customer engagement strategies.Automatic cloud-based RF optimizationThe MR52’s sophisticated and automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The RF data collected by the dedicated third radio is continuously fed back to the Meraki cloud. This data is then used to automatically tune the channel selection, transmit power, and client connection settings for optimal performance under even the most challenging RF conditions.Integrated enterprise security and guest accessThe MR52 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X and Active Directory integration provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.Third radio delivers 24×7 wireless security and RF analyticsThe MR52’s dedicated dual-band scanning and security radio continually assesses the environment, characterizing RF interference and containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data – a dedicated third radio means that all functions occur in real-time, without any impact to client traffic or AP throughput.Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integrationMeraki Systems Manager natively integrates with the MR52 to offer automatic, context-aware security. You can use Systems Manager’s self-service enrollment to rapidly deploy MDM without installing additional equipment, and then dynamically tie firewall and traffic shaping policies to client posture.Application-aware traffic shapingThe MR52 includes an integrated layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications while setting limits on recreational traffic like peer-to-peer and video streaming. Policies can be implemented per network, per SSID, per usergroup, or per individual user for maximum flexibility and control.Voice and video optmizationsIndustry standard QoS features are built in and easy to configure. Wireless Multi Media (WMM) access categories, 802.1p, and DSCP standards support all ensure important applications get priorotized correctly, not only on the MR52, but on other devices in your network. Unscheduled Automatic Power Save Delivery (U-APSD) ensures minimal battery drain on wireless VoIP phones.Self-configuring, self-maintaining, always up-to-dateWhen plugged in, the MR52 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. If new firmware is required, this is retireved by the AP and updated automatically. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.Advanced analyticsDrill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with journey tracking through location analytics. View vistor numbers, dwell time, repeat visit rates, and track trends. Fully customize your analysis with raw data available via simple APIs.
SKU: MR52-HW Categorii: , ,
  • Radios
    • 2.4 GHz 802.11b/g/n client access radio
    • 5 GHz 802.11a/n/ac client access radio
    • 2.4 & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
    • 2.4 GHz Bluetooth radio with Bluetooth Low Energy (BLE) and Beacon support
    • Concurrent operation of all four radios
    • Max aggregate frame rate 2.5 Gbit/s
    • Supported frequency bands (country-specific restrictions apply):
      • 2.412-2.484 GHz
      • 5.150-5.250 GHz (UNII-1)
      • 5.250-5.350 GHz (UNII-2)
      • 5.470-5.600, 5.660-5.725 (UNII-2e)
      • 5.725-5.825 GHz (UNII-3)
  • Antenna
    • Integrated omni-directional antennas (5 dBi gain at 2.4 GHz, 6.2 dBi gain at 5 GHz)
    • Individual antenna elements for each radio
  • 802.11ac Wave 2 & 802.11n Capabilities
    • 4×4 multiple input, multiple output (MIMO) with four spatial streams
    • SU-MIMO and MU-MIMO support
    • Maximal ratio combining (MRC) & beamforming
    • 20 & 40 MHz channels (802.11n); 20, 40, 80, and 160MHz channels (802.11ac)
    • Up to 256-QAM on both 2.4 & 5 GHz
    • Packet aggregation
  • Power
    • Power over Ethernet: 37 – 57 V (802.3at required; functionality-restricted 802.3af mode supported)
    • Alternative 12V DC input
    • Power consumption: 21 W max (802.3at)
    • Power over Ethernet injector and DC adapter sold separately
  • Interfaces
    • 2 × 10/100/1000Base-T Ethernet (RJ45)
    • 1 × DC power connector (5.5mm x 2.5mm, center positive)
  • Mounting
    • All standard mounting hardware included
    • Desktop, ceiling, and wall mount capable
    • Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes
    • Bubble level on mounting cradle for accurate horizontal wall mounting
  • Physical Security
    • Two security screw options (included)
    • Kensington lock hard point
    • Concealed mount plate with anti-tamper cable bay
  • Environment
    • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
    • Humidity: 5 to 95% non-condensing
  • Physical Dimensions
    • 10.56” x 6.38” x 1.58” (268.2 mm x 162.0 mm x 38.8 mm), not including deskmount feet or mount plate
    • Weight: 28.9 oz (820g)
  • Security
    • Integrated Layer 7 firewall with mobile device policy management
    • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
    • Flexible guest access with device isolation
    • VLAN tagging (802.1q) and tunneling with IPsec VPN
    • PCI compliance reporting
    • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
    • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
    • TKIP and AES encryption
    • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
    • Cisco ISE integration for Guest access and BYOD Posturing
  • Quality of Service
    • Advanced Power Save (U-APSD)
    • WMM Access Categories with DSCP and 802.1p support
    • Layer 7 application traffic identification and shaping
  • Mobility
    • PMK, OKC, and 802.11r for fast Layer 2 roaming
    • Distributed or centralized Layer 3 roaming
  • Analytics
    • Embedded location analytics reporting and device tracking
    • Global L7 traffic analytics reporting per network, per device, & per application
  • Warranty
    • Lifetime hardware warranty with advanced replacement included
  • Ordering Information
    • MR52-HW
      Meraki MR52 Cloud Managed 802.11ac AP
    • MA-PWR-30W-XX
      Meraki AC Adapter for MR Series (XX = US, EU, UK, or AU)
    • MA-INJ-4-XX
      Cisco Meraki 802.3at PoE Injector (XX = US, EU, UK, or AU)

Note: Meraki access point license required.
