QNAP NAS TS-432X-4G (TS-432X-4G)
Pretul afisat contine TVA (19%).
4.197,96 lei

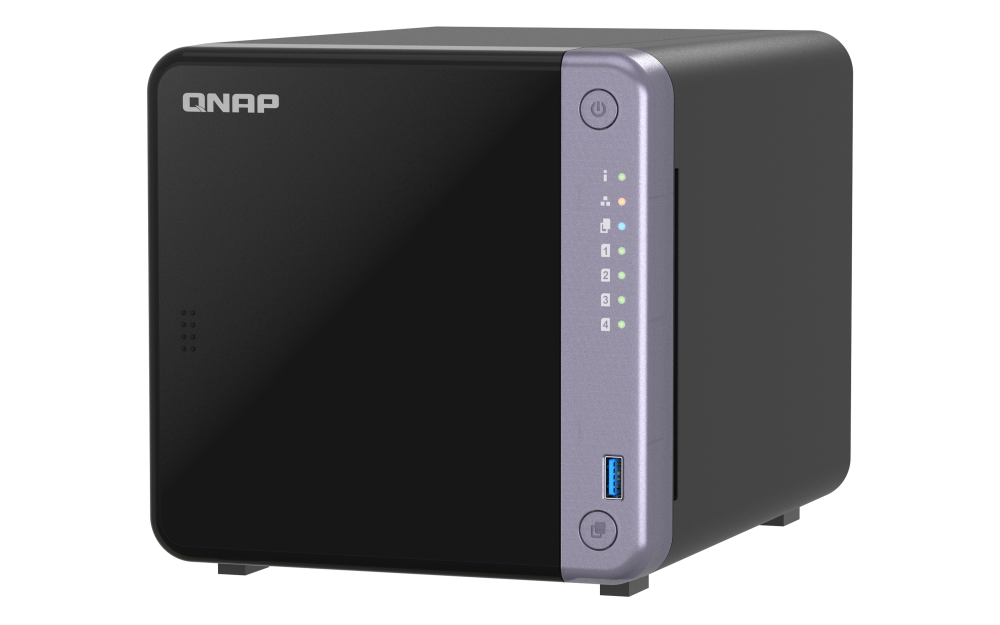

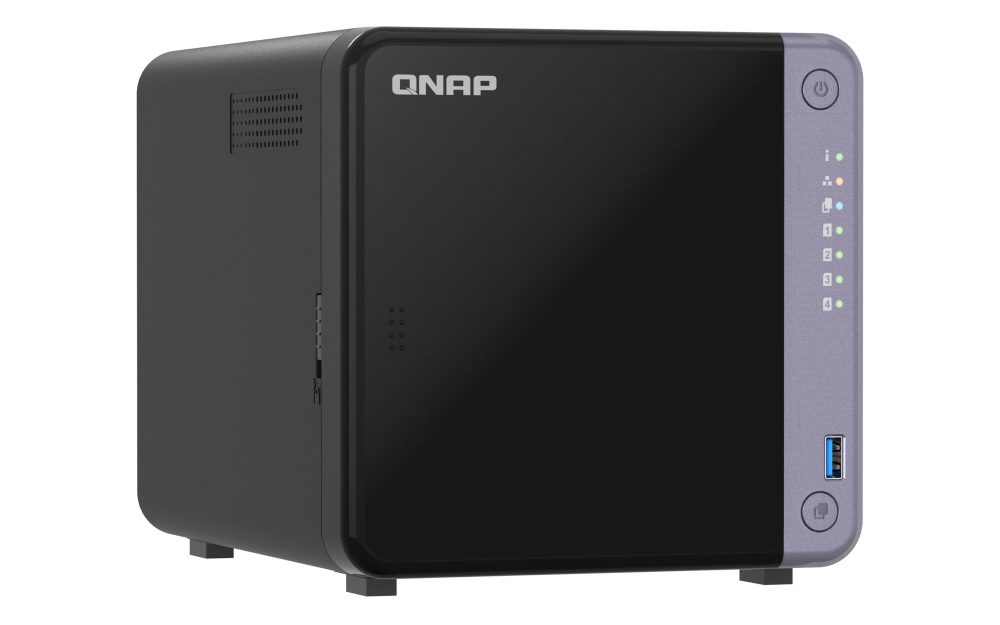

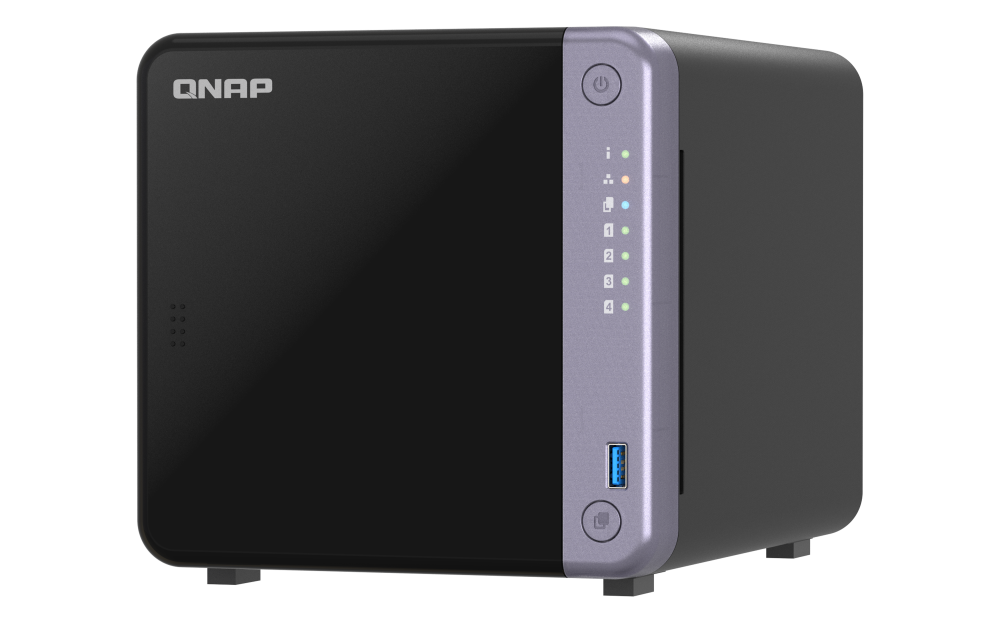

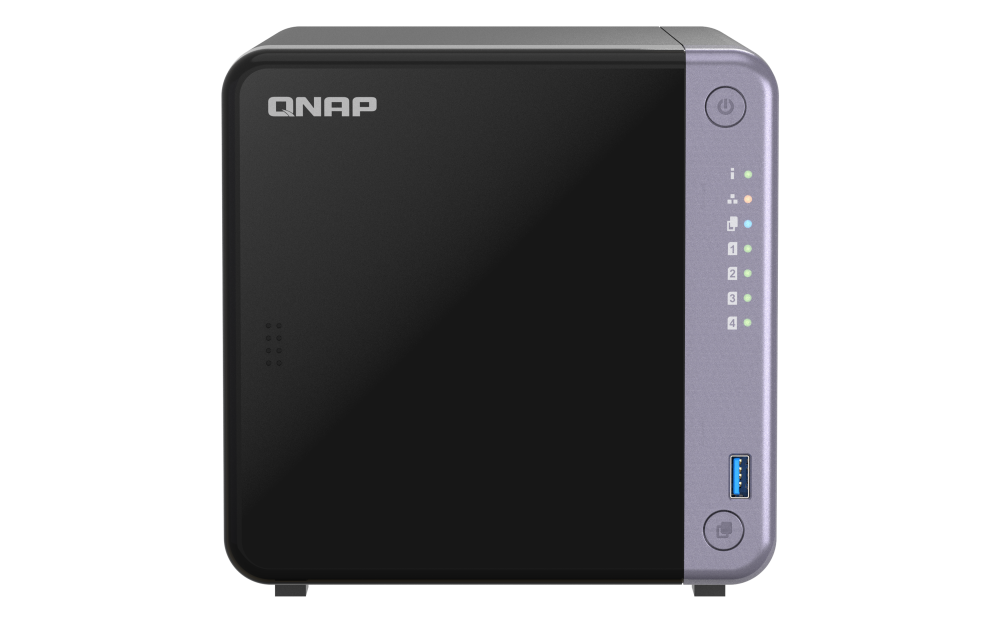

QNAP NAS TS-432X-4G
Unlock the potential of 4-bay storage capacity and harness the speed of 10GbE with the TS-432X! This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Cost-effective yet powerful, the TS-432X streamlines workflow efficiency without exceeding your budget.
-
Quad-core for multitasking
Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)
-
High-speed 10GbE SFP+
Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.
-
2.5GbE is a must!
Leverage SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports to increase bandwidth and access speed.
-
PCIe Gen 3 expandability
Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots to the NAS for more I/O potential.
-
Faster USB transfer and backup
Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.
-
Centralized backup and snapshot protection
Easily back up different types of data and endpoints and create snapshots regularly to prevent ransomware threats.
High-performance yet energy-efficient quad-core processor
The TS-432X adopts a quad-core processor with built-in 4 GB of memory, offering excellent read/write performance at low power consumption, making it reliable for hosting versatile NAS applications in office.
| SMB Sequential Throughout 1MB (2 x 2.5GbE) | Read
590 MB/s
|
Write
590 MB/s
|
|---|---|---|
| SMB Sequential Throughout 1MB (1 x 10GbE) | Read
1181 MB/s
|
Write
887 MB/s
|
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS：TS-432X
OS：QTS 5.1.7.2743
Volume type：
4 x Samsung 860 PRO 512GB, RAID 5, thick volume
Client PC：
Windows Server 2019, Intel Core i7-6700 3.4GHz, 64GB RAM, w/ QXG-10G2SFCX4 & QXG-2G4T-I225
IOmeter : 16MB, 30-sec ramp up time, 3-min seq. run time, 16 workers, 4-outstanding
Multiply bandwidth for streamlined tasks
By using the built-in network ports or installing an expansion card, you can maximize the network bandwidth of the TS-432X by aggregating two or more same-speed network ports. Choose from the following options according to your needs:
SMB Multichannel：
Suited for small/home office users. Fulfill multiplied available bandwidth between NAS and directly-connected clients to accelerate file transfer speed.
Port Trunking：
Recommended for midsized to large businesses where IT infrastructure involves network switches and multiple end-users.
The actual performance may vary depending on factors such as hardware configuration and network environment.
TS-432X-4G
| CPU | AnnapurnaLabs, an Amazon company Alpine AL524, 4-core, 2.0GHz |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | |
| Encryption Engine | |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x SODIMM DDR4 Support ECC memory |
| Flash Memory | 512 MB (Dual boot OS protection) |

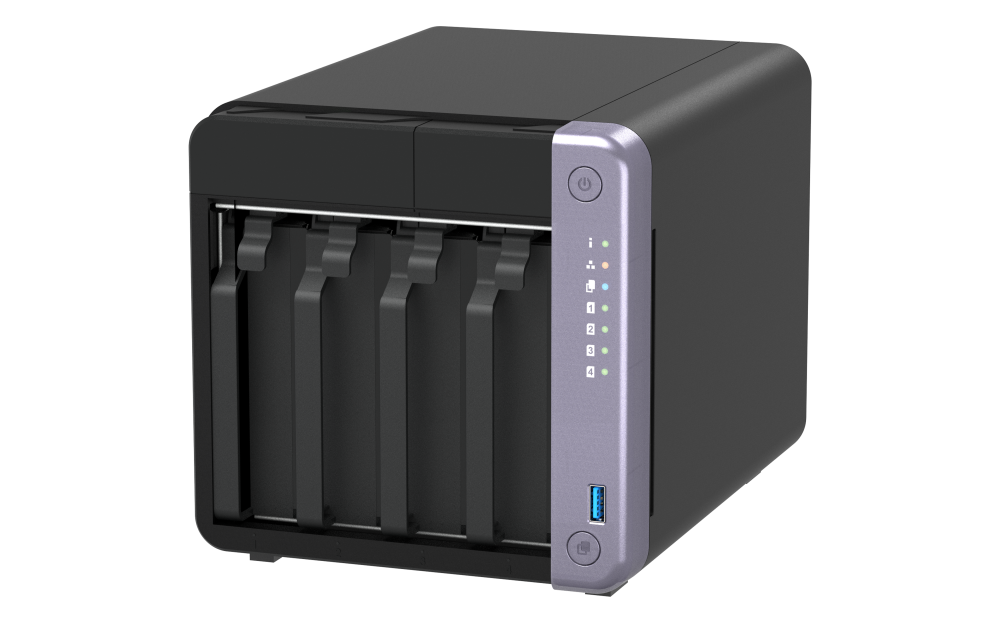

| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |

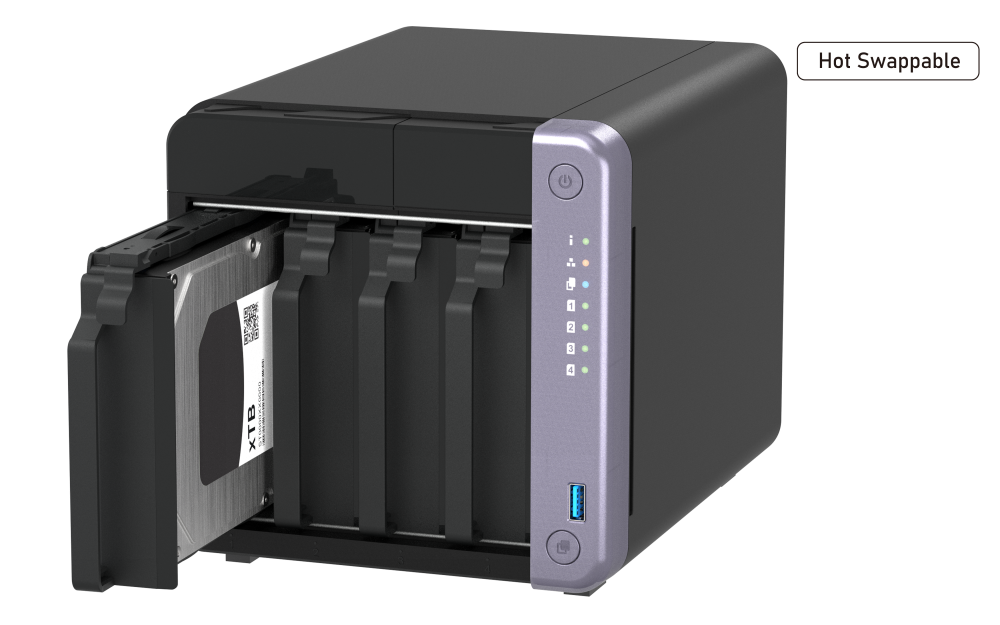

| Hot-swappable | |
| SSD Cache Acceleration Support | |

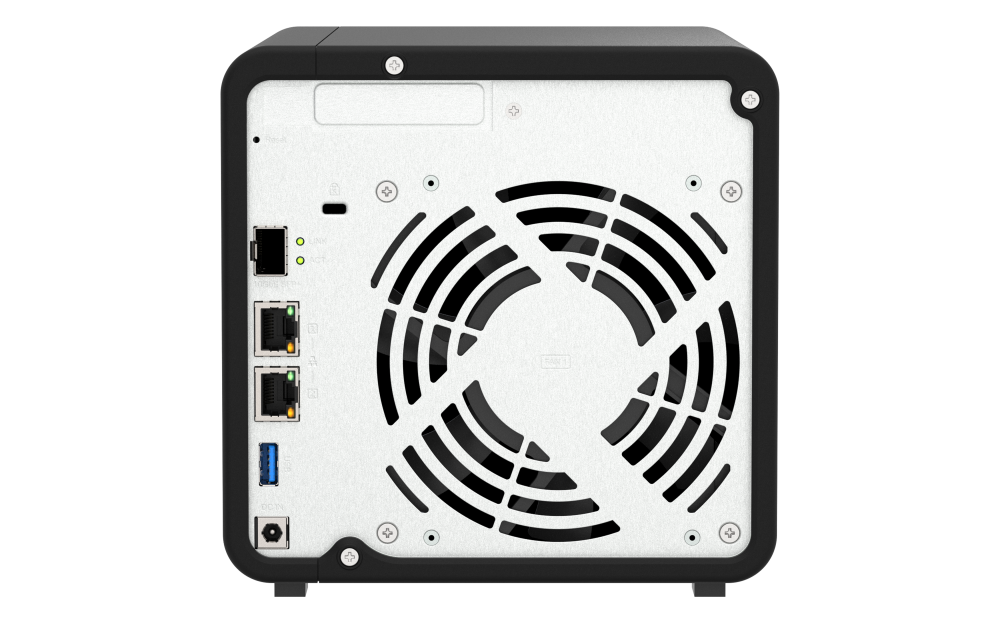

| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2(2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x4 Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
|
| USB 3.2 Gen 1 port | 2 |
| Form Factor | Tower |
| LED Indicators | Power, Status, LAN, USB, HDD1-4 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 165 × 170 × 226.5 mm |
| Weight (Net) | 1.99 kg |
| Weight (Gross) | 4.8 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 90W adapter (12VDC), 100-240VAC |
| Fan | 1 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 2 |
