Integrating an application server and storage server into one system, the next-generation TDS-16489U R2 also provides you with the option of using either QES (an enterprise-grade OS that provides efficient and reliable storage for mission-critical tasks) or QTS (a feature-rich OS for storage and diverse application servers). Whether being used as a file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the flexible TDS-16489U R2 with dual CPU and dual OS options is your ideal solution.
Install PCIe cards to increase application performance, including 40GbE/ 25GbE/ 10GbE adapters, Fibre Channel cards, and graphics cards.
QES ensures data integrity with self-healing and uses end-to-end checksums to detect and correct silent data corruption.
QES supports data deduplication and compression to optimize storage utilization and data access performance.
QES supports near-limitless snapshots and SnapSync for efficient remote backup & disaster recovery solution.
Reliable storage for virtualization. QTS supports hosting VMs and containers; QES supports block-level storage for OpenStack® environments.
QTS supports software-defined SSD over-provisioning to improve write performance for IOPS-demanding applications.
Multiplied computing power with dual Intel® Xeon® E5 processors
Extraordinary hardware design. Immense, reliable & innovative
Convertible NAS that supports two operating systems
The TDS-16489U R2 provides flexibility to choose from two operating systems, enabling businesses to deploy an operating system that fits their needs and goals in different stages.
QES supports deduplication and compression to maximize VDI storage performance
QES streamlines remote backups with nearly limitless snapshots and SnapSync
QES supports up to 65,535 snapshots for iSCSI LUN and shared folders (if 1 snapshot is created every hour, 24 snapshots per day, then up to 7 years worth of snapshots can be created without needing to delete any), and replicates snapshots to remote servers by using block-level SnapSync. In the event of a primary site failure, the complete and efficient SnapSync assists businesses to resume essential services in the shortest time.
VMware SRM
Business Continuity
Copy-on-write technology makes QES snapshot creation almost instantaneous without affecting ongoing data writing. SnapSync supports incremental backups, real-time deduplication and compression. The source TDS-16489U R2 will perform deduplication before compressing the metadata to reduce synchronized data and save bandwidth resources.
Ideal backup NAS for Enterprise ZFS NAS
QES is OpenStack Ready to explore out-of-the-box enterprise cloud services
QTS – Empowering storage for the high-speed era
Ideal for flexible virtualization deployment, application expandability, and storage optimization with auto-tiered architecture.
Build an affordable Fibre Channel SAN environment
TS supports comprehensive virtualization for utmost IT efficiency
Application server virtualization
Use Virtualization Station to host multiple virtual machines for various services, for example Microsoft® Exchange Server, Microsoft® SQL Server®, and Active Directory Windows Server®. Big Data tools such as Apache™ Hadoop® and Apache Spark™ can also be easily deployed on the TDS-16489U R2 with Container Station or Virtualization Station.
Application server virtualization
Use Virtualization Station to host multiple virtual machines for various services, for example Microsoft® Exchange Server, Microsoft® SQL Server®, and Active Directory Windows Server®. Big Data tools such as Apache™ Hadoop® and Apache Spark™ can also be easily deployed on the TDS-16489U R2 with Container Station or Virtualization Station.
The TDS-16489U R2 supports VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016 virtualization applications. VMware® VAAI and Microsoft® ODX are also supported to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and the QNAP vSphere Client plug-in and QNAP SMI-S provider add enhanced operational efficiency and management in virtualization applications.
QTS fulfills complete backup planning
The TDS-16489U R2 provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.
Hybrid Backup Sync
Consolidates backup, restoration and synchronization for easily transferring NAS data to local, remote and cloud storage spaces. The new Hybrid Backup Sync 3.0 adds support for data deduplication at the source, multiple version backup, and TCP BBR to improve backup efficiency.
Hybrid Backup Sync
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable method for protecting data in the face of the growing threat of ransomware. The TDS-16489U R2 supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.
Volume & LUN snapshots
VM backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TDS-16489U R2 is perfect for backing up virtual machines.
VM backup
Use QVR Pro to deploy a professional security surveillance system

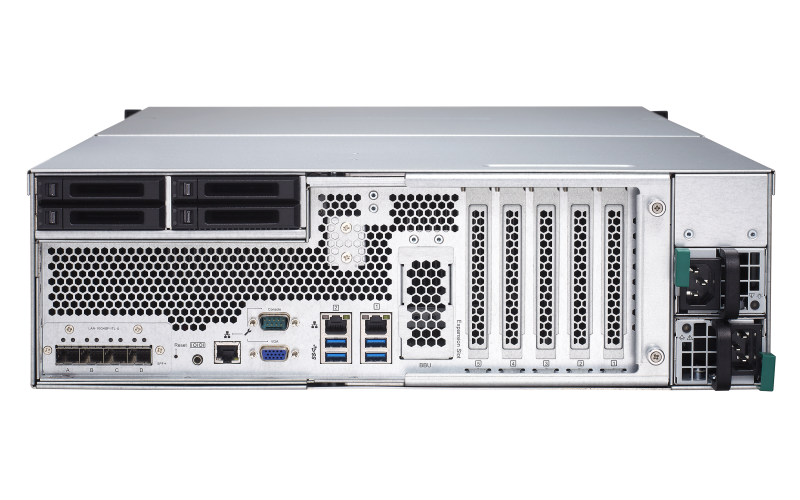

- Dual Intel® Xeon® E5 processors. Drive performance-demanding computing capabilities to handle complex, high-demanding workloads more efficiently.
- Quad-channel DDR4 RDIMM/LRDIMM RAM. With 16 memory slots supporting up to 1 TB RAM. Install memory in multiples of 4 to take advantage of quad-channel RAM.
- 3x SAS 12Gb/s controllers.Ensures each controller can fully utilize the total bandwidth of each drive to optimize performance and reliability.
- 4x 2.5-inch SSD slots. Support SSD caching to improve IOPS performance. Also as QES system drive ports.
- IPMI (Intelligent Platform Management Interface). IPMI operates independently from the operating system to allow administrators to remotely manage the TDS-16489U R2 even when the system is powered down. IPMI provides a web-based management interface, supports remote power-down and rebooting, and hardware monitoring and logs.
- 4x 10GbE SFP+ ports. Fully support 10GbE networks, ideal for running bandwidth-demanding applications such as virtualization, large file sharing, and fast backup/restoration.
- 4x PCIe slots. Supports 40GbE/ 25GbE/ 10GbE network cards, graphics cards, QM2 cards, Fibre Channel adapters*, and 12Gb/s SAS HBA for greater application potential.
|
QES
QNAP Enterprise System |
QTS
QNAP NAS System |
| OS Kernel |
FreeBSD |
Linux |
| File system |
ZFS |
Ext4 |
| CIFS/FTP/NFS/iSCSI |
|
|
| Snapshot upper limit |
65535 |
1024 |
| Remote disaster backup and recovery |
SnapSync |
Snapshot Replica |
| Deduplication |
|
Deduplicate backup data at the source
(Hybrid Backup Sync 3.0) |
| Real-time data compression |
|
|
| End-to-end data integrity |
|
|
| Qtier (Auto Tiering) |
|
|
Application services
(Virtualization Station, Web Server, multimedia service, etc.) |
|
|
| App Center |
|
|
| Application scenarios |
• Reliable storage for mission-critical business tasks.
• The perfect backup storage for the dual-controller Enterprise ZFS NAS. |
• High-performance storage with SSD and Qtier technology for maximized cost-efficiency.
• Storage for hosting virtual machines and containerized applications.
• Application server using QTS services (Web server, VPN server, FTP server, etc). |
Abundant I/O capabilities with PCIe expansion
The TDS-16489U R2 features four PCIe slots (3 x PCIe Gen3 x8, 1 x PCIe Gen3 x16) that allow for the usage of various expansion cards to expand application potential.
40GbE/25GbE/10GbE NICs
Enable lightning-fast throughout for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration. Empower the NAS with iSER support by installing Mellanox® SmartNICs.
Network expansion cards (Mellanox)
Fibre Channel adapters
Create a Fibre Channel SAN for tackling IOPS-demanding applications and workflows that require reliable, on-time data delivery.
Note: Fibre Channel support is available from QTS 4.4.1 (and later), but not supported by QES.
QM2 cards
Add M.2 SATA or NVMe SSDs for caching to optimize NAS performance.
Graphics cards
Accelerate QTS video processing and transcoding, GPGPU computing, and support GPU-passthrough to VMs.
12 Gb/s SAS HBA
Designed for connecting the TDS-16489U R2 to REXP expansion units for up to 1 PB storage capacity.
Built for data-intensive applications and demanding workloads, the TDS-16489U R2 is powered by dual Intel® Xeon® E5-2600 v4 multi-core processors, up to 1 TB quad-channel DDR4 2133MHz RDIMM/LRDIMM RAM (Long-DIMM x16), and 12Gb/s SAS drive support to deliver outstanding performance for data transmission and applications. While providing the power to handle CPU-demanding tasks and everyday application needs such as virtualization, video surveillance, and media streaming, the TDS-16489U R2’s unrivaled performance provides the ability for businesses to improve their Big Data computing to explore greater business opportunities.
QES supports block-based data deduplication to reclaim storage used by redundant/repeated data and in-line data compression to shrink file sizes. Both functions optimize storage utilization and provide cost savings for businesses when using SSDs (particularly for all-flash storage deployment). In VDI environments where there could be over 90% duplicate data from OS images and applications that are spread over virtual desktops, deduplicated virtual desktops become easier to be cached to achieve optimal virtual desktop performance.
SnapSync supports VMware Site Recovery Manager (SRM) that offers enterprise-class remote backup & disaster recovery solution for virtual applications. With the Storage Replication Adapter (SRA) for SRM, operation overheads of the ESXi® server can be offloaded to the QNAP storage array to accelerate and simplify virtual machine backup and restoration.
When running the QES operating system, the TDS-16489U R2 is the perfect backup storage for the dual-controller Enterprise ZFS NAS using SnapSync. If the Enterprise ZFS NAS unexpectedly stops, the TDS-16489U R2 can immediately recover all the backed up data locally to take over operations and services with minimized RTO (Recovery time objectives) and RPO (Recovery Point Objective). It prevents the downtime required to restore data from a remote QTS NAS/rsync server back to the recovered Enterprise ZFS NAS.
QES supports OpenStack® Cinder and Manila file sharing services. With the QNAP Cinder Driver, the TDS-16489U R2 can provide block-level storage space to virtual machines. It not only accelerates the deployment of virtual machines and enhances virtual machine image access efficiency through iSCSI, but it is also easier to integrate into commercial cloud storage platforms.
Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell®, ATTO® or QNAP Fibre Channel card has been installed in the TDS-16489U R2, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.
The TDS-16489U R2 supports VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016 virtualization applications. VMware® VAAI and Microsoft® ODX are also supported to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and the QNAP vSphere Client plug-in and QNAP SMI-S provider add enhanced operational efficiency and management in virtualization applications.
Attain enterprise-grade SSD performance levels from affordable consumer SSDs
QTS supports software-defined SSD extra over-provisioning (OP) that allows you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TDS-16489U R2, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs to enjoy faster file backups, optimized virtualization applications, and smoother multimedia workflows.
SSD extra over-provisioning
Scenario File Server Web, Application, Virtualization Server Synchronization, Video Editing Surveillance, Backup, Log Server Business Critical Database
SSD Configuration Qtier Qtier Read Write Cache Write-Only Cache SSD RAID
SSD RAID RAID 6 RAID 10 RAID 5 RAID 10 RAID 10
SSD OP 10% 20% 20% 30% 30%
QNAP’s QVR Pro surveillance solution supports over 5,000 IP cameras, including all of the standard fisheye cameras available on the market. There are more advanced features for fully unleashing the potential of fisheye cameras: allowing a single fisheye camera’s image to be simultaneously viewed in nine channels from different angles, and cross-platform hardware-accelerated decoding for fisheye camera images. QVR Pro ensures higher surveillance performance for greater security while providing deployment flexibility and budget-savings. 8 free channel licenses are provided, and can be expanded up to 128 channels* by purchasing additional licenses.
