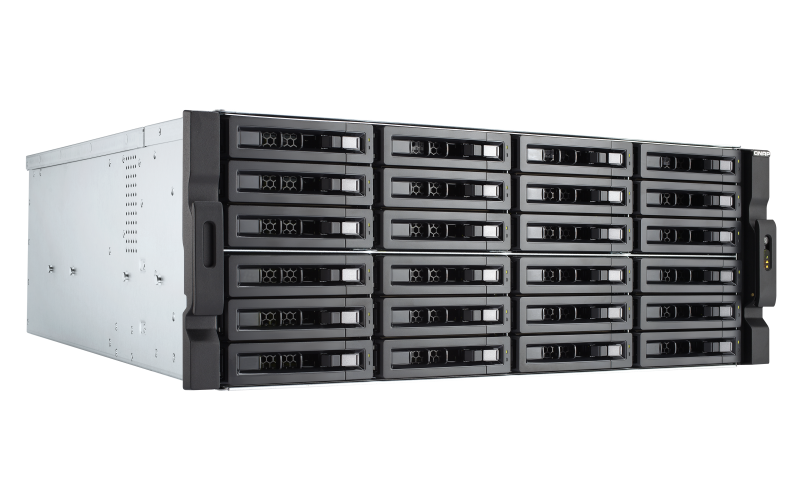

QNAP TS-2477XU-RP-2700-16G

Powered by AMD’s powerful Ryzen™ processor, the TS-2477XU-RP is capable of boosting virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.1 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-2477XU-RP. The TS-2477XU-RP also features a redundant power supply to ensure maximum system uptime.

Top-class hardware engineering with high I/O expandability

The hardware design of the TS-2477XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance AMD Ryzen™ 5 2600 or AMD Ryzen™ 7 2700 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-2477XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-2477XU-RP.

Dual-channel Memory to deliver power-smart performance

The TS-2477XU-RP supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-2477XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-2477XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

Fuel GPU-accelerated computing with an 800W power supply

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power compared with other hardware components. The TS-2477XU-RP provides PCIe slots and an 800W power supply with a 8-pin (6+2) power connector and a 6-pin power connector to support an AMD Radeon™ or NVIDIA® graphics card for use in boosting imaging processing in QTS and to improve the performance of virtual machines via GPU passthrough.

Run multiple graphics cards in your TS-2477XU-RP to unleash greater potential

Featuring four PCIe slots, the TS-2477XU-RP allows you to insert up to two high-end graphics cards that work cooperatively to deliver incredible computing performance over a single graphics card. It helps lead to greater potential for accelerating NAS video processing and GPU computing, empowering data-intensive AI machine learning, and realizing GPU-passthrough to VMs.

GPU-accelerated NAS for AI machine learning

The TS-2477XU-RP provides cutting-edge capabilities to help organizations develop cost-efficient AI-oriented Big Data storage solutions. Combined with a high-end graphics card and QNAP’s “QuAI” AI developer package, the AMD Ryzen-based TS-2477XU-RP can be leveraged to quickly build, train, and optimize AI model-based services, beneficial for exploring intelligent services and greater business value.

SSD caching and auto tiering enable 24/7 optimized storage efficiency

Performance & reliability. Your wise choice.

The TS-2477XU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.

RAID 50/60

When using a NAS with over 6 disk bays, RAID 50/60 not only provides greater data protection and random write performance than a single RAID 5/6, but also maximizes usable storage compared to RAID 10.

USB 3.1

USB 3.1 Gen 2 (10Gbps) provides speeds up to 10Gb/s (double the speed of USB 3.0) to greatly boost data transfer performance. The TS-2477XU-RP comes with a USB 3.1 10Gbps Type-C and a Type-A port, providing greater flexibility and ensuring future-proof compatibility with new USB devices.

Central management

Designed for IT administrators, QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.

Optimized performance for VMware Virtualization with iSER

With the built-in dual 10GbE ports that natively features Mellanox® ConnectX-4, the TS-2477XU-RP supports the iSCSI Extensions for RDMA (iSER) protocol to boost data transfer performance of the TS-2477XU-RP as VMware® ESXi storage and to reduce the CPU load of the ESXi server. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.

Block-based iSCSI LUN: Ideal choice for virtualization storage

The TS-2477XU-RP supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-2477XU-RP provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell®, ATTO® or QNAP Fibre Channel card has been installed in the TS-2477XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

All-in-one server to host virtual machines and containers

Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.

Virtualization Station

Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station

Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub Registry®. It supports container import/export and permission settings. It’s easy deployment, portable, and efficient.

Host multiple virtual QTS systems on a single NAS

Upgrade your IT environment with QNAP’s fast and affordable 10GbE Switch!

QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments.

QTS–Intelligent, intuitive and creative NAS operating system

With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. The built-in App Center with hundreds of install-on-demand apps realizes far more extensive NAS functionality. QTS breaks the barriers of devices, platforms, and geography to bring you optimized cloud experiences and incorporates advanced features.

Optimized collaboration with seamless file sharing and sync

Complete backup planning

The new QVR Pro surveillance solution

QNAP’s new QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on TS-2477XU-RP and leverage the advantages of scalability and storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live viewing and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use a USB webcam as an ONVIF network camera with the QUSBCam2 app.

Flexible and economical storage expansion
