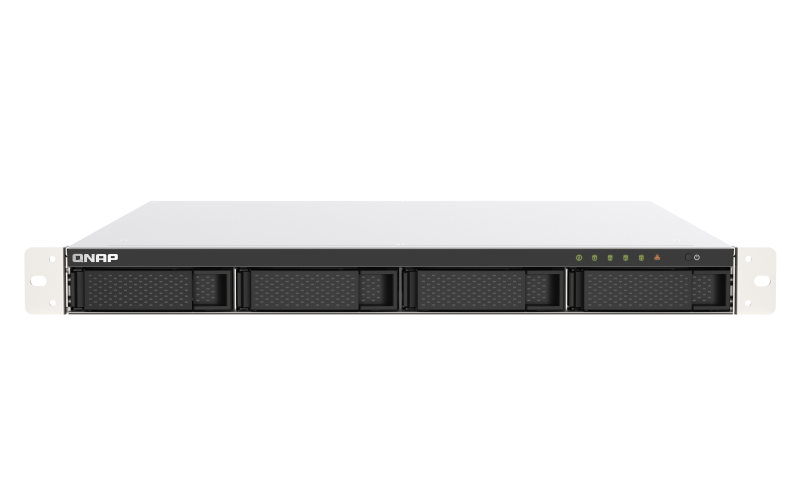

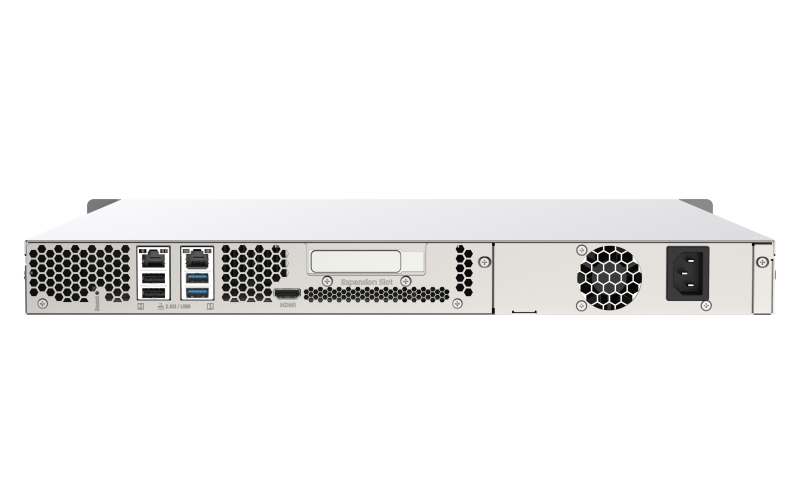

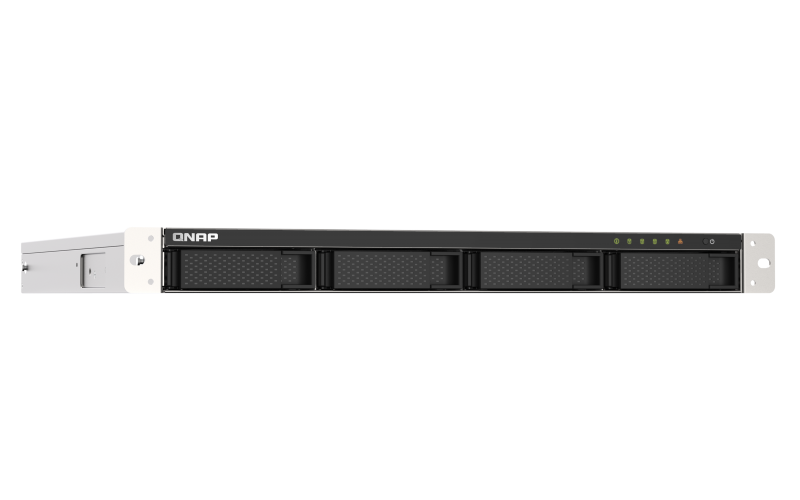

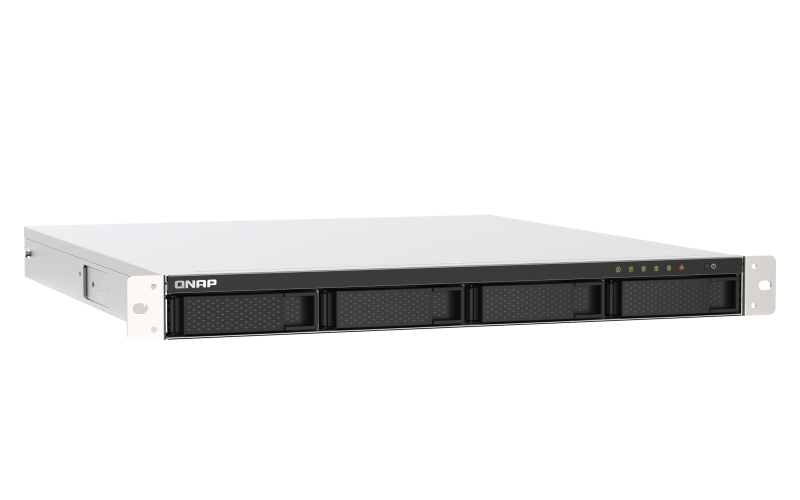

QNAP TS-453DU-4G

Compara

ZFS-based, 24-bay U.2 NVMe all-flash storage built for high-performance and low-latency virtualized workloads, data centers, and 8K streams

Pretul afisat contine TVA (19%).

6.387,60 lei

Compara

TS-453DU-4G

CPU Intel® Celeron® J4125 4-core/4-thread processor, burst up to 2.7 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel® HD Graphics 600
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding
System Memory 4 GB SODIMM DDR4 (1 x 4 GB)
Maximum Memory 8 GB (2 x 4GB)
Memory Slot 2 x SODIMM DDR4

When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s

The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot Optional via a PCIe adapter
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
Wake on LAN (WOL)

Only the 2.5GbE port
Jumbo Frame
PCIe Slot 1
Slot 1: PCIe Gen 2 x2

PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 2.0 port 2
USB 3.2 Gen 1 port 2
USB 3.2 Gen 2 (10Gbps) Port Optional via a PCIe adapter
HDMI Output 1, HDMI 1.4b
Form Factor 1U Rackmount
LED Indicators HDD 1-4, Status, LAN, Expansion, Power
Buttons Power, Reset
Dimensions (HxWxD) 43.3 × 482.6 × 483.9 mm
Weight (Net) 6.6 kg
Weight (Gross) 8.54 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W (x1), 100-240V
Power Consumption: HDD Sleep Mode 17.209 W
Power Consumption: Operating Mode, Typical 32.038 W

Tested with drives fully populated.
Fan 2 x 40mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 1500
SKU: TS-453DU-4G Categorii: , , ,
  1. Operating System QTS 5.0.1
    Supported Client Operating Systems
    1. Apple Mac OS 10.10 or later
    2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
    3. IBM AIX 7, Solaris 10 or later UNIX
    4. Microsoft Windows 7, 8, 10 and 11
    5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
    Supported Browsers
    1. Apple Safari (latest version)
    2. Google Chrome (latest version)
    3. Microsoft Edge (latest version)
    4. Mozilla Firefox (latest version)
    Supported Languages Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
    Storage Pool
    SED Storage Pool
    Maximum Pool size 308 TB
    Maximum number of storage pool 128
    Volume Type Thick, Thin, Static
    Maximum volume size 250 TB

    Note: At least 4 GB RAM is required.
    Maximum number of volume 128
    Maximum shared folder size 250 TB
    Maximum number of shared folder 512
    JBOD Expansion
    VJBOD / VJBOD Cloud
    iSCSI Service
    Fibre Channel Service
    LUN Type Thick, Thin
    File-based iSCSI LUN
    Block-based iSCSI LUN
    Maximum LUN size 250 TB

    Note: At least 4 GB RAM is required.
    Maximum number of targets LUN 256
    LUN feature
    1. LUN Mapping (LUN can be moved between iSCSI and FC)
    2. LUN Masking
    3. WWPN Aliases Import/Export
    4. FC Port Group
    5. FC Port Binding
    6. Multipath IO (MPIO)
    7. Online LUN capacity expansion
    8. LUN snapshot
    9. LUN snapshot replication and clone
    Auto Tiering

    Requires minimum 2GB memory.
    RAID Type
    1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
    2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
    3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
    4. 2-bay: JBOD, Single, RAID 0, 1
    RAID Group

    To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
    RAID Level Migration
    RAID Expansion (by adding Disk)
    RAID Expansion (by replacing bigger Disks)
    Storage Pool Expansion (by adding RAID Group)
    RAID Hot Spare Global, Local
    RAID Sync/Rebuild/Scrubbing
    Internal drive EXT4
    External drive EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

    Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
    Disk, Enclosure Locate
    Disk S.M.A.R.T. Scan
    Disk S.M.A.R.T. Data Migration
    Ironwolf Health Management
    Secure Erase
    SSD Trim
    SSD Life Estimation
    Disk Roaming
    Disk Standby
    Volume Snapshot
    LUN Snapshot
    Maximum Snapshot (Per System) Check maximum number of snapshots of your NAS
    Maximum Snapshot (Per Volume / LUN) Check maximum number of snapshots of your NAS
    Minimum Snapshot Interval 5 minutes
    Snapshot Retention Policy
    Self-serve Snapshot Recovery
    Application Consisted Snapshot
    Snapshot Full Clone
    Snapshot Replica / Vault
    SSD read-only Cache
    SSD read-write cache
    SSD write-only cache
    SSD Cache Maximum Size Check your QNAP NAS cache capacity and RAM requirements
    SSD Cache RAID 0, 1, 5, 6, 10
    SSD profiling tool
    External Device Management
    Mount Smart Phone (MTP)
    External RAID Device (QNAP so on) Management (External Device Mode)
    External RAID Device (QNAP so on) Management (NAS Mode)
    File Server
    1. File sharing across Windows, Mac, and Linux/UNIX
    2. Microsoft networking (CIFS/SMB)
    3. Apple networking (AFP)
    4. NFS version 3/4 services
    FTP Server
    1. QuFTP
    2. FTP, SFTP and TFTP protocols
    3. FTP over SSL/TLS (explicit FTPS)
    4. FXP support
    Maximum FTP connection 1024
    File Station (Web)
    Object Storage
    Local user account 4,096
    Local group account 512
    Domain user/group account 200,000
    Domain Security
    Domain Controller
    Shared folder permission
    Advanced folder permission , (AFP, CIFS/SMB, FTP, and File Station)
    Windows ACL , (CIFS/SMB)
    User quota
    Group quota
    Folder quota , (Snapshot shared folder)
    Home folder
    Resource Monitor
    SNMP V2, V3
    Network recycle bin
    1. Recover files deleted using AFP, CIFS/SMB, and File Station
    2. Automatic cleanup and file type filter
    System Log & Notification Center Log recording: 3,000 event per second
    Smart Fan
    Schedule on/off
    Internet protocol IPv4, IPv6
    Virtual Switch
    Port trunking , (7 modes)
    VLAN
    DHCP Server
    DDNS (Dynamic Domain Name Service)
    Network access protection with auto-blocking SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
    Security Counselor
    Malware Remover
    AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP
    2-step verification
    Allow/Deny List
    Access Protection
    Service binding
    Firewall
    vSphere Web Client Plug-in
    VMware vSphere VAAI for iSCSI
    VMware vSphere VAAI for NAS
    Windows ODX
    Windows/VMware Snapshot Agent
    HTTP/HTTPS Connections TLS 1.0/1.1/1.2/1.3
    Supports WebDAV Connection
    Supports Virtual Hosts 32
    Qsync

    Note: At least 1 GB RAM is required.
    [Qsync] Management Mode User customization, Central
    [Qsync] Qsync client supported platforms Windows, macOS, Ubuntu, Android, and iOS
    [Qsync] Maximum number of version control 64
    HybridMount

    Note: At least 1 GB RAM is required.
    [HybridMount] File Cloud Gateway Concurrent Connections = 20 Upload & 20 Download
    [HybridMount] Network Drive Mount
    [HybridMount] Free cloud gateway sessions 2
    HBS (Hybrid Backup Sync)

    Note: At least 1 GB RAM is required.
    [HBS (Hybrid Backup Sync)] NAS to NAS backup
    [HBS (Hybrid Backup Sync)] Cloud Backup
    [HBS (Hybrid Backup Sync)] Cloud Sync
    [HBS (Hybrid Backup Sync)] 2-way and Active Sync
    [HBS (Hybrid Backup Sync)] Backup Deduplication
    [HBS (Hybrid Backup Sync)] Apple Time Machine Backup
    [HBS (Hybrid Backup Sync)] External drive backup
    [HBS (Hybrid Backup Sync)] Maximum number of backup job 400
    Hyper Data Protector
    Boxafe

    Note: At least 4 GB RAM is required.
    [Boxafe] Office 365 Backup
    [Boxafe] Google Workspace Backup
    [Boxafe] Full-text search
    Qsirch

    Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
    [Qsirch] Previews Photos, music, videos, PDFs, Gmail, and others
    [Qsirch] Integrate Mac Finder
    [Qsirch] Advanced picture search
    [Qsirch] Search filters
    QuMagie

    Note: At least 1 GB RAM is required.
    [QuMagie] Browse photos
    [QuMagie] Virtual and smart albums
    [QuMagie] AI-assisted photo management People, things, places, and others
    Antivirus (free)
    McAfee (License)
    QVPN Service

    Note: At least 1 GB RAM is required.
    [QVPN Service] Remote Access PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
    [QVPN Service] Supportedd utility and mobile app Windows, macOS, iOS, and Android
    [QVPN Service] Supported maximum clients 100
    HD Station
    LDAP Server
    RADIUS
    SQL server
    License Center
    Multimedia Console
    Photo Station
    Music Station
    Video Station
    Download Station
    Notes Station
    Qfiling
    Media Streaming add-on
    QmailAgent
    QuWAN
    DA Driver Analyzer
    Q’center

    Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
    Q’center Server
    Q’center Agent
    Connect to Q’center
    Virtualization Station

    Note: At least 4 GB RAM is required.
    [Virtualization Station] Supports Virtual machine instances Windows, Linux, Unix, and Android
    [Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration All function is Fine.
    [Virtualization Station] Virtual switches Can create a virtual switch
    [Virtualization Station] GPU pass-through Not support GPU
    [Virtualization Station] Suggested number of virtual machine instances 4

    The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed.
    Container Station

    Note: At least 1 GB RAM is required.
    [Container Station] Supported type LXC/LXD and Docker

    Note: LXD has been supported after Container Station 2.4
    [Container Station] Docker Hub Registry
    [Container Station] Container importing and exporting
    [Container Station] Console mode
    Linux Station

    Notification: At least 4 GB RAM is required.
    [Linux Station] Supports Ubuntu versions 18.04, and 20.04
    Linux Station Center
    QVR Pro

    Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
    [QVR Pro] Recording Technique Index database based
    [QVR Pro] License Type Perpetual
    [QVR Pro] User-defined trigger events
    [QVR Pro] Metadata
    [QVR Pro] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
    [QVR Pro] QVR Pro Client (Mobile) Android and iOS
    [QVR Pro] Recording camera streams H.264
    [QVR Pro] Free built-in camera channels 8
    QVR Elite

    Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
    [QVR Elite] Recording Technique Standard MP4 file based
    [QVR Elite] License Type Subscription-based
    [QVR Elite] User-defined trigger events
    [QVR Elite] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
    [QVR Elite] QVR Pro Client (Mobile) Android and iOS
    [QVR Elite] Recording camera streams H.264
    [QVR Elite] Free built-in camera channels 2
    QVR Pro Client
    [QVR Pro Client] Dynamic View Layout
    [QVR Pro Client] Windows
    [QVR Pro Client] Mac
    [QVR Pro Client] HybridDesktop
    [QVR Pro Client] iOS
    [QVR Pro Client] Android
    QVR Center

    Note: At least 4 GB RAM is required.
    [QVR Center] Log management
    [QVR Center] Central monitoring across multiple servers
    QVR Guard

    Note: At least 4 GB RAM is required.
    [QVR Guard] Failover design
    [QVR Guard] Viewing task details
    [QVR Guard] Automatic switch between Standby and Takeover modes
    QVR Human
    QVR Face

    The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/
    QVR DoorAccess

Acumulat din 0 comentarii

0.0 overall
0
0
0
0
0

Doar clientii autentificati, care au cumparat acest produs pot lasa un comentariu

Nu sunt comentarii despre acest produs

Produse similare

Brands Carousel

conecteaza-te
ai nevoie de ajutor?
Powered by Joinchat
Buna ziua,
Cu ce te putem ajuta?
