Enterprise NAS, NAS, QNAP, Rackmount QNAP NAS
Pretul afisat contine TVA (19%).

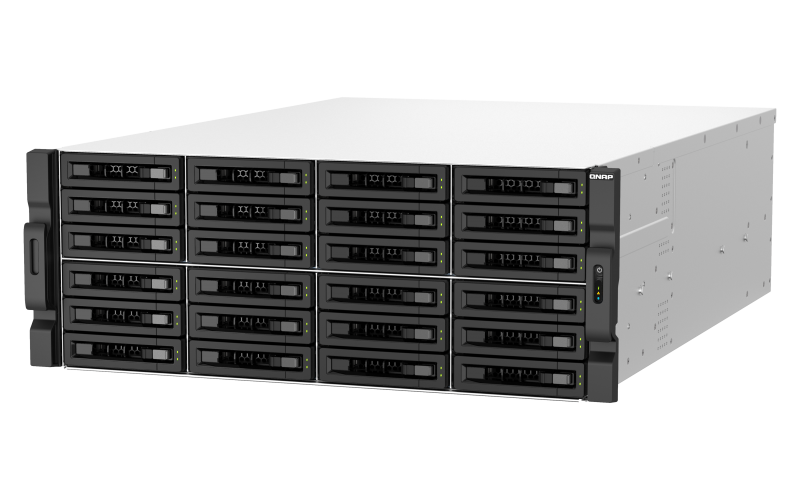

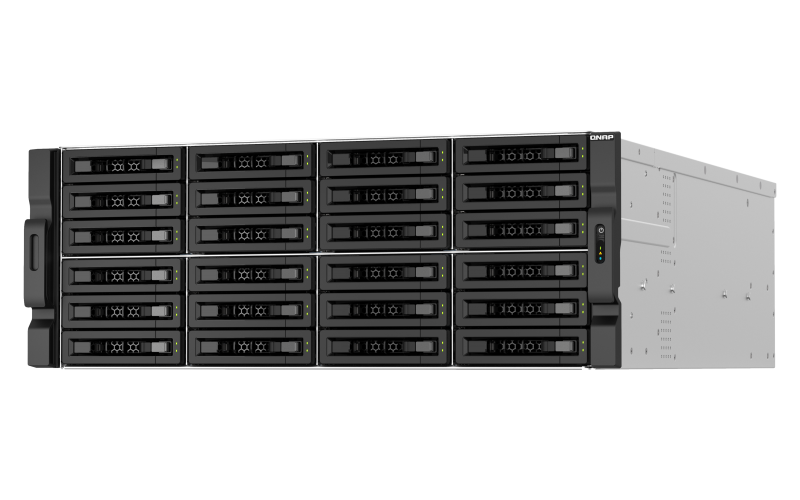

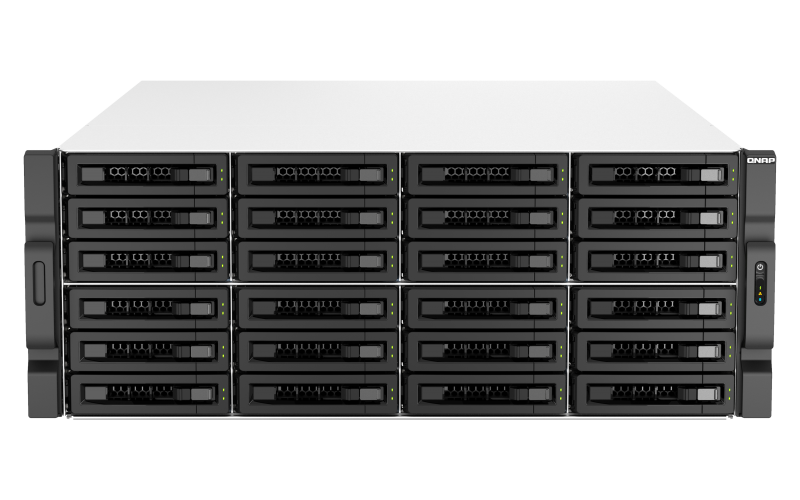

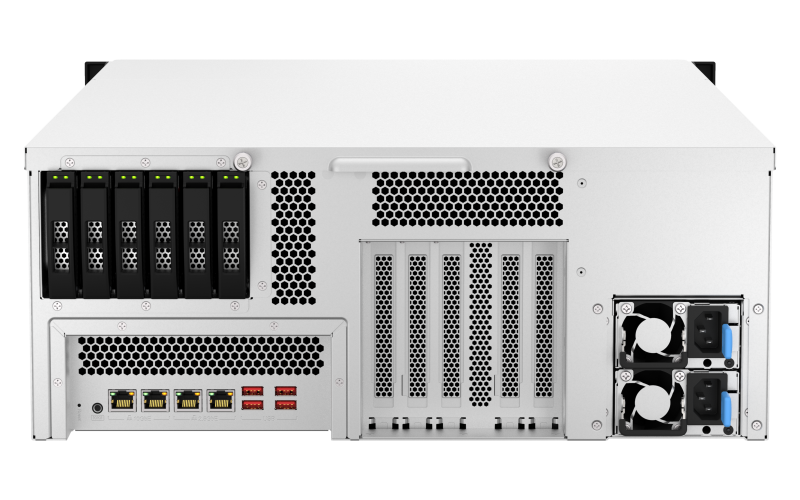

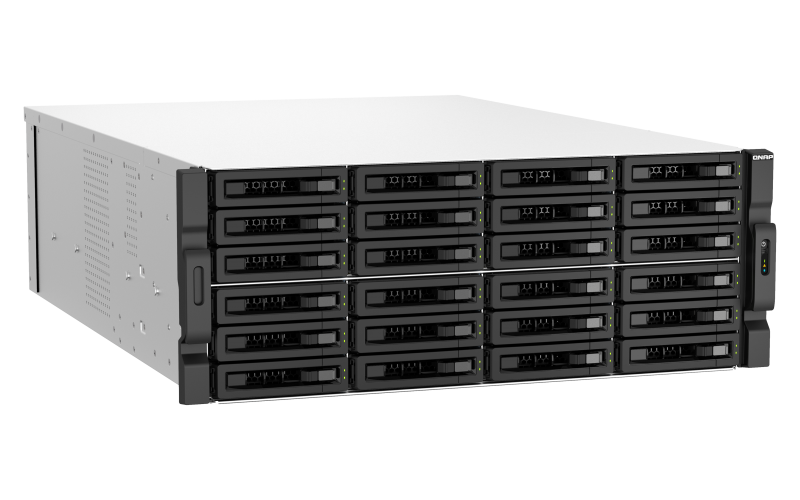

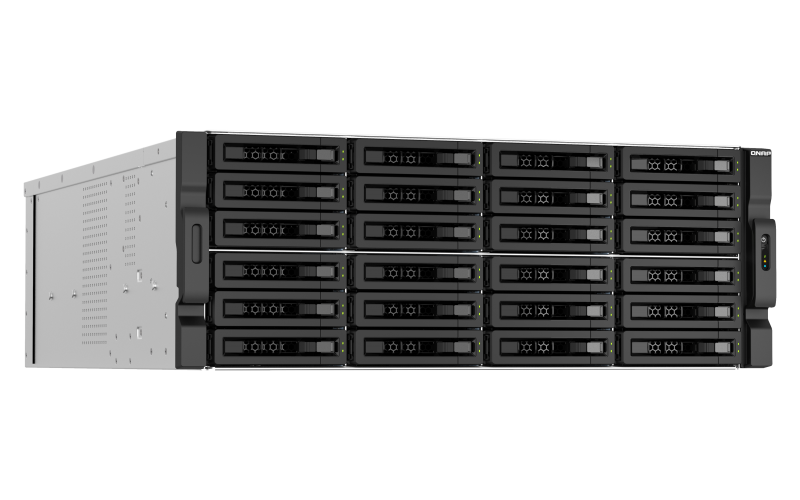

QNAP TS-h3087XU-RP-E2378-64G
ZFS-based, 24-bay U.2 NVMe all-flash storage built for high-performance and low-latency virtualized workloads, data centers, and 8K streams
59.225,40 lei
TS-h3087XU-RP-E2378-64G
| CPU | Intel® Xeon® E-2378 8C 16T 2.6GHz, up to 4.8GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 64 GB ECC DDR4 (4 x 16 GB) |
| Maximum Memory | 128GB (4 x 32 GB) |
| Memory Slot | 4 x ECC UDIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 30 (24 x 3.5-inch SATA + 6 x 2.5-inch SATA) |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives2.5-inch bays: 2.5-inch SATA solid state drives |
| M.2 Slot | Optional via a QM2 PCIe adapter |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2,5G/1G/100M) |
| PCIe Slot | 3 (2 x Gen4 x4 +1 x Gen 4 x8) |
| USB 3.2 Gen 2 (10Gbps) Port | 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| Form Factor | 4U Rackmount |
| LED Indicators | Status (Green/Red) LAN (Green) USB (Blue) HDD status (Green/Red) |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 178 × 483 × 630 mm |
| Weight (Net) | 21.78 kg |
| Weight (Gross) | 29.63 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 2 x 800W PSU |
| Fan | 4 x 80mm, 12VDC |
-
Operating System QuTS hero h5.0.0 Supported Client Operating Systems - Apple Mac OS 10.10 or later
- Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
- IBM AIX 7, Solaris 10 or later UNIX
- Microsoft Windows 7, 8, 10, and 11
Supported Browsers - Apple Safari (latest version)
- Google Chrome (latest version)
- Microsoft Edge (latest version)
- Mozilla Firefox (latest version)
Supported Languages Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish Storage Pool SED Storage Pool Maximum Pool size 1024 TB Maximum number of storage pool 128 Shared Folder Type Thick, Thin Maximum shared folder size 1024 TB Maximum number of shared folder 256 JBOD Expansion VJBOD / VJBOD Cloud iSCSI Service Fibre Channel Service LUN Type Thick, Thin Block-based iSCSI LUN Maximum LUN size 1024 TB Maximum number of targets LUN 256 RAID Type - 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
- 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
- 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
- 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
RAID Group To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Expansion (by replacing bigger Disks) Storage Pool Expansion (by adding RAID Group) RAID Hot Spare Global, Local RAID Sync/Rebuild/Scrubbing End-to-End data integrity Silent error detection and self-healing Internal drive ZFS External drive EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT Disk, Enclosure Locate Disk S.M.A.R.T. Scan Disk S.M.A.R.T. Data Migration Ironwolf Health Management Secure Erase SSD Trim SSD Life Estimation Disk Roaming Disk Standby Shared Folder Snapshot LUN Snapshot Maximum Snapshot (Per System) Check maximum number of snapshots of your NAS Maximum Snapshot (Per Volume / LUN) Check maximum number of snapshots of your NAS Minimum Snapshot Interval 1 minute Snapshot Retention Policy Self-serve Snapshot Recovery Application Consisted Snapshot Snapshot Full Clone Snapshot Instant Clone Snapshot Replica / Vault SSD read-only Cache SSD read & write log cache SSD dedicated ZIL cache SSD Cache Maximum Size Check your QNAP NAS cache capacity and RAM requirements SSD Cache RAID 0, 1, 10 (journal) External Device Management Mount Smart Phone (MTP) External RAID Device (QNAP so on) Management (External Device Mode) External RAID Device (QNAP so on) Management (NAS Mode) File Server - File sharing across Windows, Mac, and Linux/UNIX
- Microsoft networking (CIFS/SMB)
- Apple networking (AFP)
- NFS version 3/4 services
FTP Server - FTP, SFTP and TFTP protocols
- FTP over SSL/TLS (explicit FTPS)
- FXP support
Maximum FTP connection 1024 Shared Folder Data Compression Shared Folder Data Deduplication Shared Folder WORM File Station (Web) Object Storage Local user account 16,000 Local group account 512 Domain user/group account 200,000 Domain Security Domain Controller Shared folder permission Windows ACL User quota Group quota Folder quota Home folder Resource Monitor SNMP V2, V3 Network recycle bin - Recover files deleted using AFP, CIFS/SMB, and File Station
- Automatic cleanup and file type filter
System Log & Notification Center Log recording: 3,000 event per second Smart Fan Schedule on/off Internet protocol IPv4, IPv6 Virtual Switch Port trunking , (7 modes) VLAN DHCP Server DDNS (Dynamic Domain Name Service) Network access protection with auto-blocking SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP Security Counselor Malware Remover AES 256-bit Folder Encryption validated by FIPS 140-2 CAVP 2-step verification Allow/Deny List Access Protection Service binding Firewall vSphere Web Client Plug-in VMware vSphere VAAI for iSCSI VMware vSphere VAAI for NAS Windows ODX Windows/VMware Snapshot Agent HTTP/HTTPS Connections TLS 1.0/1.1/1.2/1.3 Supports WebDAV Connection Supports Virtual Hosts 32 Qsync Note: At least 1 GB RAM is required.
[Qsync] Management Mode User customization, Central [Qsync] Qsync client supported platforms Windows, macOS, Ubuntu, Android, and iOS [Qsync] Maximum number of version control 64 HybridMount Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway Concurrent Connections = 80 Upload & 80 Download [HybridMount] Network Drive Mount [HybridMount] Free cloud gateway sessions 2 HBS (Hybrid Backup Sync) Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup [HBS (Hybrid Backup Sync)] Cloud Backup [HBS (Hybrid Backup Sync)] Cloud Sync [HBS (Hybrid Backup Sync)] 2-way and Active Sync [HBS (Hybrid Backup Sync)] Backup Deduplication [HBS (Hybrid Backup Sync)] Apple Time Machine Backup [HBS (Hybrid Backup Sync)] External drive backup [HBS (Hybrid Backup Sync)] Maximum number of backup job 400 Hyper Data Protector Boxafe Note: At least 4 GB RAM is required.
[Boxafe] Office 365 Backup [Boxafe] Google Workspace Backup [Boxafe] Full-text search Qsirch Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews Photos, music, videos, PDFs, Gmail, and others [Qsirch] Integrate Mac Finder [Qsirch] Advanced picture search [Qsirch] Search filters QuMagie Note: At least 1 GB RAM is required.
[QuMagie] Browse photos [QuMagie] Virtual and smart albums [QuMagie] AI-assisted photo management People, things, places, and others Antivirus (free) McAfee (License) QVPN Service Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary) [QVPN Service] Supportedd utility and mobile app Windows, macOS, iOS, and Android [QVPN Service] Supported maximum clients 100 LDAP Server RADIUS SQL server License Center Multimedia Console Photo Station Music Station Video Station Download Station Notes Station Qfiling Media Streaming add-on QmailAgent QuWAN DA Driver Analyzer Q’center Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Q’center Server Q’center Agent Connect to Q’center Virtualization Station Note: At least 4 GB RAM is required.
[Virtualization Station] Supports Virtual machine instances Windows, Linux, Unix, and Android [Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration All function is Fine. [Virtualization Station] Virtual switches Can create a virtual switch [Virtualization Station] GPU pass-through GPU function is fine [Virtualization Station] Suggested number of virtual machine instances 16 The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed.
Container Station Note: At least 1 GB RAM is required.
[Container Station] Supported type LXC/LXD and Docker Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry [Container Station] Container importing and exporting [Container Station] Console mode Linux Station Notification: At least 4 GB RAM is required.
[Linux Station] Supports Ubuntu versions 16.04, 18.04, and 20.04 Linux Station Center QVR Elite Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique Standard MP4 file based [QVR Elite] License Type Subscription-based [QVR Elite] User-defined trigger events [QVR Elite] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station [QVR Elite] QVR Pro Client (Mobile) Android and iOS [QVR Elite] Recording camera streams H.264 [QVR Elite] Free built-in camera channels 2 [QVR Elite] Expandable camera channels Developing [QVR Pro Client] Live 4K H.265 (6M) channel Number @ 8 x 1080P H.264 recording channls (Use HybridDesktop Platform) (Expected) N/A [QVR Pro Client] Live 1080P H.264 (5M) channel Number @ 8 x 1080P H.264 recording channls (Use HybridDesktop Platform) (Expected) N/A [QVR Pro Client] Live 720P (3M) H.264 channel Number @ 8 x 1080P H.264 recording channls (Use HybridDesktop Platform) (Expected) N/A QVR Center Note: At least 4 GB RAM is required.
[QVR Center] Log management [QVR Center] Central monitoring across multiple servers
