QNAP NAS STORAGE TOWER 4BAY 8GB/TS-473A-8G (TS-473A-8G)

Compara

ZFS-based, 24-bay U.2 NVMe all-flash storage built for high-performance and low-latency virtualized workloads, data centers, and 8K streams

Pretul afisat contine TVA (19%).

6.073,12 lei

Compara

QNAP NAS STORAGE TOWER 4BAY 8GB/TS-473A-8G



Descriere produs

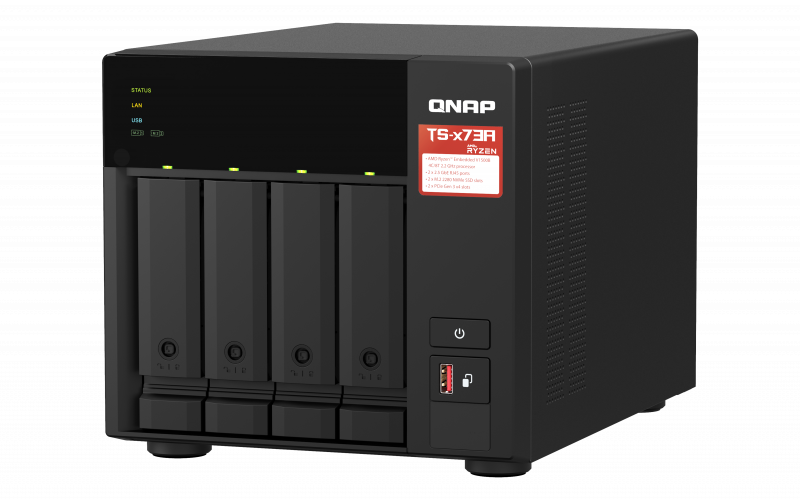

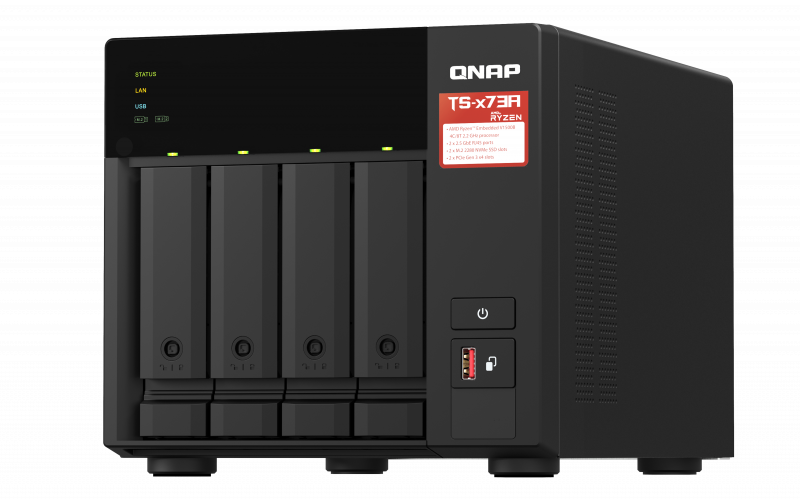

TS-473A
AMD Ryzen™ quad-core 2.2 GHz 2.5GbE NAS supports M.2 NVMe SSD and PCIe expansion for adding 10GbE high-speed connectivity and M.2 SSD; QTS and QuTS hero dual operating system for greater flexibilityFeaturing an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-473A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-473A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.

Specificații
CPUAMD RyzenT Embedded V1500B 4-core/8-thread 2.2 GHz processor
Number of drives/bays 4
Memory 8 GB
Memory type DDR4
Flash memory (ROM) 5120 MB
Power consumption 29.8 Watts
Dimensions 188.2 × 199.3 × 280.8 mm
Shipping box quantity 1
Unit Brutto Volume 0.03343 cubm
Unit Net Weight 5.04 kg
Unit Gross Weight 6.15 kg
Drive Bays
3.5″ SATA Hot-swap 4
Expansion slots
PCI-Express 3.0 4x 2
M.2 2

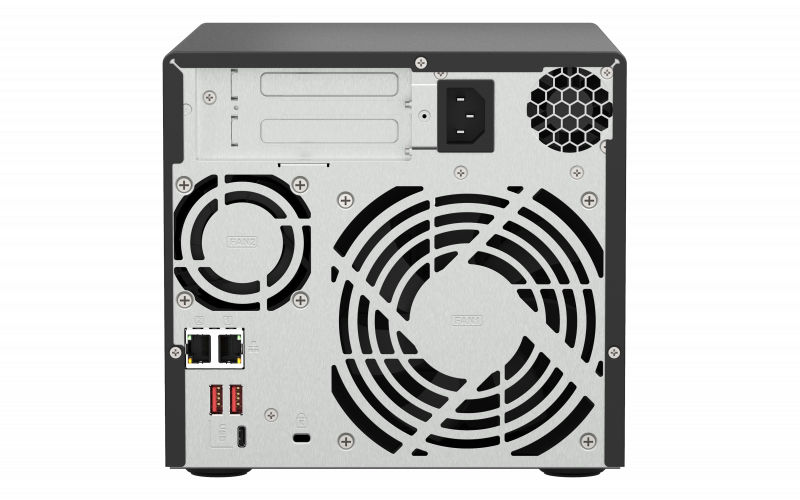

Input/Output connectors
USB 3.23
USB-C1
RJ452
Mounting Type
Desktop/pedestal Yes
SKU: TS-473A-8G Categorii: , , ,
Operating System QuTS hero h5.0.0
Supported Client Operating Systems
  1. Apple Mac OS 10.10 or later
  2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
  3. IBM AIX 7, Solaris 10 or later UNIX
  4. Microsoft Windows 7, 8, 10, and 11
  5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019


Supported Browsers
  1. Apple Safari (latest version)
  2. Google Chrome (latest version)
  3. Microsoft Edge (latest version)
  4. Mozilla Firefox (latest version)
Supported Languages Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool
SED Storage Pool
Maximum Pool size 1024 TB
Maximum number of storage pool 128
Shared Folder Type Thick, Thin
Maximum shared folder size 1024 TB
Maximum number of shared folder 256
JBOD Expansion
VJBOD / VJBOD Cloud
iSCSI Service
Fibre Channel Service
LUN Type Thick, Thin
Block-based iSCSI LUN
Maximum LUN size 1024 TB
Maximum number of targets LUN 256
RAID Type
  1. 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
  2. 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
  3. 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
  4. 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity


RAID Group

To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Expansion (by replacing bigger Disks)
Storage Pool Expansion (by adding RAID Group)
RAID Hot Spare Global, Local
RAID Sync/Rebuild/Scrubbing
End-to-End data integrity
Silent error detection and self-healing
Internal drive ZFS
External drive EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
Disk, Enclosure Locate
Disk S.M.A.R.T. Scan
Disk S.M.A.R.T. Data Migration
Ironwolf Health Management
Secure Erase
SSD Trim
SSD Life Estimation
Disk Roaming
Disk Standby
Shared Folder Snapshot
LUN Snapshot
Maximum Snapshot (Per System) Check maximum number of snapshots of your NAS
Maximum Snapshot (Per Volume / LUN) Check maximum number of snapshots of your NAS
Minimum Snapshot Interval 1 minute
Snapshot Retention Policy
Self-serve Snapshot Recovery
Application Consisted Snapshot
Snapshot Full Clone
Snapshot Instant Clone
Snapshot Replica / Vault
SSD read-only Cache
SSD read & write log cache
SSD dedicated ZIL cache
SSD Cache Maximum Size Check your QNAP NAS cache capacity and RAM requirements
SSD Cache RAID 0, 1, 10 (journal)
External Device Management
Mount Smart Phone (MTP)
External RAID Device (QNAP so on) Management (External Device Mode)
External RAID Device (QNAP so on) Management (NAS Mode)
File Server
  1. File sharing across Windows, Mac, and Linux/UNIX
  2. Microsoft networking (CIFS/SMB)
  3. Apple networking (AFP)
  4. NFS version 3/4 services
FTP Server
  1. FTP, SFTP and TFTP protocols
  2. FTP over SSL/TLS (explicit FTPS)
  3. FXP support
Maximum FTP connection 1024
Shared Folder Data Compression
Shared Folder Data Deduplication
Shared Folder WORM
File Station (Web)
Object Storage
Local user account 16,000
Local group account 512
Domain user/group account 200,000
Domain Security
Domain Controller
Shared folder permission
Windows ACL
User quota
Group quota
Folder quota
Home folder
Resource Monitor
SNMP V2, V3
Network recycle bin
  1. Recover files deleted using AFP, CIFS/SMB, and File Station
  2. Automatic cleanup and file type filter
System Log & Notification Center Log recording: 3,000 event per second
Smart Fan
Schedule on/off
Internet protocol IPv4, IPv6
Virtual Switch
Port trunking , (7 modes)
VLAN
DHCP Server
DDNS (Dynamic Domain Name Service)
Network access protection with auto-blocking SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor
Malware Remover
AES 256-bit Folder Encryption validated by FIPS 140-2 CAVP
2-step verification
Allow/Deny List
Access Protection
Service binding
Firewall
vSphere Web Client Plug-in
VMware vSphere VAAI for iSCSI
VMware vSphere VAAI for NAS
Windows ODX
Windows/VMware Snapshot Agent
HTTP/HTTPS Connections TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection
Supports Virtual Hosts 32
Qsync

Note: At least 1 GB RAM is required.
[Qsync] Management Mode User customization, Central
[Qsync] Qsync client supported platforms Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control 64
HybridMount

Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway Concurrent Connections = 80 Upload & 80 Download
[HybridMount] Network Drive Mount
[HybridMount] Free cloud gateway sessions 2
HBS (Hybrid Backup Sync)

Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup
[HBS (Hybrid Backup Sync)] Cloud Backup
[HBS (Hybrid Backup Sync)] Cloud Sync
[HBS (Hybrid Backup Sync)] 2-way and Active Sync
[HBS (Hybrid Backup Sync)] Backup Deduplication
[HBS (Hybrid Backup Sync)] Apple Time Machine Backup
[HBS (Hybrid Backup Sync)] External drive backup
[HBS (Hybrid Backup Sync)] Maximum number of backup job 400
Hyper Data Protector
Boxafe

Note: At least 4 GB RAM is required.
[Boxafe] Office 365 Backup
[Boxafe] Google Workspace Backup
[Boxafe] Full-text search
Qsirch

Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder
[Qsirch] Advanced picture search
[Qsirch] Search filters
QuMagie

Note: At least 1 GB RAM is required.
[QuMagie] Browse photos
[QuMagie] Virtual and smart albums
[QuMagie] AI-assisted photo management People, things, places, and others
Antivirus (free)
McAfee (License)
QVPN Service

Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients 100
LDAP Server
RADIUS
SQL server
License Center
Multimedia Console
Photo Station
Music Station
Video Station
Download Station
Notes Station
Qfiling
Media Streaming add-on
QmailAgent
QuWAN
DA Driver Analyzer
Q’center

Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Q’center Server
Q’center Agent
Connect to Q’center
Virtualization Station

Note: At least 4 GB RAM is required.
[Virtualization Station] Supports Virtual machine instances Windows, Linux, Unix, and Android
[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration All function is Fine.
[Virtualization Station] Virtual switches Can create a virtual switch
[Virtualization Station] GPU pass-through GPU function is fine
[Virtualization Station] Suggested number of virtual machine instances 8

The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed.
Container Station

Note: At least 1 GB RAM is required.
[Container Station] Supported type LXC/LXD and Docker

Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry
[Container Station] Container importing and exporting
[Container Station] Console mode
Linux Station

Notification: At least 4 GB RAM is required.
[Linux Station] Supports Ubuntu versions 16.04, 18.04, and 20.04
Linux Station Center
QVR Elite

Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique Standard MP4 file based
[QVR Elite] License Type Subscription-based
[QVR Elite] User-defined trigger events
[QVR Elite] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile) Android and iOS
[QVR Elite] Recording camera streams H.264
[QVR Elite] Free built-in camera channels 2
[QVR Elite] Expandable camera channels Developing
[QVR Pro Client] Live 4K H.265 (6M) channel Number @ 8 x 1080P H.264 recording channls (Use HybridDesktop Platform) (Expected) N/A
[QVR Pro Client] Live 1080P H.264 (5M) channel Number @ 8 x 1080P H.264 recording channls (Use HybridDesktop Platform) (Expected) N/A
[QVR Pro Client] Live 720P (3M) H.264 channel Number @ 8 x 1080P H.264 recording channls (Use HybridDesktop Platform) (Expected) N/A
QVR Center

Note: At least 4 GB RAM is required.
[QVR Center] Log management
[QVR Center] Central monitoring across multiple servers
