QNAP TS-453BT3-8G

Featuring dual Thunderbolt™ 3 ports, coupled with M.2 SATA SSD caching and 10GBASE-T connectivity, the TS-453BT3 provides an ideal environment for professional collaborative media editing and high-speed file sharing. The TS-453BT3 features a sleek new look with an OLED panel and two capacitive touch buttons. With powerful hardware capabilities and feature-rich productivity tools, the TS-453BT3 provides the best NAS solution for media studios or small creative workgroups looking to greatly simplify their workflows.

Runs faster with Thunderbolt™ 3 and 10GbE connectivity

Powered by an Intel® Celeron® J3455 quad-core 1.5GHz processor (burst up to 2.3 GHz), with up to 8GB DDR3L RAM, dual Gigabit LAN ports, and SATA 6Gb/s drives, the TS-453BT3 delivers up to 683 MB/s read/write speeds and up to 683 MB/s with AES-NI encryption, delivering high performance while also maintaining the security of your data. The Thunderbolt 3 port runs up to 514 MB/s, allowing for quick file access. You can also connect USB Type-C devices through the Thunderbolt 3 ports to transfer large media files across devices, bringing you a more efficient workflow.

Note: Mac OS 10.11.5 (and later) enables SMB signing by default, which may impact the connection speed to the NAS. To improve the connection speed, users can disable SMB signing or use Qfinder Pro to connect to the NAS.

Thunderbolt 3 reaches the maximum theoretical transfer rate of 40 Gigabits per second. Actual performance may vary due to hardware/software limitations and usage environment. Directly connecting a QNAP Thunderbolt 3 NAS to a computer establishes a peer-to-peer (P2P) network and enables 20GbE connectivity.

Collaboration station for Mac and Windows

TS-453BT3 is the perfect match for users with Thunderbolt 3 Mac and can also be used with Thunderbolt 2 Mac by using a suitable adapter. The increased bandwidth of Thunderbolt 3 enables smooth video editing and faster file sharing for photographers, video editors and graphic designers. Up to 2 Thunderbolt devices can be connected to the TS-453BT3 to process real-time photo and audio editing simultaneously without impacting system performance. As Final Cut Pro® X 10.3 supports file sharing via SMB, Windows users and other devices utilizing Thunderbolt™ 3, 10GbE or GbE connections can join the editing workflow more efficiently.

Direct access to 10GbE network from your Mac

The innovative Thunderbolt-to-Ethernet converter (T2E) allows your Mac® devices to access 10GbE networks via the TS-453BT3, providing flexible, convenient and highly-efficient data transfer without needing to buy extra adapters or converters.

Greater efficiency with SSD caching and 10GbE connectivity

The pre-installed dual-port M.2 SATA SSD/10GBASE-T expansion card enables caching or Qtier auto-tiering technology to improve NAS performance without occupying disk bays of the NAS.

The 10GBASE-T port ensures that the TS-453BT3 meets 10GbE infrastructure requirements and can efficiently manage data transfers requiring high-bandwidth.

Simple, sleek and trendy look.

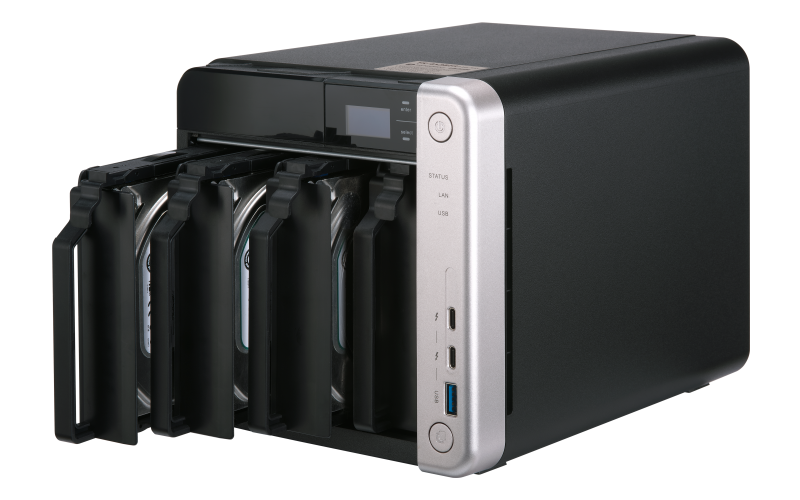

The TS-453BT3 features a sliding cover design with tool-less 3.5-inch hard drive installation, making it easier for you to set up and maintain. The OLED front panel displays system information (including CPU temperatures, fan speed, and storage capacities of hard drives, volumes and LUN), allowing you to quickly view overall system status. Dust-proof capacitive touch buttons allow you to easily wake up the screen, change network IP settings and host password or even restart and shut down the system.

QTS – The intelligent and intuitive NAS operating system

With multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more. The user-friendly QTS features an intelligent desktop that allows you to find desired functions quickly, monitor important system information on a real-time basis, open multiple application windows to run multiple tasks concurrently with greater working efficiency, and provides a built-in App Center with install-on-demand apps to extend NAS functionality. Empowered by intelligent agent services that simplify system operations and management, QTS breaks down barriers of devices, platforms, and geography to provide you with the optimum cloud experience.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell®, ATTO® or QNAP Fibre Channel card has been installed in the TS-453BT3, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

File sharing and synchronization

The TS-453BT3 supports SMB, NFS and AFP, allowing you to quickly share files to Windows®, Mac®, and Linux®/UNIX® devices. With QNAP’s Qsync app, the TS-453BT3 becomes a safe data center for file synchronization with huge storage potential. Any file uploaded to TS-453BT3 can be synchronized to all the linked devices such as computers, laptops and mobile devices. You can also sync shared folders to increase the flexibility of collaboration and file sharing.

Directly view multimedia

By connecting the TS-453BT3 to a HDTV or AV receiver via the HDMI output, you can directly view multimedia content saved on TS-453BT3 on a bigger screen. You can download and install versatile multimedia apps from Ubuntu Software Center through QNAP Linux Station. QNAP’s HD Station also allows users to directly enjoy multimedia using HD Player or third-party players such as Plex Home Theater.

Qsirch finds what you need

Qsirch is QNAP’s full-text search engine that can quickly find desired files on your NAS. Qsirch can search through over 6,000 file formats and can use over 30 search conditions. Recommended or similar files are also displayed in the search preview page based on set keywords and conditions. Professional photographers can even search files through the camera’s lens type, greatly shortening time in finding files and can spend more time concentrating on editing.

Real-time transcoding for an excellent cross-device media experience

Featuring advanced 9th-generation Intel® HD Graphics, the TS-453BT3 supports dual-channel 4K H.264 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be smoothly played on multiple devices.

Get things done with one button

The TS-453BT3 provides a free Remote Control (RM-IR004). You can customize the actions of individual buttons of your QNAP remote control using QButton, such as viewing a preset surveillance channel in Surveillance Station, providing you with convenient control of your multimedia experience.

NAS as a multi-OS platform

Virtualization Station and Container Station bring comprehensive solution for virtualization environment deployment. You can count on QNAP virtualization apps to easily find a suitable solution tailored to your specific requirement.

Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines on TS-453BT3. You can use Virtual Network Computing (VNC) through a browser to manage the VMs. It’s ideal for organizations to run multiple applications on a single NAS.

Virtualization Station

Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub® to easily import/export container apps and manage access control, enjoying the benefit of easy installation, transferability and high-efficiency.
