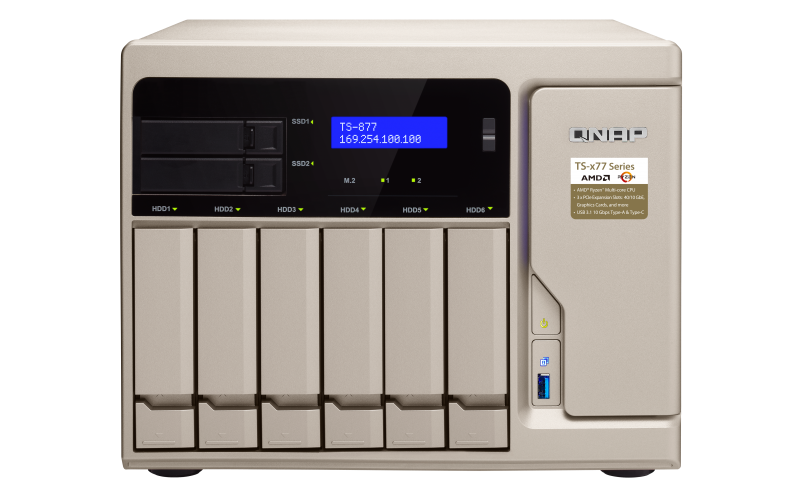

QNAP TS-877-1700-16G

The TS-877 powered by AMD’s new 14nm Ryzen™ processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 8 cores/16 threads native processing and Turbo Core up to 3.7 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-877 the preeminent choice to tackle resource-demanding applications and tasks.

Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance AMD Ryzen™ 7 1700 or AMD Ryzen™ 5 1600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-877 delivers aggressive yet power-smart performance to meet your multitasking demands and is capable of running up to 7 virtual machines simultaneously*. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, the TS-877 with gold-standard performance is your ideal choice.

Top-class hardware engineering

The feature-packed hardware of the TS-877 bolsters overall system performance. Coupled with the flexible and expandable architecture, the TS-877 fulfills diversified application needs.

Extend NAS functionality with PCIe slots

The TS-877 features three PCIe slots (1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x4) that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.

10GbE/ 40GbE adapters

Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.

QM2 M.2 SSD/10GbE cards

Install QNAP’s innovative QM2 M.2 SSD/10GbE card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

Note: The QM2 card can only be installed in the System Zone PCIe slot (PCIe slot 1). A QM2 card and a graphics card cannot be installed in the same NAS when both cards require PCIe slot 1.

Wireless network cards

Install a compatible wireless network card to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

Fuel GPU-accelerated computing with a 450W power supply

SSD caching and auto tiering enable 24/7 optimized storage efficiency

Potentially attain performance and endurance levels similar to enterprise-grade SSDs

Performance & reliability. Your wise choice.

The TS-877 supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.

RAID 50/60

For businesses using NAS with over 10 disks, RAID 50/60 not only provides greater data protection than a single RAID 5/6, but also maximizes usable storage space compared to RAID 10. Besides data storage, and with an obvious random write performance boost when using SSD RAID, RAID 50/60 also offers a great choice for professional video streaming and database usage.

iSER

iSCSI Extensions for RDMA (iSER) protocol working with a compatible 10GbE/40GbE SFP+ NIC helps boost data transfer performance of the TS-877 as VMware® ESXi storage, providing an essential tool to optimize demanding virtualization applications.

Central management

Designed for IT administrators, QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.

Block-based iSCSI LUN: Ideal choice for virtualization storage

Build an affordable Fibre Channel SAN environment

All-in-one server to host virtual machines and containers

QTS – Intelligent, intuitive and creative NAS operating system

Optimized collaboration with seamless file sharing and sync

The TS-877 centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-877 will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

Complete backup planning

The TS-877 provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

Windows and Mac backup

Use the license-free QNAP NetBak Replicator utility to back up/restore Windows® files, alongside Time Machine® support for Mac® devices. It is easy, fast and convenient.

Hybrid Backup Sync

Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

Snapshots for Volume & LUN

Snapshot is essential for NAS data protection, and its block-level feature makes it a dependable method for protecting data in the face of the growing threat of ransomware. The TS-877 supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS.

VM backup

With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-877 are perfect for backing up virtual machines.

4K live-streaming on a private cloud

Comprehensive surveillance solution for 24/7 monitoring

Flexible and economical storage expansion
