Synology Flash Station 24 -Bay 2 x Xeon Silver 4110 32GB 2 x USB 3.0 2 x 10GbE LAN (FS6400)

Compara

Blazingly-fast all-flash server aiming for I/O-intensive applications.

Pretul afisat contine TVA (19%).

72.838,56 lei

Compara

Synology Flash Station 24 -Bay 2 x Xeon Silver 4110 32GB 2 x USB 3.0 2 x 10GbE LAN

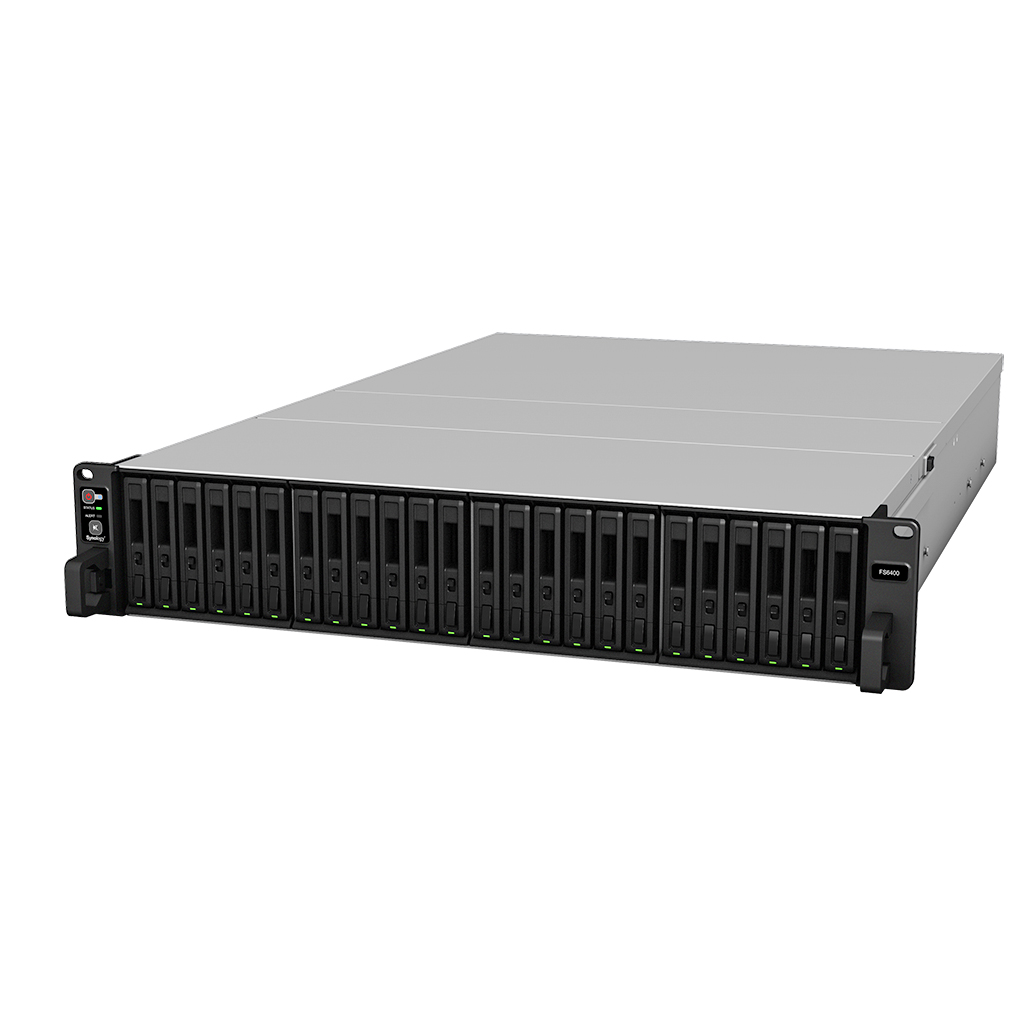

Synology FlashStation FS6400 is a 2U rackmount server designed for I/O-intensive and latency-sensitive tasks, ideal for multimedia post-production, virtual machines, online transaction processing, or database applications.



  • Fast and reliable networking
    With multi-LAN design, FS6400 is capable of performing Link Aggregation and failover.
  • Complete iSCSI and virtualization solutions
    Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency.
  • Next-generation file system for better data protection
    The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
  • RAID F1
    Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.



Descriere: Synology FlashStation FS6400 – NAS server – 24 bays – rack-mountable – RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 – RAM 32 GB – Gigabit Ethernet / 10 Gigabit Ethernet – iSCSI support – 2U
EAN: 4711174722730
Garanție: 60 Luni
 General
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type: Rack-mountable – 2U
Total Storage Capacity: 0 GB
Installed Devices / Modules Qty: 0 (installed) / 24 (max)
Width: 48.2 cm
Depth: 72.4 cm
Height: 8.8 cm
Weight: 17.26 kg ()
 Processor / Memory
Processors Installed: 2 x Intel Xeon Silver 4110 2.1 GHz
Number of Cores: 8-core
Max Turbo Speed: 3 GHz
RAM: 32 GB (installed) / 512 GB (supported) – DDR4
Features: Registered, ECC
 Storage Controller
Type: RAID
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1
 Networking
Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE, 10 GigE
Network / Transport Protocol: PPTP, L2TP, iSCSI, SMTP, FTP, SMB, HTTPs
Remote Management Protocol: SNMP, Telnet, HTTPS, SSH, SMTP, LDAP
Network Services Compatibility: Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
Features: Firewall protection, VPN support, LDAP support, wake on LAN (WOL), antivirus analysis, High Availability, anti-malware protection, Access Control List (ACL) support, e-mail server, reset button, bandwidth control, surveillance station, VPN Server, failover protection, OpenStack compatible, B-tree file system (Btrfs), file station, EXT4 file system, iSCSI LUN clone/snapshot, Windows ODX, MailPlus server
Encryption Algorithm: AES-NI
 Security DVR
IP Cameras Supported: 128
Compression Format: MJPEG, H.264, H.265
Image Resolution: 1280×720, 1920×1080, 2048×1536, 2591×1944, 3840×2160
 Expansion / Connectivity
Expansion Bays: 24 (total) / 24 (free) x hot-swap – 2.5″
Expansion Slots: 2 x PCI Express 3.0 x8
16 (total) / 14 (free) x DIMM 288-pin
Interfaces: 2 x Ethernet 1000Base-T – RJ-45
2 x USB 3.0 – Type A
1 x serial – DB-9
2 x Ethernet 10Gb – RJ-45
 Miscellaneous
Features: Built-in 4 cooling fans
Compliant Standards: VCCI, BSMI, FCC, RoHS, EAC, RCM
Included Accessories: Accessory pack
 Power
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 288.49 Watt
Power Provided: 800 Watt
 Software / System Requirements
OS Required: Microsoft Windows 7 or later, Apple MacOS X 10.11 or later
 Manufacturer Warranty
Service & Support: Limited warranty – 5 years
 Environmental Parameters
Min Operating Temperature: 0 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 5 – 95%
Sound Emission: 53.7 dBA
SKU: FS6400 Categorii: , , ,
  • Hardware Specs
CPU
 CPU Model Intel Xeon Silver 4110
CPU Quantity 2
CPU Architecture 64-bit
CPU Frequency 8-core 2.1 (base) / 3.0 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
 System Memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-installed 32 GB (16 GB x 2)
Total Memory Slots 16
Maximum Memory Capacity 512 GB (32 GB x 16)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information on the recommended memory configurations, visit here.
Storage
 Drive Bays 24
Maximum Drive Bays with Expansion Unit 48 (RX1217sas x 2) / 72 (FX2421* x 2)
Compatible Drive Type* (See all supported drives)
  • 2.5″ SAS HDD
  • 2.5″ SAS SSD
  • 2.5″ SATA SSD
Hot Swappable Drive*
Notes „Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
 RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port* 2
Expansion Port 1
Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 2 x Gen3 x8 slots (x8 link)
File System
 Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
 Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 17.26 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKS-02)
Notes The rail kit is sold separately
Others
 System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 53.7 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 800 W
Redundant Power Supply
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 288.49 W (Access)
145.8 W (HDD Hibernation)
British Thermal Unit 984.37 BTU/hr (Access)
497.49 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • KC
  • VCCI
  • RCM
Warranty
 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
CPU
 CPU Model Intel Xeon Silver 4110
CPU Quantity 2
CPU Architecture 64-bit
CPU Frequency 8-core 2.1 (base) / 3.0 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
 System Memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-installed 32 GB (16 GB x 2)
Total Memory Slots 16
Maximum Memory Capacity 512 GB (32 GB x 16)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information on the recommended memory configurations, visit here.
Storage
 Drive Bays 24
Maximum Drive Bays with Expansion Unit 48 (RX1217sas x 2) / 72 (FX2421* x 2)
Compatible Drive Type* (See all supported drives)
  • 2.5″ SAS HDD
  • 2.5″ SAS SSD
  • 2.5″ SATA SSD
Hot Swappable Drive*
Notes „Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
 RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port* 2
Expansion Port 1
Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 2 x Gen3 x8 slots (x8 link)
File System
 Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
 Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 17.26 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKS-02)
Notes The rail kit is sold separately
Others
 System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 53.7 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 800 W
Redundant Power Supply
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 288.49 W (Access)
145.8 W (HDD Hibernation)
British Thermal Unit 984.37 BTU/hr (Access)
497.49 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • KC
  • VCCI
  • RCM
Warranty
 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  • Software Specs
DSM Specifications
Storage Management
 Maximum Single Volume Size*
  • 1 PB (64 GB memory required, for RAID 6 groups only)
  • 200 TB
Maximum Internal Volume Number 256
SSD Read / Write Cache (White Paper)
SSD TRIM
RAID Group
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • On Peta Volume enabled volumes, Snapshot Replication, SSD caching, shared folder encryption, and compression will not be available. Please refer to this article for more information on limitations.
  • Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
File Services
 File Protocol SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections 8,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) 10,000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Notes
  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
 Maximum Local User Accounts 16,000
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Hybrid Share
 Maximum Hybrid Share Folders 30
Notes For more details about the maximum number of Hybrid Share folders, check this article.
High Availability
 Synology High Availability
Log Center
 Syslog Events per Second 3,000
Virtualization
 VMware vSphere with VAAI
Windows Server 2016
Windows Server 2019
Citrix Ready
OpenStack
General Specifications
 Networking Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Google Chrome
  • Firefox
  • Microsoft Edge
  • Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)
Central Management System
Synology Chat
 Maximum Users 6,000
Maximum Number of Concurrent Users 1,500
Notes When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
SAN Manager
 Maximum iSCSI Target Number 256
Maximum LUN 512
LUN Clone/Snapshot, Windows ODX
Notes iSCSI Manager has been renamed to SAN Manager in DSM 7.0.
Synology MailPlus / MailPlus Server
 Free Email Accounts 5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users 2,200
Maximum Server Performance 5,721,000 emails per day, approx. 174GB
Notes
  • FS series were installed with 12 SSDs in RAID F1 configuration.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Snapshot Replication
 Maximum Snapshots per Shared Folder 1,024
Maximum of System Snapshots 65,536
Surveillance Station
 Maximum IP cam (Licenses required) 150 (including 2 Free License) (see all supported IP cameras)
Total FPS (H.264) 4500 FPS @ 720p (1280×720)
4500 FPS @ 1080p (1920×1080)
4500 FPS @ 3M (2048×1536)
3300 FPS @ 5M (2591×1944)
2100 FPS @ 4K (3840×2160)
Total FPS (H.265) 4500 FPS @ 720p (1280×720)
4500 FPS @ 1080p (1920×1080)
4500 FPS @ 3M (2048×1536)
4500 FPS @ 5M (2591×1944)
4500 FPS @ 4K (3840×2160)
Notes
  • Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
  • Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive
 Recommended Number of Concurrent Sync Clients 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files 100,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilizing SSD cache can significantly improve performance.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
 Maximum Users 3,400
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager
 Recommended Virtual Machine Instances 32 (Learn more)
Recommended Virtual DSM Number (Licenses required) 32 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.
VPN Server
 Maximum Connections 60



Acumulat din 0 comentarii

0.0 overall
0
0
0
0
0

Doar clientii autentificati, care au cumparat acest produs pot lasa un comentariu

Nu sunt comentarii despre acest produs

Produse similare

Brands Carousel

conecteaza-te
ai nevoie de ajutor?
Powered by Joinchat
Buna ziua,
Cu ce te putem ajuta?
