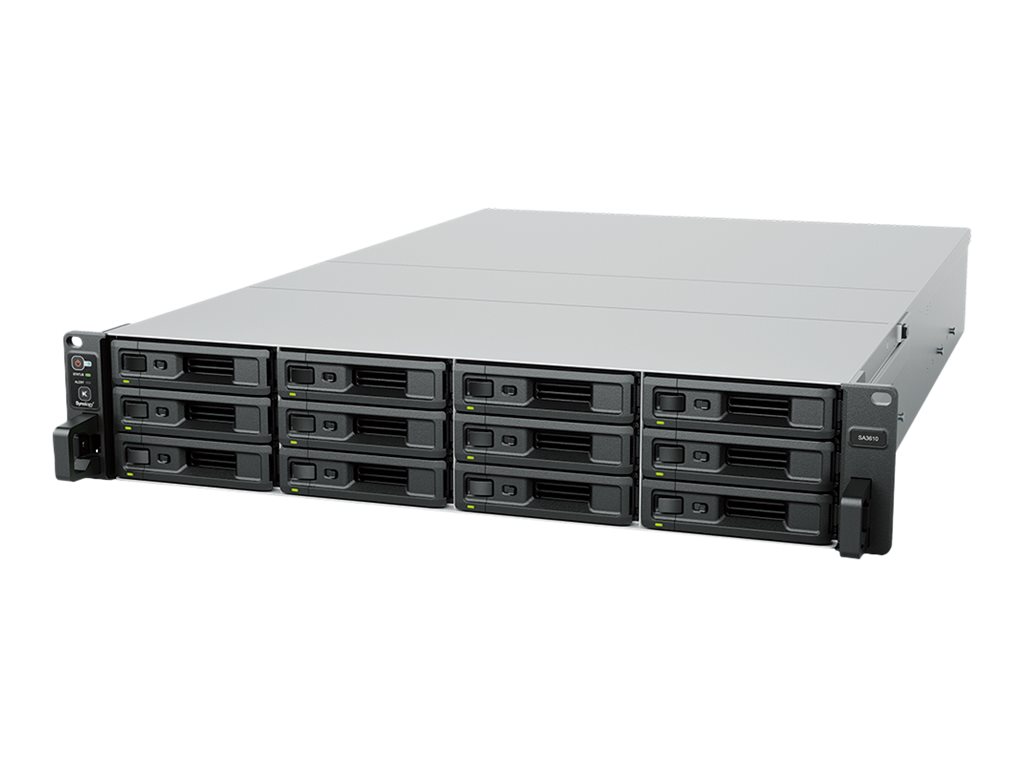

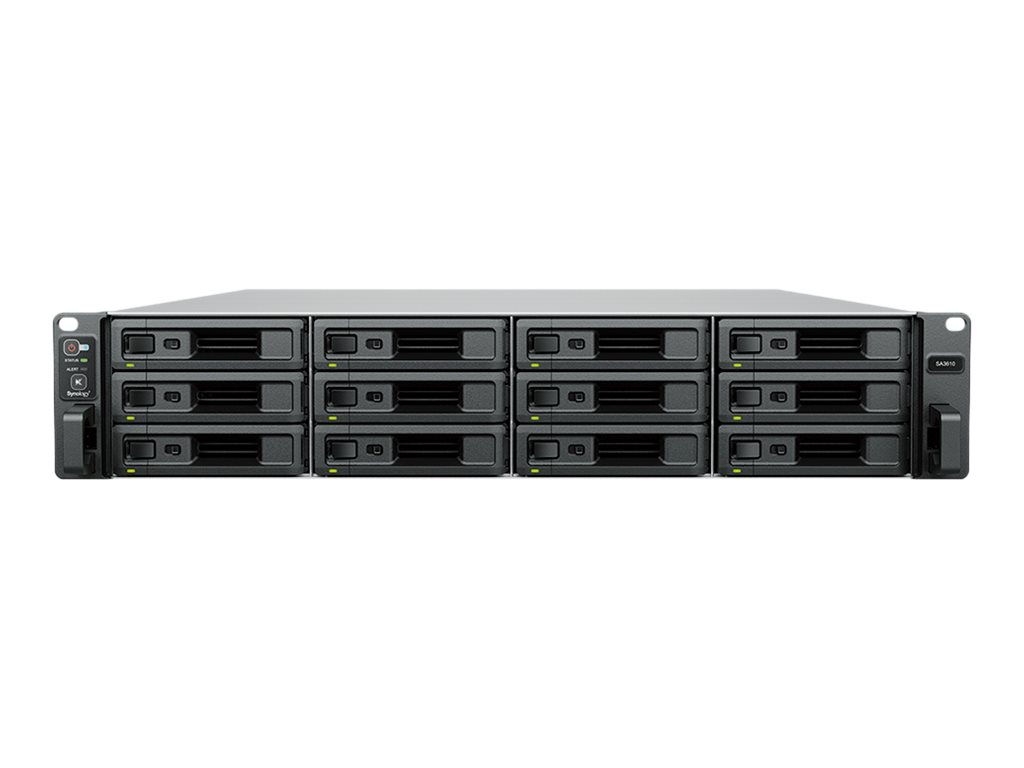

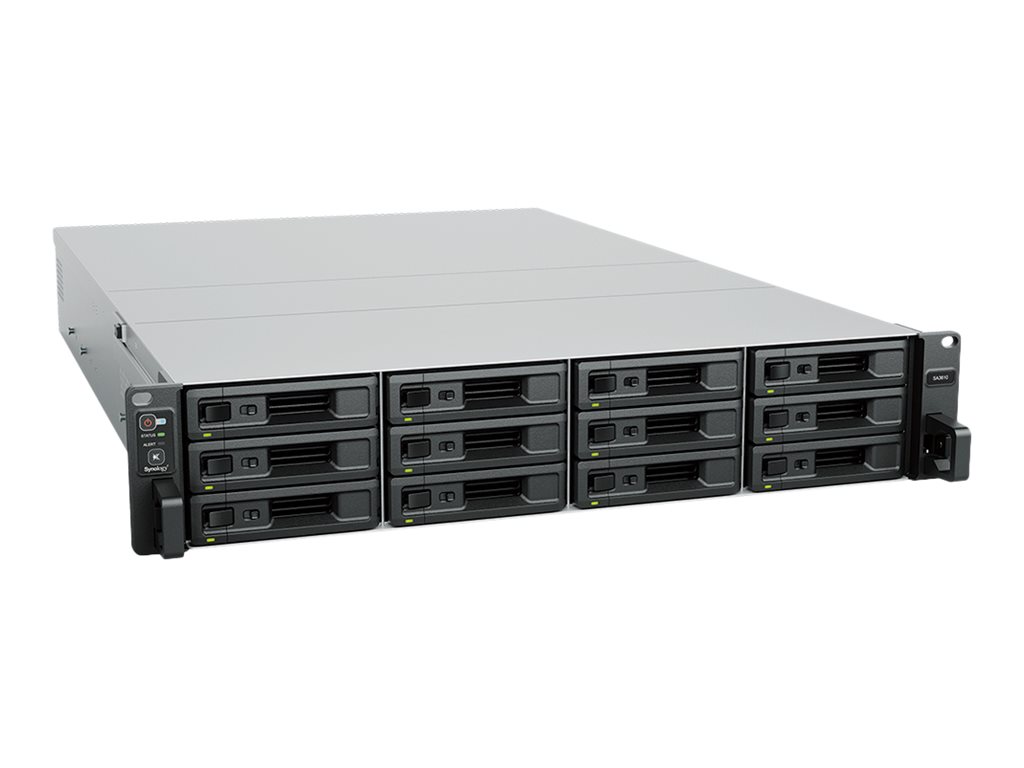

SYNOLOGY SA3410 12-Bay Rackmount Intel Xeon D-1541
The Synology SA3400 series is designed to provide large enterprises and studios with scalable, reliable data storage. Accommodating massive raw storage capacity and different network configurations, these 12-bay rackmount servers are perfect for businesses that need to store large volumes of data without sacrificing performance and dependability. Advanced management, high availability, and data protection solutions are available in the Synology DiskStation Manager (DSM) operating system. | |
Caracteristici produs | |
|
|
Produs: | |
Nume produs: | SYNOLOGY SA3410 12-Bay Rackmount Intel Xeon D-1541 |
Descriere: | Synology SA3410 – NAS server – 12 bays – rack-mountable – SATA 6Gb/s / SAS – RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 – RAM 16 GB – Gigabit Ethernet / 10 Gigabit Ethernet – iSCSI support – 2U |
EAN: | |
Garanție: | 24 Luni |
General | |
Device Type: | NAS server |
Host Connectivity: | Gigabit Ethernet / 10 Gigabit Ethernet |
Enclosure Type: | Rack-mountable – 2U |
Total Storage Capacity: | 0 TB |
Max Supported Capacity: | 1.728 PB |
Installed Devices / Modules Qty: | 0 (installed) / 12 (max) |
Width: | 43.05 cm |
Depth: | 69.2 cm |
Height: | 8.8 cm |
Weight: | 14.5 kg () |
Built-in Devices: | Led panel |
Processor / Memory | |
Processors Installed: | 1 x Intel Xeon D-1541 2.1 GHz |
Number of Cores: | 8-core |
Max Supported Qty: | 1 |
Max Turbo Speed: | 2.7 GHz |
RAM: | 16 GB (installed) / 128 GB (supported) – DDR4 |
Features: | Registered, ECC |
Storage Controller | |
Type: | RAID |
Interface Type: | SATA 6Gb/s / SAS |
RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1 |
Networking | |
Data Link Protocol: | 10Mb LAN, 100Mb LAN, GigE, 10 GigE |
Network / Transport Protocol: | PPTP, L2TP, iSCSI, FTP, SMB, NFS, OpenVPN |
Remote Management Protocol: | SNMP, Telnet, SSH, LDAP |
Network Services Compatibility: | File Level Security (ACLs), Network File System (NFS), FTP, Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV) |
Performance: | Sequential read: 6275 Mbps Sequential write: 3056 Mbps Random read: 450814 IOPS Random write: 122675 IOPS Local user account: 16000 Local group account: 512 Maximum number of shared folders: 512 Maximum concurrent connections: 4000 |
Features: | Firewall protection, VPN support, wake on LAN (WOL), reset button, B-tree file system (Btrfs), EXT4 file system, Rsync compatible, wake on WAN (WOW), Let’s Encrypt, SSD read-write cache, shared folder encryption, SMB encryption, login auto block, Kubernetes support |
Encryption Algorithm: | SSL, TLS |
Expansion / Connectivity | |
Expansion Bays: | 12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″ |
Expansion Slots: | 2 (total) / 2 (free) x PCI Express 3.0 x8 X M.2 |

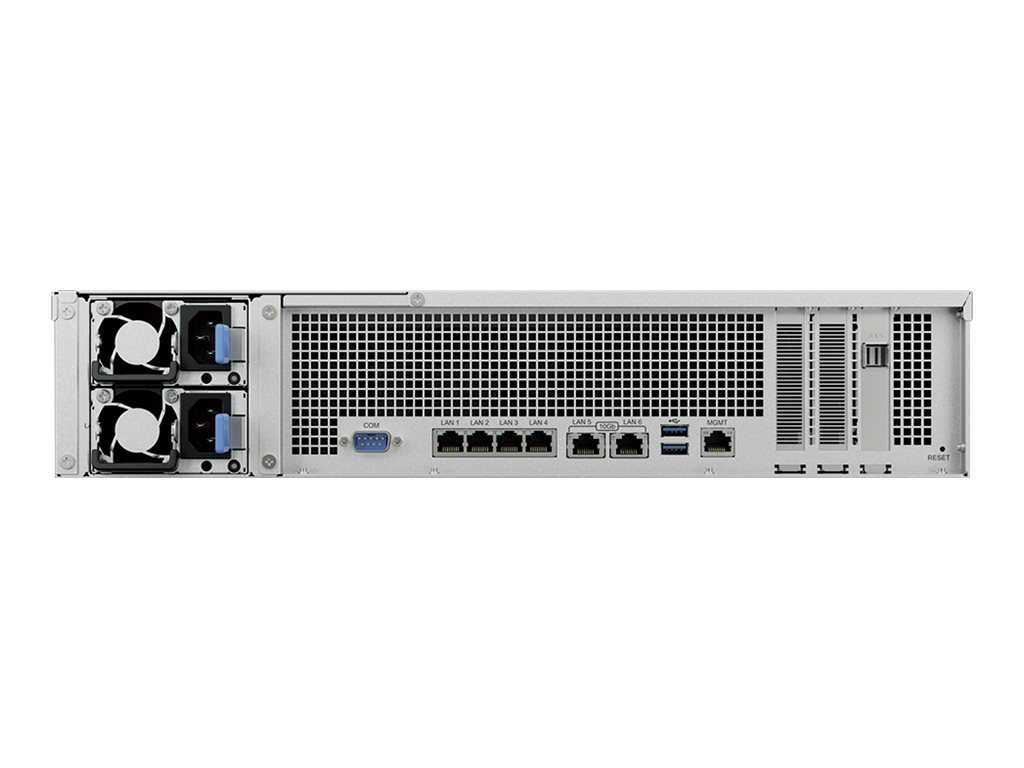

Interfaces: | 2 x USB 3.2 Gen 1 – Type A 1 x expansion port – Mini-SAS HD (SFF-8644) 1 x Ethernet 1000Base-T (management) – RJ-45 2 x Ethernet 10Gb – RJ-45 4 x Ethernet 1000Base-T – RJ-45 |
Miscellaneous | |
Features: | Scheduled power on/off, built-in 4 x 80 mm cooling fans |
Compliant Standards: | RoHS |
Included Accessories: | Accessory pack, 2 x power cables |
Power | |
Power Device: | Internal power supply |
Installed Qty: | 2 |
Max Supported Qty: | 2 |
Power Redundancy: | Yes |
Power Redundancy Scheme: | 1+1 |
Voltage Required: | AC 100-240 V (50/60 Hz) |
Software / System Requirements | |
Storage Operating System: | Synology DiskStation Manager |
Manufacturer Warranty | |
Service & Support: | Limited warranty – 5 years |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 8 – 80% RH |
