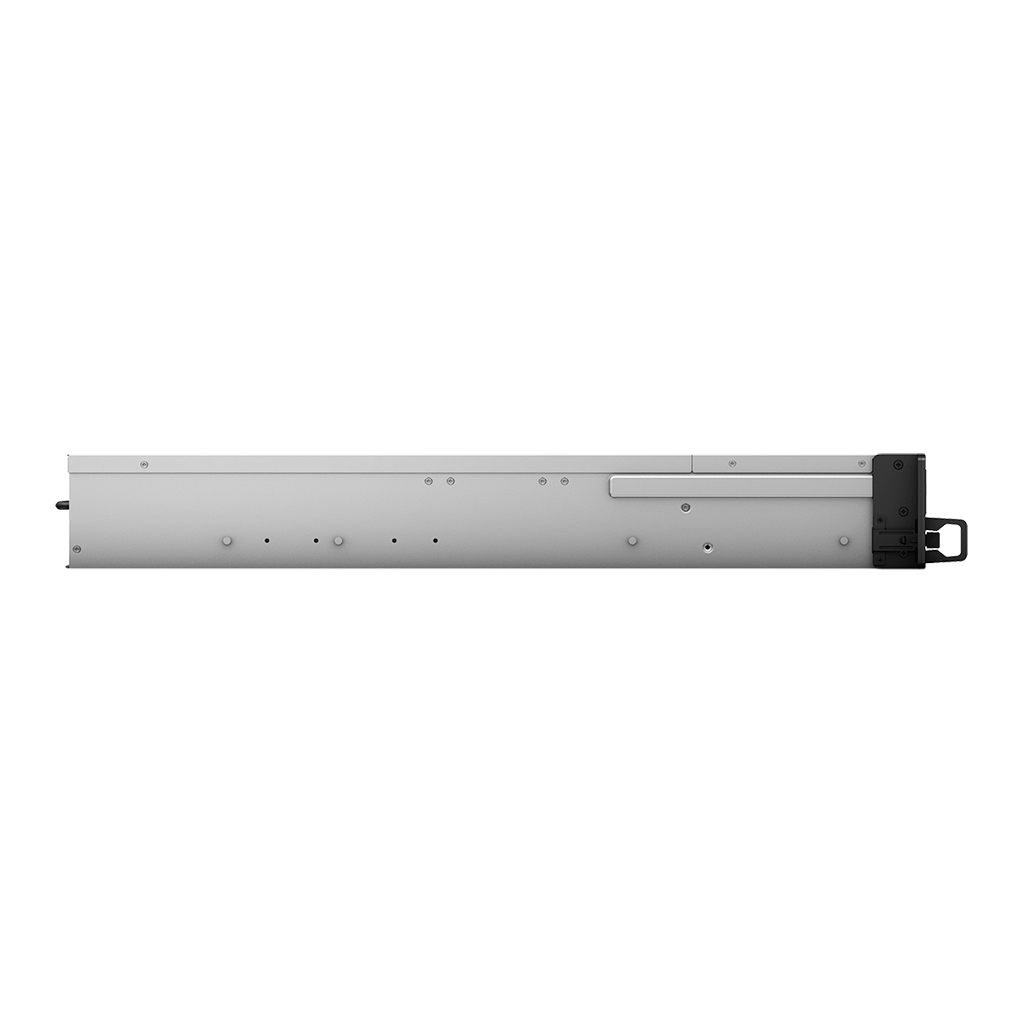

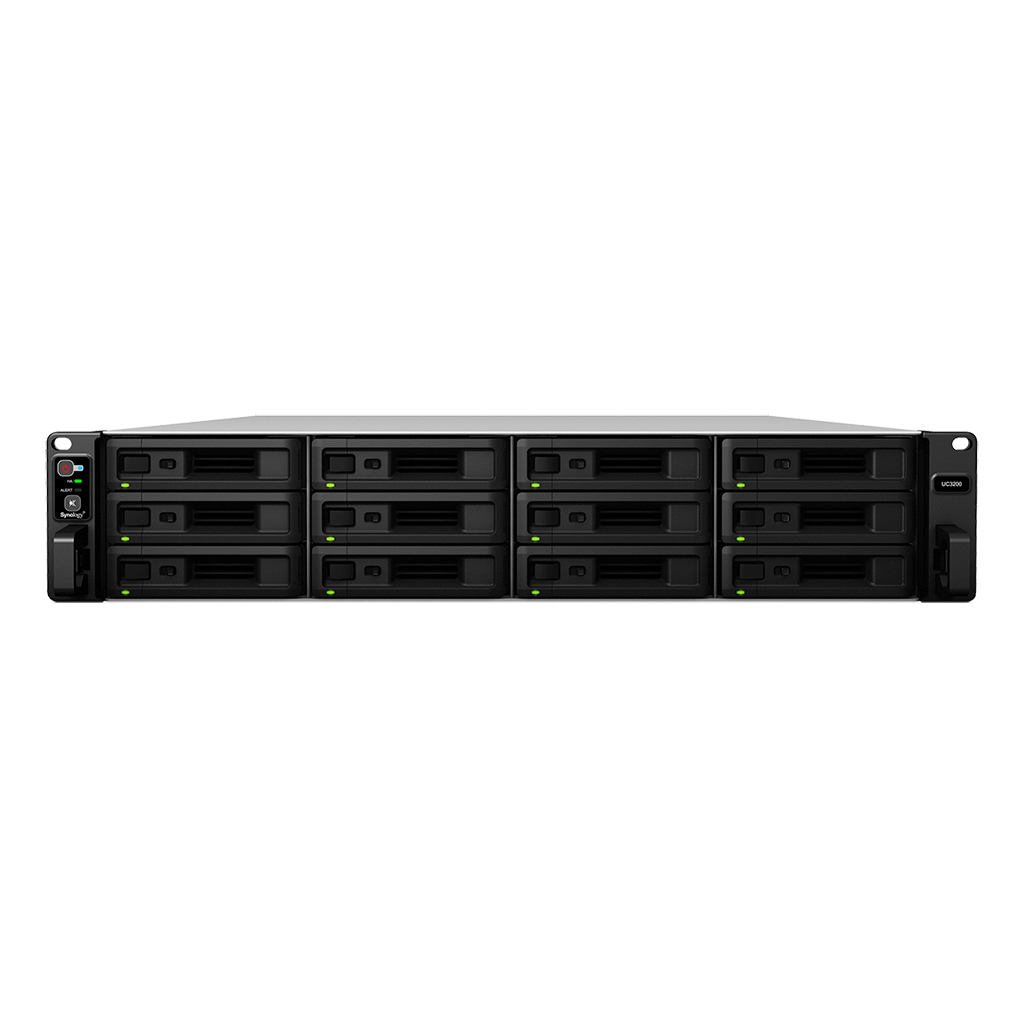

Synology UC3200 Dual Controller SAN 12-bay Xeon 2.4 GHz 8GB 1x10GB 2x1GbE LAN 2 x Power Supply (UC3200)
Active-active IP SAN for mission-critical environments.
42.749,75 lei
Synology UC3200 Dual Controller SAN 12-bay Xeon 2.4 GHz 8GB 1x10GB 2x1GbE LAN 2 x Power Supply
Realizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions.
12 x 3.5”/2.5” HDD/SSD
High-performance SAS interface drive slots with maximum 576TB raw capacity. Supporting SED (Self Encrypting Drive) to encrypt all data to hard drives, UC3200 provides upmost data security at the hardware level.
Designed for high-availability SAN environments, Synology Unified Controller UC3200 offers active-active architecture for non-disruptive iSCSI services. It provides resilient data protection solutions with a simplified management interface while maximizing service uptime for critical services.
| Descriere: | Synology Unified Controller UC3200 – Hard drive array – 12 bays (SAS) – SAS (external) – rack-mountable – 2U |
| EAN: | 4711174723126 |
| Garanție: | 60 Luni |
| General | |
| Device Type: | Hard drive array |
| Enclosure Type: | Rack-mountable – 2U |
| Chassis | |
| Installed Devices / Modules Qty: | 0 |
| Supported Devices / Modules Qty: | 12 |
| Supported Drives: | SAS |
| Storage | |
| HDD Array External Interface: | SAS |
| Maximum LUNs: | 128 |
| Processor | |
| CPU: | 2 x Xeon 2.4 GHz |
| Storage Controller | |
| Type: | RAID |
| Installed Qty: | 2 |
| Interface Type: | SAS |
| Cache / Buffer Size (Max): | 8 GB |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1 |
| Storage Controller (2nd) | |
| Installed Qty: | 2 |
| Hard Drive | |
| Type: | No HDD |
| Expansion / Connectivity | |
| Expansion Bays: | 12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″ shared |
| Expansion Slots: | 2 (total) / 2 (free) x PCIe 3.0 x8 |
| Interfaces: | 2 x SAS 4 x Ethernet 1000Base-T – RJ-45 2 x Ethernet 10Gb – RJ-45 2 x serial – 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Features: | Built-in 4 cooling fans, SNMP support |
| Compliant Standards: | RoHS |
| Included Accessories: | Accessory pack |
| Power | |
| Power Device: | 2 x internal power supply |
| Max Supported Qty: | 2 |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Voltage Required: | AC 120/230 V – 50/60 Hz |
| Dimensions & Weight | |
| Width: | 43.05 cm |
| Depth: | 69.2 cm |
| Height: | 8.8 cm |
| Weight: | 19.7 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty – 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 5 – 95% |
