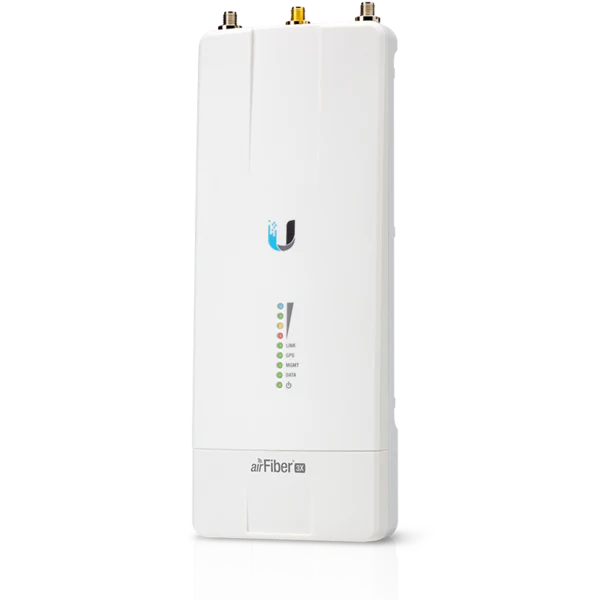

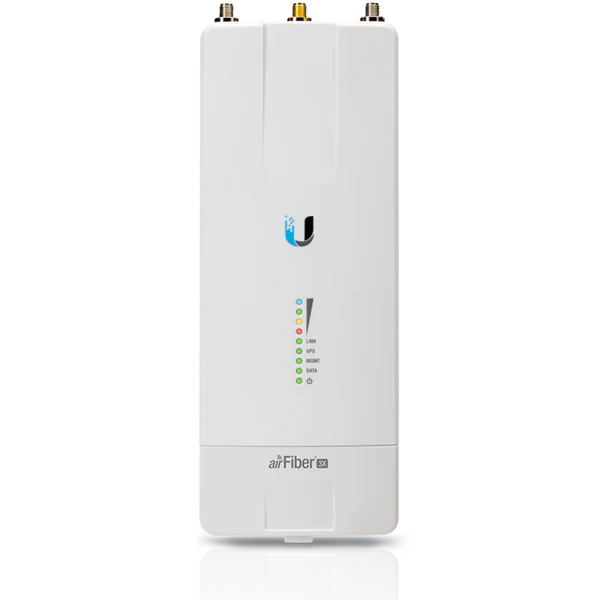

Ubiquiti airFiber 3 GHz Radio (AF-3X)
Create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul.
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The airFiber X antenna delivers 2×2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.
The AF-3X features industry-leading spectral efficiency, line‑rate data packet processing for up to 500+ Mbps of real data throughput, and innovative xtreme Range Technology (xRT™) for up to 200+ km in range.
Features:
-
- 2×2 dual-polarity performance
- Compatible with the airFiber® X antenna
- 200+ km transmission range with xtreme Range Technology (xRT™)
- Powered with the included 24V, 1A PoE Gigabit adapter
- (1) 10/100 Ethernet port
- (1) 10/100/1000 Ethernet port
- Line-rate data packet processing that yields a 687 Mbps maximum throughput
- 17W maximum power consumption
| Mechanical | |
|---|---|
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″) |
| Weight | 0.35 kg (0.77 lb) |
| Mounting | airFiber X mount (Rocket mount compatible) GPS Pole Mount (Included)) |
| Hardware | |

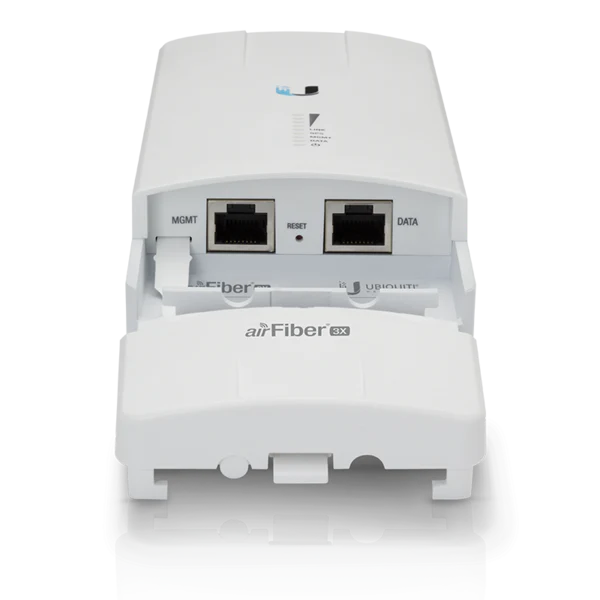

| Networking interface | (1) 10/100/1000 MbE port (1) 10/100 MbE port |
| Power method | Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)) |
| Power supply | 24V, 1A PoE Gigabit Adapter (Included) |
| Max. power consumption | 17W |
| Supported voltage range | 18—54V DC |
| GPS antenna | External, magnetic base |
| RF Connecstors | (2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
| Certifications | CE, FCC, IC |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Software | |
| OS | airOS |
| Modes | PtP Master/Slave |
| System | |
| Max. throughput | 687+ Mbps |
| Max. range* | 200+ km *Throughput and range values may vary depending on the environmental conditions |
| Encryption | 128-bit AES |
| Packets per second | 1+ Million |
| Latency
Half duplex mode |
< 2 ms at full throughput |
| MTU (Maximum transmission unit) | Up to 9600 |
| RF | |
| Operating frequency* | 3300-3900 MHz *Depends on regional regulations. |
| Max TX power* | 29 dBm *Dependent on regulatory region. |
| Frequency accuracy | ± 2.5 ppm without GPS synchronization ± 0.2 ppm with GPS synchronization |
| Channel bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable Programmable Uplink and Downlink duty cycles independently programmable TX and RX frequencies |
