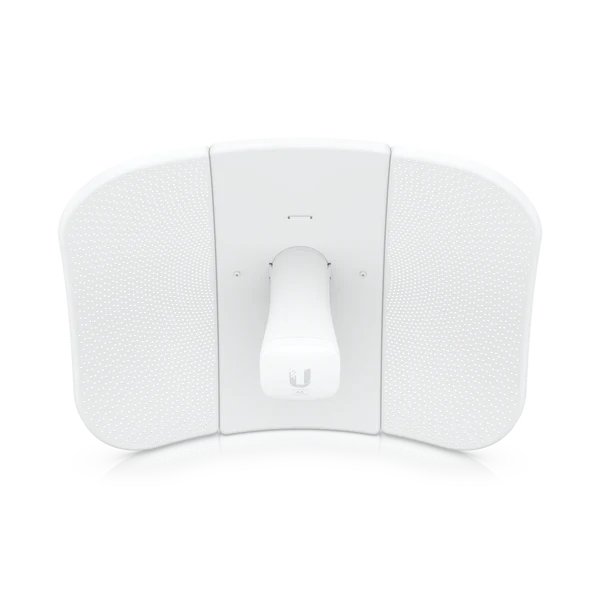

The LiteBeam® AX uses a high-gain antenna and airMAX protocol* to deliver sustained, high-speed throughput over long distances.
Features:
-
-
- 5 GHz radio (2×2 MIMO) running airMAX AX protocol
- High-gain, 23 dBi antenna with InnerFeed® technology
- Compatible with any airMAX AC AP
- Integrated Bluetooth
- Link planning support via the ISP Design Center
-
| Managed with UISP application: Version 1.4.6 and later Managed with the UISP Mobile app: Version 2.25.0 and later (iOS) / Version 2.26.3 and later (Android) |
*This device only functions as CPE and requires a compatible AX AP to run airMAX AX protocol.
| Mechanical | |
|---|---|
| Dimensions | 358 x 272 x 272.5mm (14.1 x 10.7 x 10.7″) |
| Weight | Without mount: 800 g (1.76 lb) With mount: 980 g (2.16 lb) |
| Enclosure materials | Aluminum alloy, UV-stabilized plastic |
| Mount | Ø35 to 60 mm (Ø1.38 to 2.36″) |
| Wind loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Dual-core ARM® Cortex®-53 at 1 GHz |
| Memory | DDR3L 256 MB |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Supported voltage range | 22—26V DC |
| Max. power consumption | 7.5W |
| RF connections | Internal |
| LEDs | Power/Ethernet |
| Button | Factory reset |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Encryption | WPA2-PSK (AES) |
| Services | SSH, dynamic DNS, remote log, ping watchdog |
| Utilities | Speed test, alignment, discovery, ping, traceroute |
| Management interface | Bluetooth management for easy setup over UISP Mobile app WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| RF | |
| Operating frequency* | 5.15 to 5.85 GHz *Dependent on regional regulations. |
| Frequency range US/CA Worldwide |
U-NII-1 5,150 – 5,250 MHz U-NII-3 5,725 – 5,850 MHz 5,180 – 5,875 MHz |
| Channel bandwidth | 20/40/80/160 MHz |
| Max. conducted TX power | 25 dBm |
| Antenna gain | 23 dBi |
| Isolation | 20 dBi |
| Beamwidth | 3 dB: 8 to 12° 6 dB: 11 to 16° |
| Electrical downtilt | 0° |
