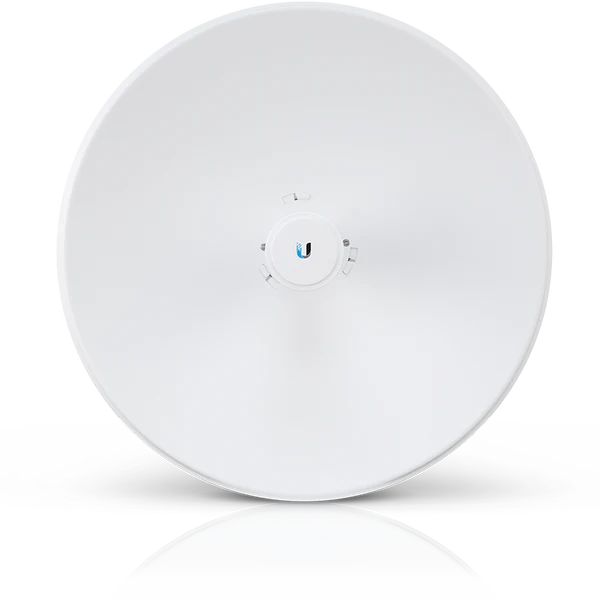

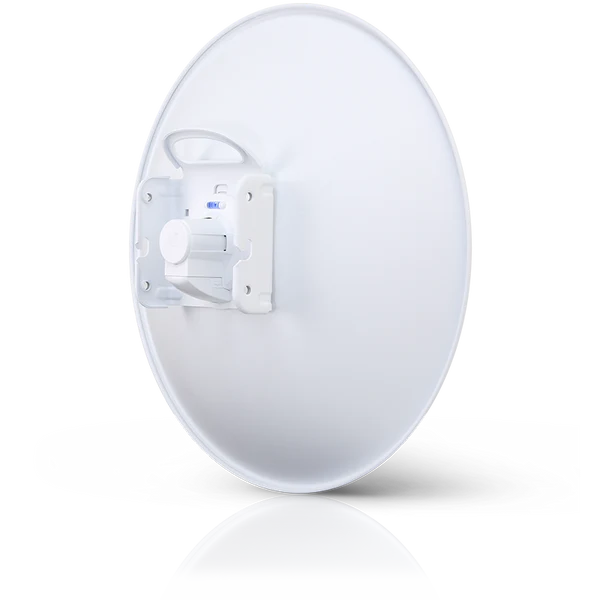

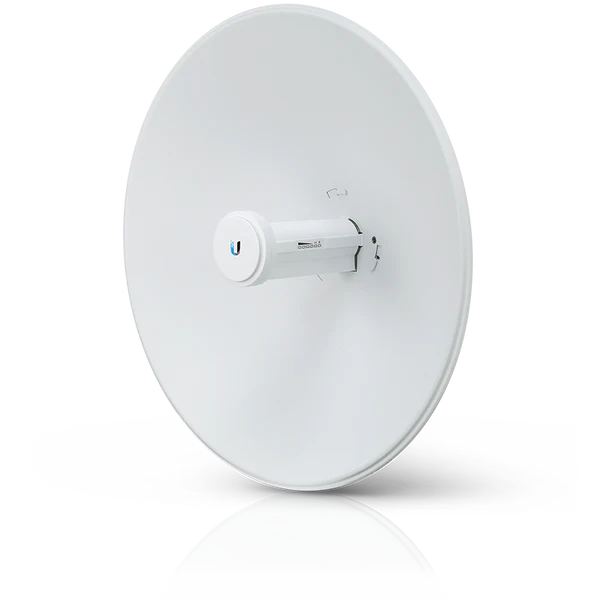

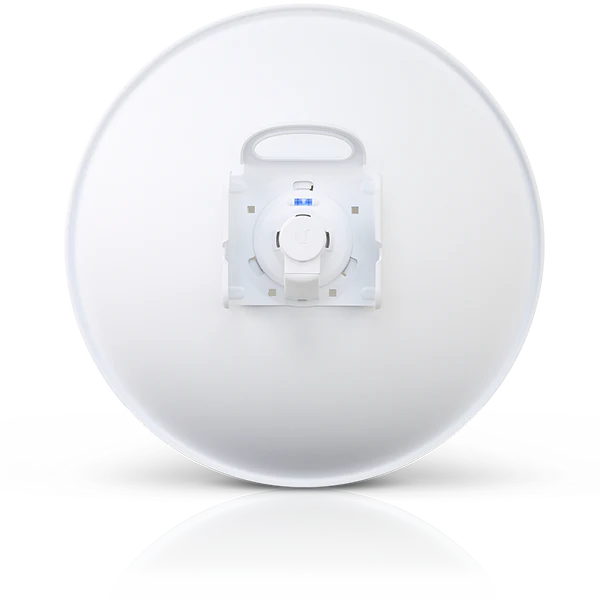

Ubiquiti UISP airMAX PowerBeam 5AC Bridge (PBE-5AC)
High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector. Provides up to 450+ Mbps data throughput.
Powerful dish reflector design with proprietary airMAX ac chipset and dedicated management WiFi for easy UISP® mobile app support and fast setup. Excellent beam directivity provides the best performance for PtP or PtMP links located in high-noise environments.
Features:
-
-
- Improved radio design
- Improved mounting
- Improved surge protection
- Management WiFi Radio/UISP mobile app
- AirOS 8
-
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 230mm (16.54 x 16.54 x 9.06″) |
| Weight | 2.22 kg (4.89 lb) |
| Enclosure materials | UV-stabilized plastic, powder-coated SPCC |
| Wind loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mounting | Pole mount kit (Included) |
| Hardware | |
| Networking interface | (1) 10/100/1000 MbE port |
| Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. power consumption | 8.5W |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported voltage range | 20—26V DC |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| RoHS compliance | Yes |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Operating temperature | -40 to 70 C (-40 to 158 F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 25 dBi |
| Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 MHz |
| US/CA | 2412 – 2462 MHz |
