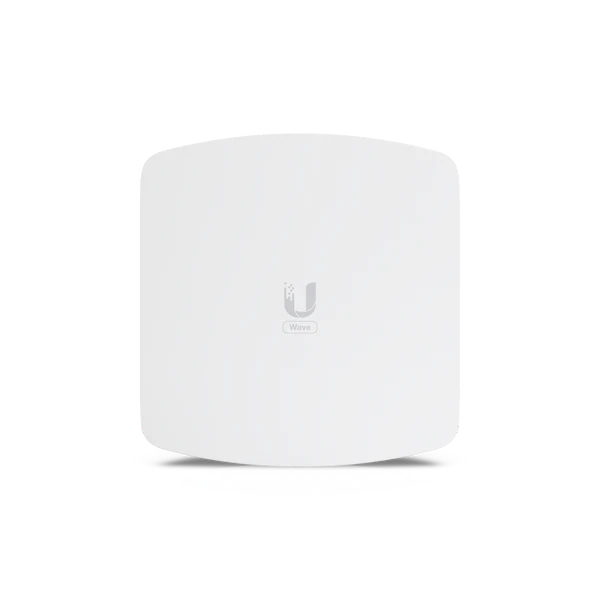

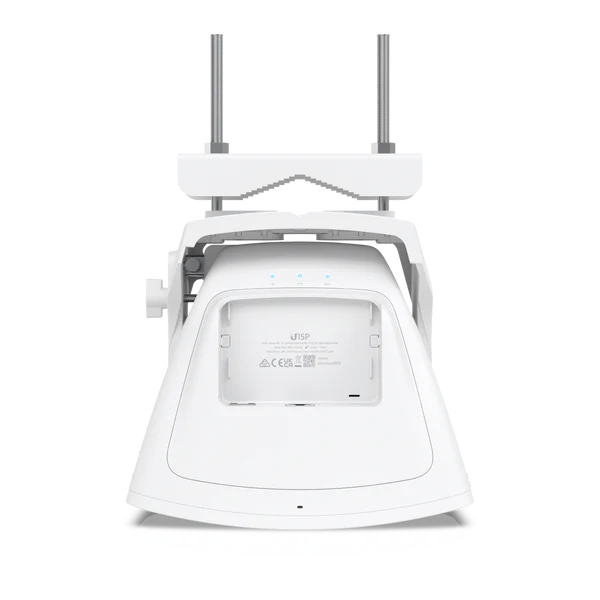

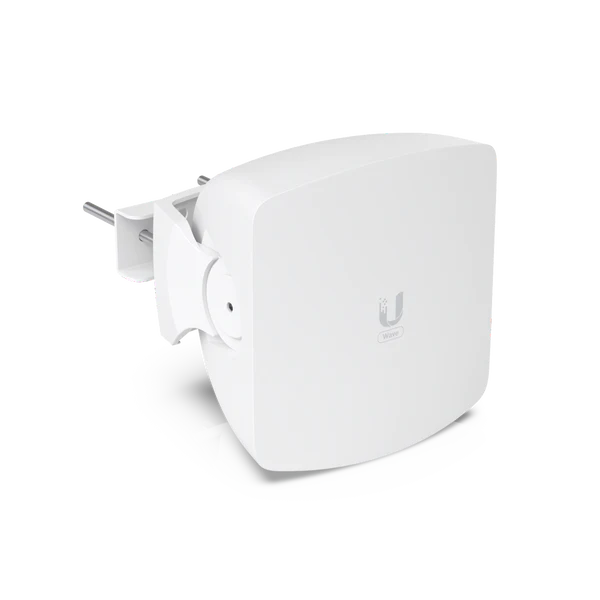

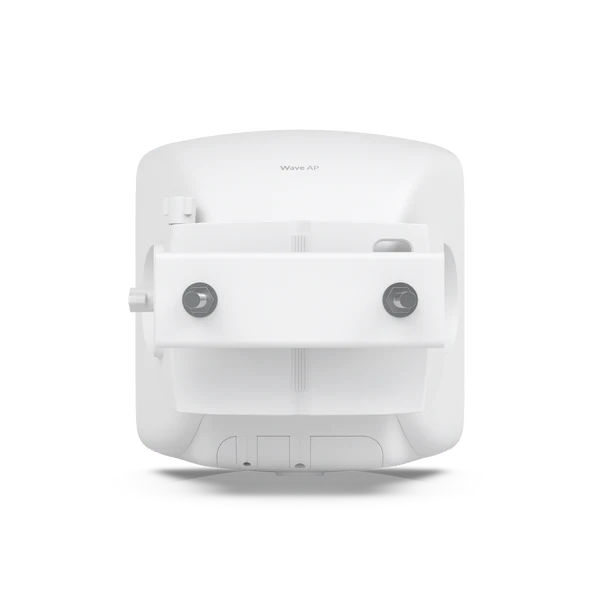

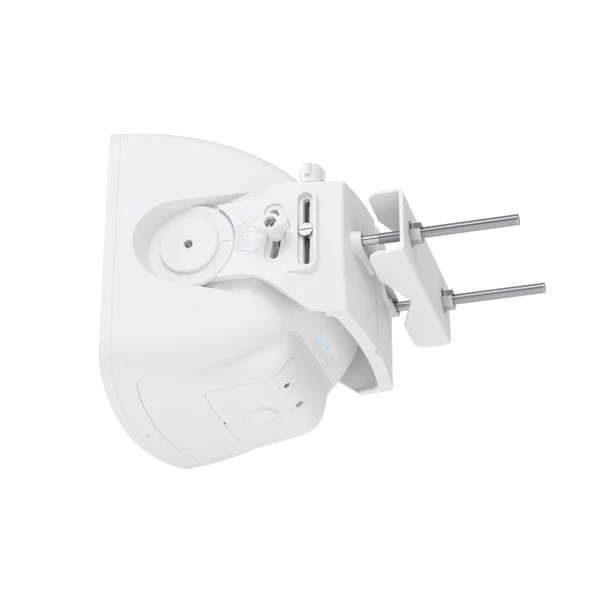

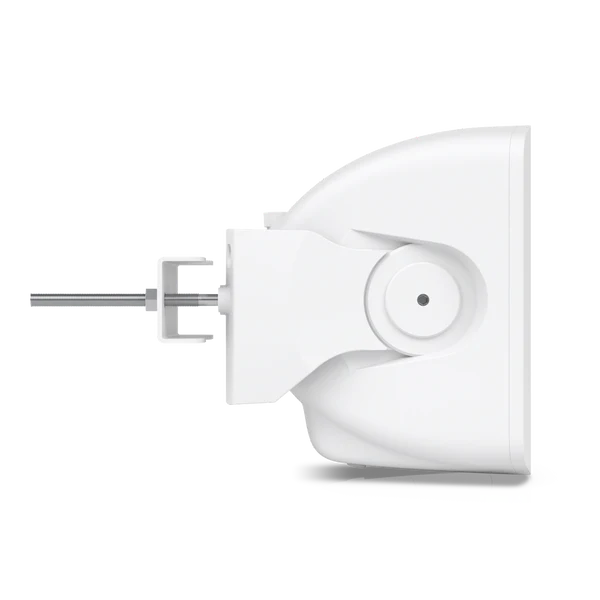

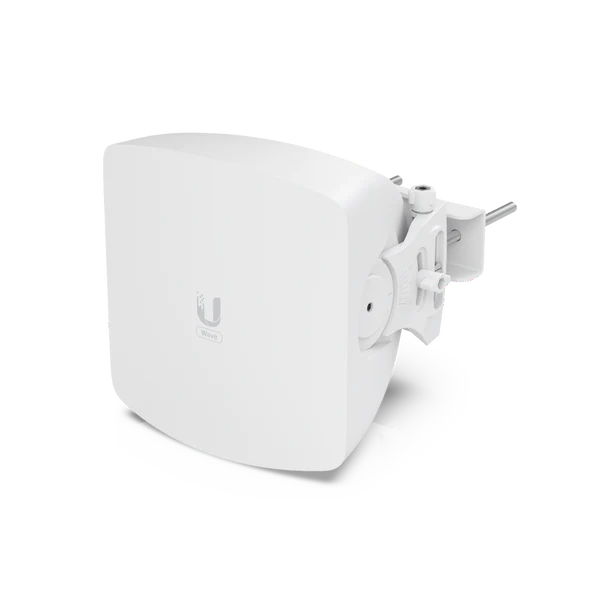

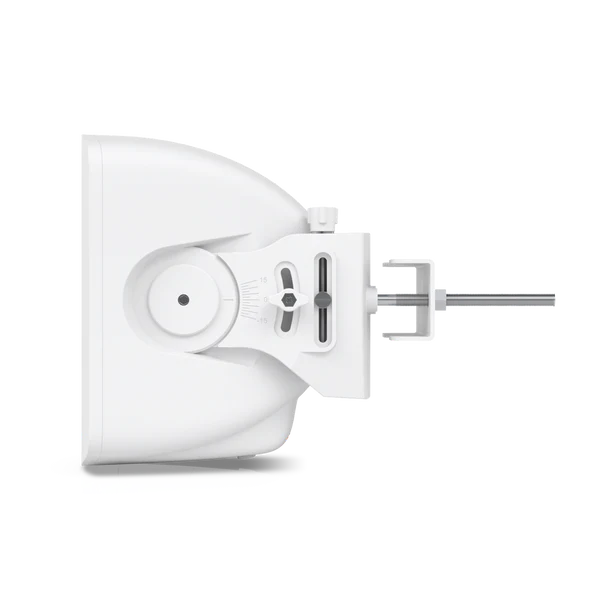

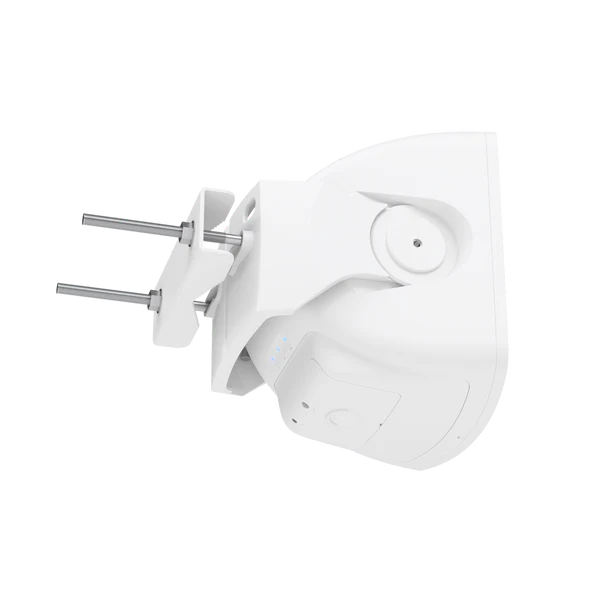

Ubiquiti UISP Wave Access Point (Wave-AP)
The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s
3.019,67 lei
| Mechanical | |
|---|---|
| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4″) |
| Weight | 2.3 kg (5.07 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Pole mount diameter | 25 to 76 mm (1 to 3″) on pipe outer diameter |
| Wind loading | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad ARM® Cortex®-A53 cores at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) 2.5GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10) * Active only when SFP+ port is down. |
| Max. power consumption | 24W |
| Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 or 2-pairs (4, 5+; 7, 😎 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 |
| Power supply | 48V DC, 0.65A 2.5GbE PoE adapter (included) |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Operating mode | PtMP access point |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Software management | Bluetooth management for easy setup over UISP Mobile app WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Total throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Supported clients count | 15 |
| Range | Connecting to a Wave Long-Range: up to 8 km Connecting to a Wave Nano: up to 5 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 24 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 30° Elevation: 3 dB 3°, 6 dB 4° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CAWorldwide |
U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz5150 – 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 12 dBi |
| Cross-pol isolation | 10 dB |
| Electric downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
