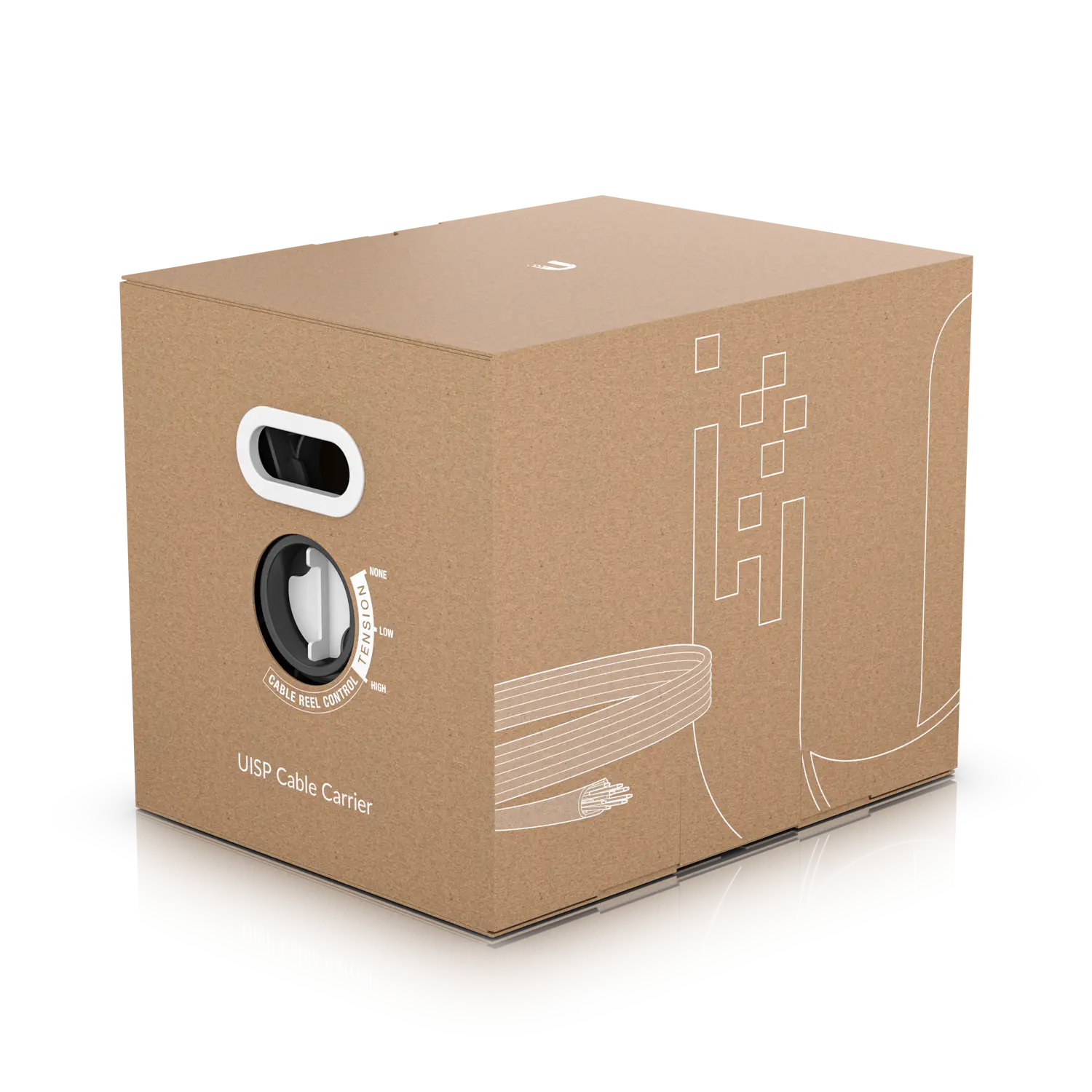

Ubiquiti UISP Cable Carrier
Category 5e cable
Insulated, weatherproof cable jacket
Internal braid, foil shielding and drain wire for increased ESD damage protection
Internal anti-crosstalk divider to preserve signal integrity in high-traffic areas
Cable length 305 m
Technical Specifications
| Mechanical | |
|---|---|
| Box Dimensions | 330 x 425 x 340 mm (13 x 16.7 x 13.4″) |
| Box Weight | 16 kg (35.3 lb) |
| Cable Lenght | 305m (1000ft) |
| Cable Color | Black |
| Cable Type | CAT5e, Shielded |
| Ethernet Support | Up to 1 Gbps |
| Conductor Wire Gauge | 24 AWG |
| Conductor | Solid Bare Copper |
| Conductor Diameter | 0.500 ± 0.005 mm |
| Insulation Type | Solid Polyethylene |
| Insulation Thickness | Avg. 0.295 mm Min. 0.29 mm |
| Insulation Diameter | 1.16 ± 0.02 mm |
| Separation (Polyester Wrapping) | Thick: 0.025 mm, Extent: 20 mm |
| Anti-Crosstalk Divider | LDPE: 4.2*0.3 mm |
| Cable Shield (Aluminum Foil) | Thick: 0.060 mm, Extent: 20 mm |
| ESD Drain Wire | 0.4 TC |
| Rip Cord | Yes |
| Secondary Cable Shield (Braid) | 16*8*0.16AA Density: 95% |
| Jacket Material | Polyethylene |
| Jacket Thickness | Avg. 0.52 mm Min. 0.46 mm |
| Jacket Outer Diameter | 6.8 ± 0.30 mm |
| Jacket Color | Black |
| Storage Temperature | -30 to 75° C (-22 to 167° F) |
| Installation Temperature | -20 to 60° C (-4 to 140° F) |
| Operation Temperature | -40 to 80° C (-40 to 176° F) |
| Standards | ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
