Ubiquiti UISP Fiber Coexistence WDM Filter (UACC-UF-WDM-XGS)

Compara
Pretul afisat contine TVA (19%).

1.733,57 lei

Compara

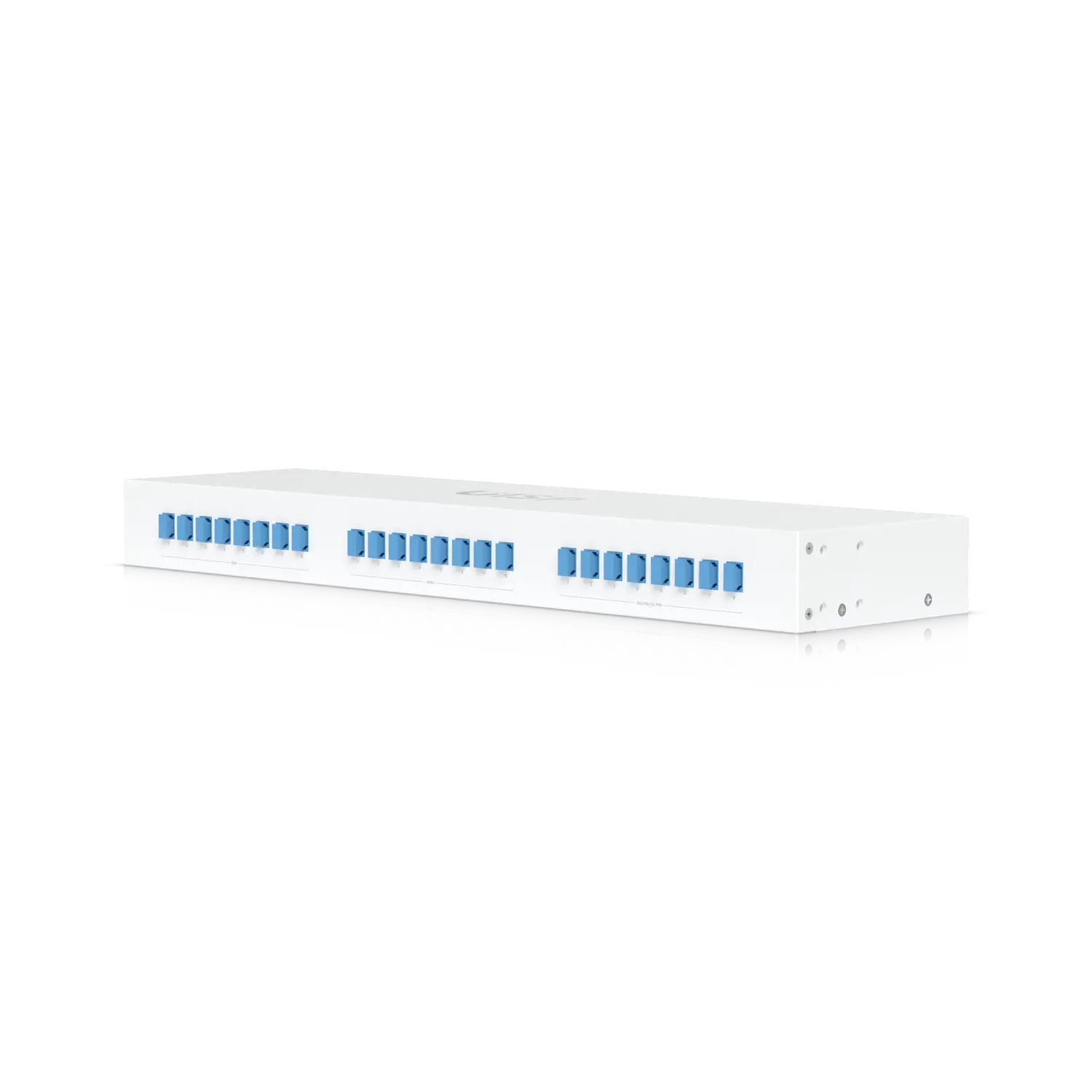

Ubiquiti UISP Fiber Coexistence WDM Filter



Wavelength Division Multiplexing module that combines XGS/XG-PON and GPON services into a single fiber distribution system.

(24) Connectors

1U Rack mount



SKU: UACC-UF-WDM-XGS Categorii: , , ,
Mechanical
Dimensions 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7″)
Weight 1.8 kg (3.97 lb)
Enclosure material Metal
Connector type (8) COM (SC/UPC)
(8) GPON (SC/UPC)
(8) XGS/XG-PON (SC/UPC)
Hardware
GPON – COM port
Wavelength range 1290—1330 nm
1480—1500 nm
Max. insertion loss 1 dB
Min. isolation 25 dB
XGS-PON – COM port
Wavelength range 1260—1280 nm
1575—1580 nm
Max. insertion loss 1 dB
Min. isolation 25 dB
Min. return loss 50 dB
Max. polarization dependentloss 0.1 dB
Fiber type ITU-T G.657.A1 Single Model Fiber
