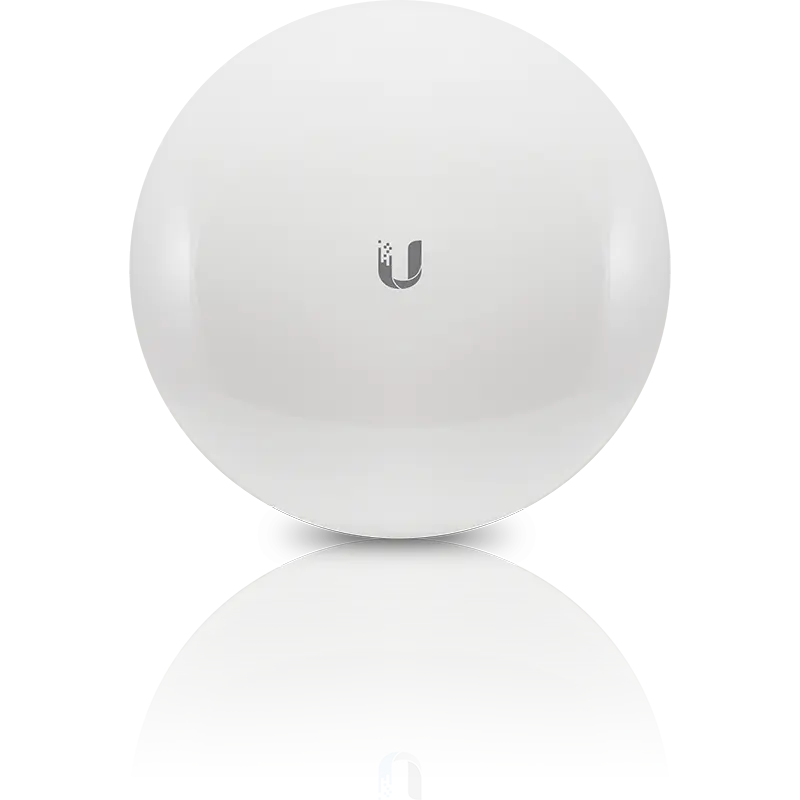

Ubiquiti UISP airMAX NanoBeam M5
5 GHz frequency band
Cost-effective, high-performance
Plug-and-play integration with airMAX antennas
Technical Specifications
| NBE-M5-16 | |
|---|---|
| Dimensions | 140 x 140 x 54 mm (5.51 x 5.51 x 2.13″) |
| Weight | 0.320 kg (0.71 lb) |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Max. Power Consumption | 6W |
| Gain | 16 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | Atheros MIPS 74Kc, 533 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Max. VSWR | 1.5:1 |
| Channel Sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included), Wall-Mount |
| Wind Loading | 21.4 N @ 200 km/h (4.8 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Operating Frequency MHz | |
| Worldwide | 5150 – 5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 5250 – 5350 5470 – 5725 5725 – 5850 |
