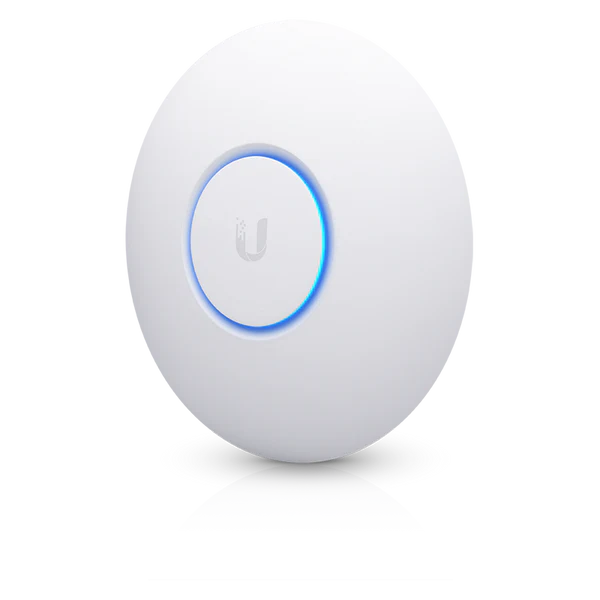

Ubiquiti Access Point nanoHD (UAP-UAP-nanoHD)
Dual-band, 802.11ac Wave 2 access point that can support over 200 clients with its 2+ Gbps aggregate throughput rate.
The Access Point nanoHD (UAP nanoHD) is a compact, dual-band access point that can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4×4 MU-MIMO) and 2.4 GHz (2×2 MIMO) bands. The UAP nanoHD can also support over 200 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. With its elegant, nano-sized design, this access point can be staged virtually anywhere indoors where you’d like to enhance your wireless speed and performance. Built for plug-and-play simplicity, the UAP nanoHD can be set up in minutes and fully managed with the UniFi Network web application or UniFi mobile app.
Features:
-
-
- Four-stream, 802.11ac Wave 2 WiFi technology
- 5 GHz (4×4 MU-MIMO) band with a 1.733 Gbps throughput rate
- 2.4 GHz (2×2 MIMO) band with a 300 Mbps throughput rate
- 200+ concurrent client capacity
- Powered by PoE (PoE injector included with single pack)
-
| Managed with UniFi Network application. |
| Mechanical | |
|---|---|
| Dimensions | 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29″) |
| Weight | Without Mounting Kit: 300 g (10.6 oz) With Mounting Kit: 315 g (11.1 oz) |
| Hardware | |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Button | (1) Reset |
| Power Method | PoE |
| Power Supply | UniFi Switch (PoE) |
| Max. Power Consumption | 10.5W |
| Max. TX Power 2.4 GHz 5 GHz |
23 dBm 26 dBm |
| Antenna Gain 2.4 GHz 5 GHz |
2.8 dBi 3 dBi |
| MIMO 2.4 GHz 5 GHz |
2 x 2 4 x 4 |
| Throughput Rate 2.4GHz 5GHz |
300 Mbps 1733 Mbps |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per Radio |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160) |
