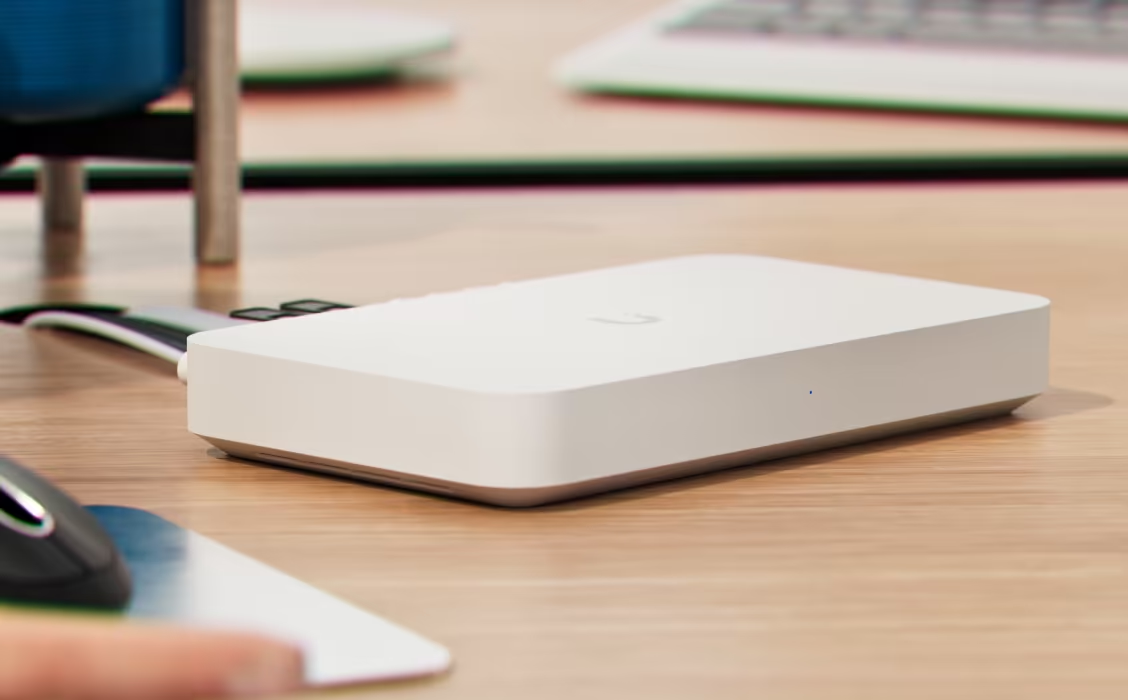

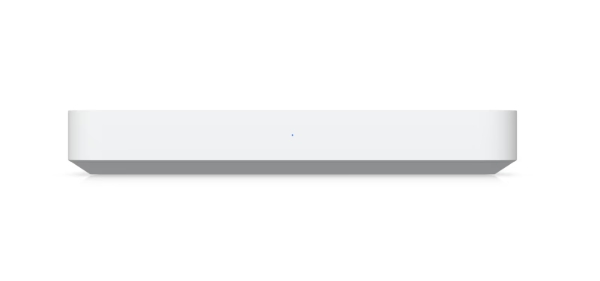

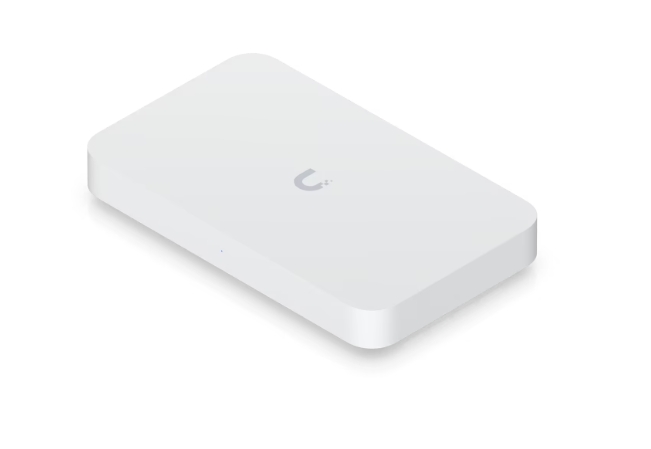

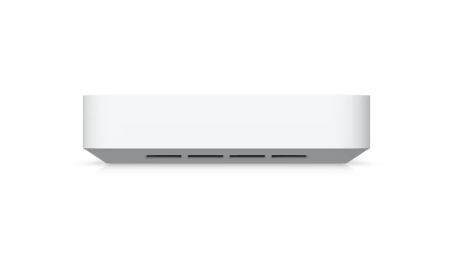

Ubiquiti UniFi Gateway Fiber
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
5 Gbps routing with IDS/IPS

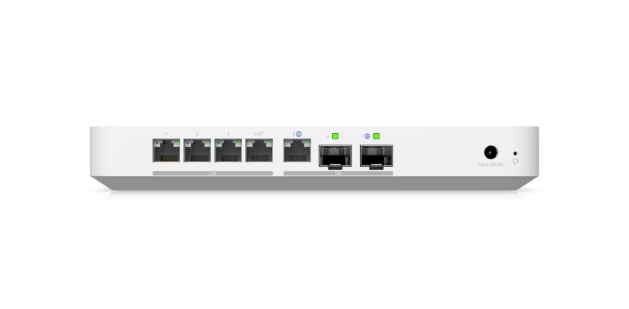

(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port

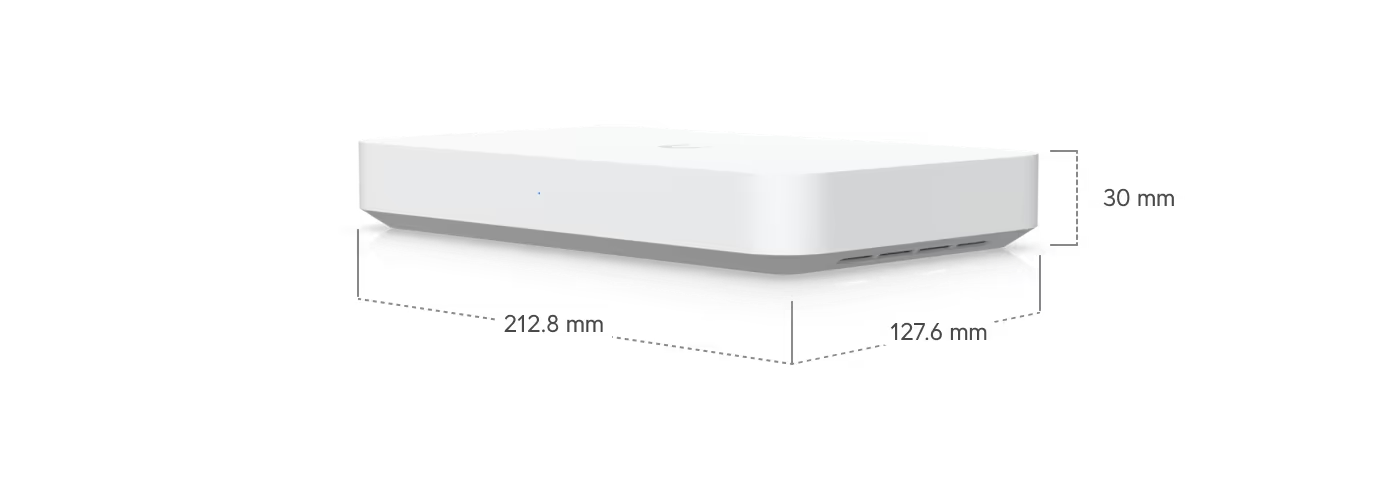

Dimensions
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2″)
Default WAN Ports
(1) 10G SFP+ (1) 10 GbE RJ45
LAN Ports

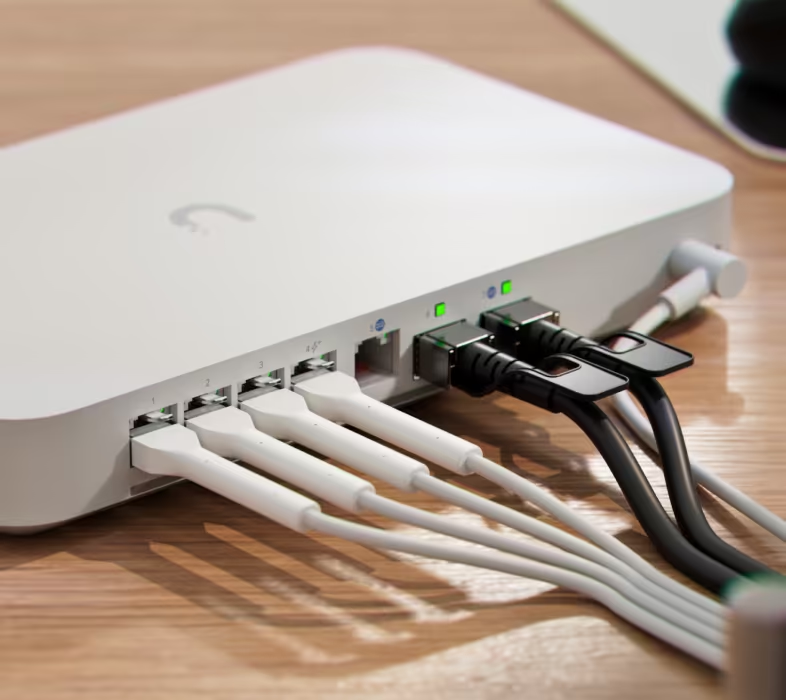

(1) 10G SFP+ (4) 2.5 GbE RJ45
IDS/IPS Throughput
5 Gbps
Form Factor
Compact desktop
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Intrusion Prevention (IPS/IDS)
Yes
IDS/IPS Signatures
55,000+ With CyberSecure
Teleport Zero-Configuration VPN
Yes
Multi-WAN Load Balancing
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
4,000
Max. PoE Wattage per Port by PSE
Voltage Range PoE Mode
50—57V
Max. Power Consumption
25W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)

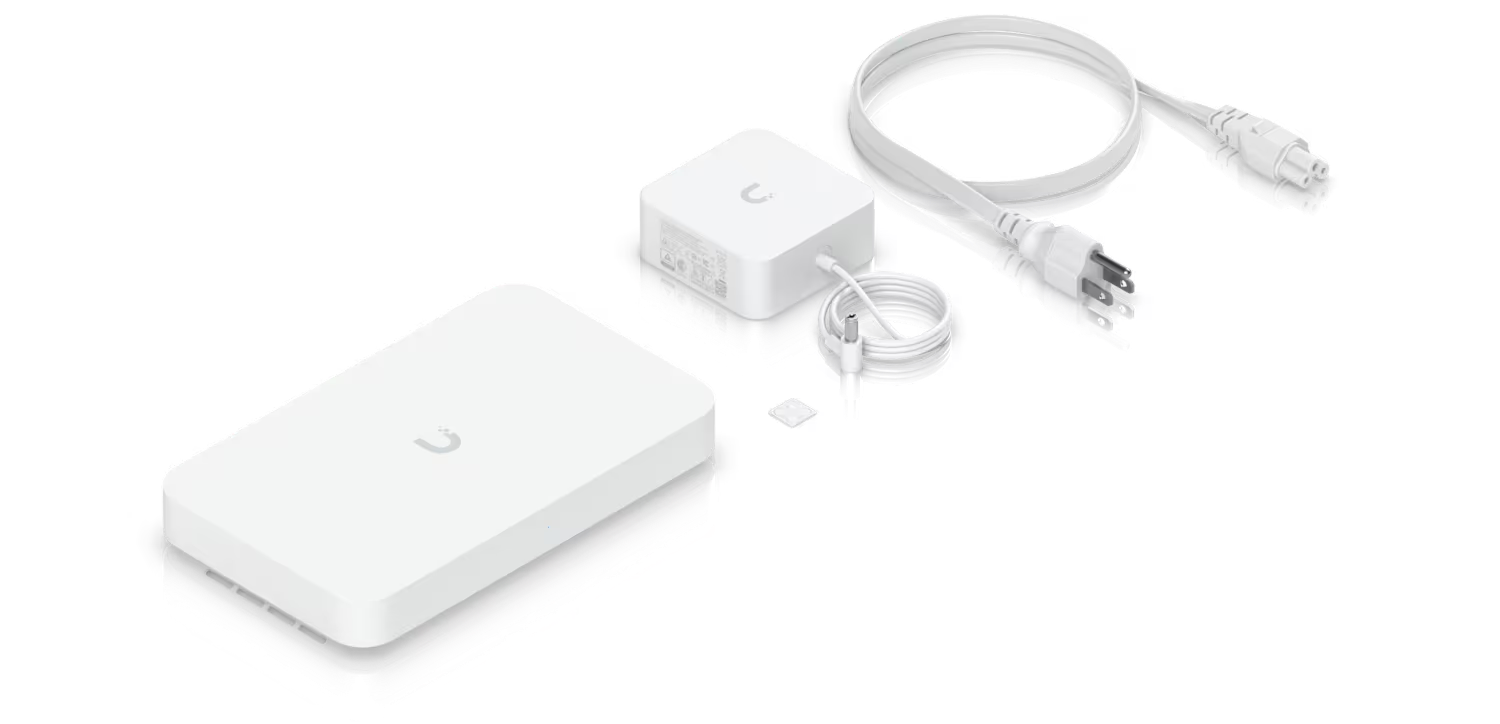

Power Supply
54V DC/1.1A (Adapter included)
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
Enclosure Material
Polycarbonate
Management
Ethernet Bluetooth
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
