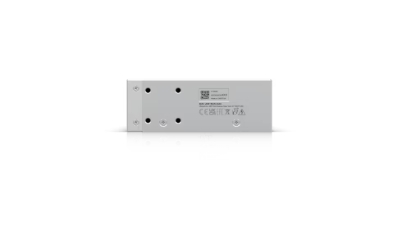

Ubiquiti UniFi WAN Switch RJ45 (USW-WAN-RJ45)
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Note. Use an additional USW-WAN-RJ45 switch for deployments with multiple ISPs.
Overview
Dimensions
442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7″)
Port Layout
1 GbE RJ45
1 (1G/100M/10M)
10 GbE RJ45
3 (10G/5G/2.5G/1G/100M)
Redundancy
(2) AC inputs
Form Factor
Rack mount (1U)
Performance
Switching Capacity
20 Gbps
Total Non-Blocking Throughput
10 Gbps
Forwarding Rate
15 Mpps
Hardware
Max. Power Consumption
18W
Power Method
(2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
(2) AC/DC, internal, 36W
Supported Voltage Range
100—240V AC
Management
Ethernet
Weight
Without mounting brackets: 2.3 kg (5.1 lb) With mounting brackets: 2.4 kg (5.3 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
ESD/EMP Protection
Air: ± 16kV, contact: ± 10kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
LEDs
Ethernet
Yes
System
Yes
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Software
Application Requirements
UniFi Network
Version 9.1.119 and later
