SYN 18.5 Inch Sync Displaying Bus Digital Signage HDMI In Out Loop Connection

SYN 18.5 Inch Sync Displaying Bus Digital Signage HDMI In Out Loop Connection

Product Description

HDMI In Out loop Connection 18.5 Inch Sync Displaying LCD Bus Digital Signage Display

Quick detail of HDMI in and out sync displaying lcd bus monitor :

1. Screen size is 15.6inch, 18.5inch, 21.5inch, 23.8inch and 27inch.

2. Full HD or HD resolution.

3. With 1 HDMI in and 1 HDMI out ports.

4. Support loop connection.

5. Support signal input by Rasberry pi or Android or Windows.

6. Sample is available.

Specification of HDMI in and out sync displaying LCD bus monitor :

Description of HDMI in and out sync displaying LCD bus monitor :

Each bus has 1-2 LCD advertising display is enough, but in overseas market, this qty is far away enough, some times, each bus has 3-5 LCD advertising screen and all has sync dispalying at the same time.

This project is customized for Brail market, at the beging, we want to have a mother monitor and 5 slave screens by using HDMI splitter, but the disavantage of this solution is many long HDMI cables are needed for installation, finally we gave the second solution by loop connection all screens by HDMI cable from 1st monitor to the 2nd one, and then from the 2nd screen HDMI out to the 3rd lcd display HDMI in. By doing so, just several piece of 3-5m HDMI cables are enough, by doing so, can help to save total cost for the whole project. Meanwhile, rasberry pi and Android player box can be provided by our factory or customer himself.

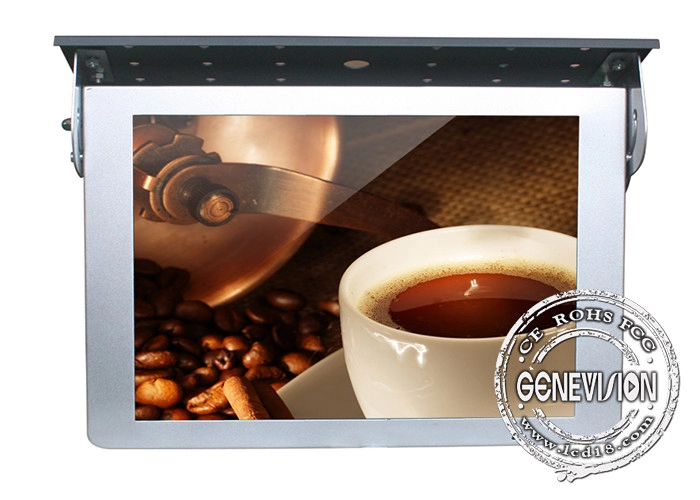

For this lcd bus screen material, we also have two solutions, one is with full metal housing which has a piece of tempered glass in front, another one is metal  housing with aluminum frame around. We can customize both models for bulk order.

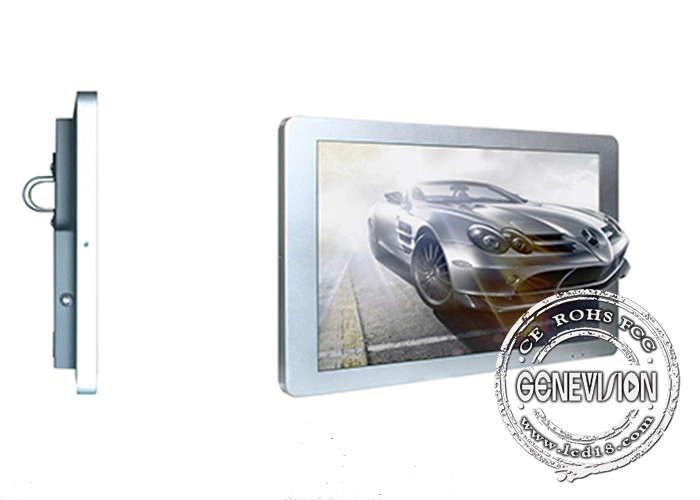

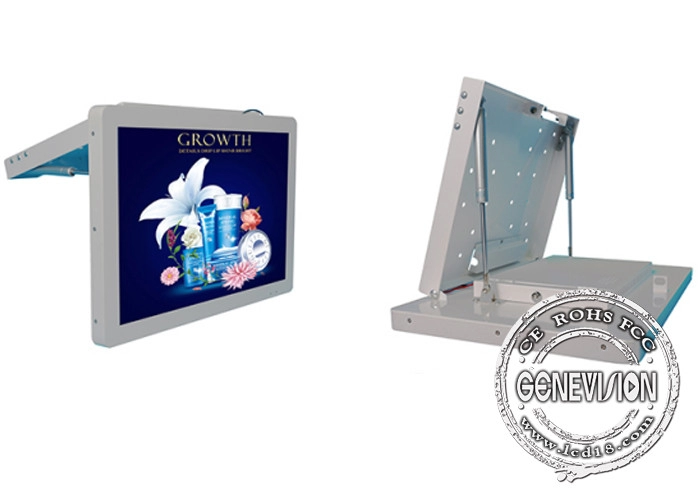

Installation is quite simple, can be installed on the roof with adjustable angle design, also can be hang on the pillar on the bus with installation hooks on the back, support both vertical and horizontal displaying installation.

Application of HDMI in and out Sync displaying LCD bus monitor :

This smart LCD Screen can hang in the roof of bus to make advertising business, at the same time passanger can watch the video as a TV. The movable bus TV video can relax the people when people make transpatation and lunch the information also.
