SYN Widescreen HD Open Frame Touch Screen Monitor For Indoor Multimedia
digital signage equipment
Compara
SYN Widescreen HD Open Frame Touch Screen Monitor For Indoor Multimedia
| Size: | 10.4 Inch | Screen: | Industrial A + Grade LCD Panel |
|---|---|---|---|
| Resolution: | 800 * 600 | Type: | Open Frame |
| Viewing Angle: | 140°/150° | Display Area: | 214mm(W)*160mm(H) |
| Aspect Ratio: | 4:3 | ||
| High Light: | open frame lcd panel,
open frame displays |
||
Product Description

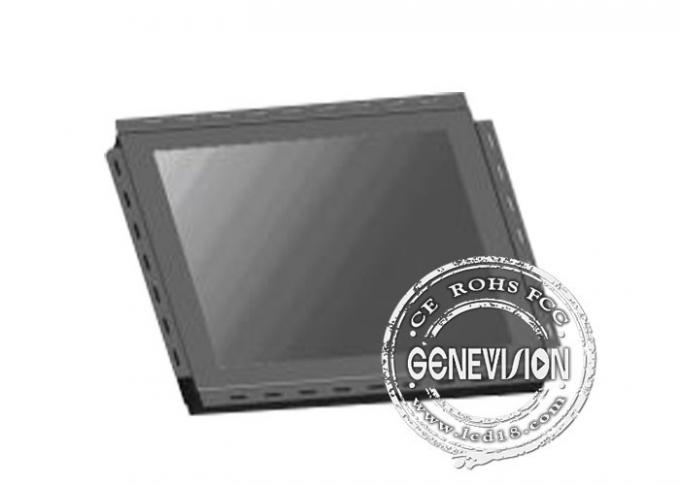

Widescreen HD Open Frame LCD Display 10.4″ for Indoor Multimedia
- 4:3 Aspect Ratio
- USB2.0, or VGA interface is optional
- Standard VESA install mount.
- Professional appearance design,delicate and generous.
- Industrial A+ grade LCD panel
- Intelligence temperature control fan design,green and quiet.
- VGA image reproduction rate
Description:
- Ultra-slim design,convenient use,delicate appearance.
- Industrial A+ grade LCD panel
- High contrast,High brightness,vivid image layout,bets details performance.
- Auto eliminate blur function,long life span.
- Auto adjust VGA image reproduction rate.
- Multiple date-image adjustment circuit,low image distortion.
- Wide visual angle 178°,aspect ratio 4:3
- Rich signal input,output interfaces,adapted in the different environments.
- Appling the latest 3D digital image decode chipset,the latest DNR,image clear,clean and vivid.
- Intensive the IR receiver,support the IR remote to modify the monitor parameters.
- Build-in stable power,low consumption,long life span>60000hours
Specifications:
Technical Parameter for LCD Panel
| product | 10.4″ HD Open frame LCD Monitor |
| model | MP-104 |
| Screen type | 10.4″ TFT LCD |
| Display area | 214(W)×160(H) |
| Aspect ratio | 4:3 |
| resolution | 800×600 |
| Number of colors | 16.7M |
| Dot pitch | 0.264(H)×0.264(V) |
| brightness | 350cd/㎡ |
| contrast | 450:1 |
| Viewing angle | 140°/150° |
| Response time | 5ms |
| HF | 31k~48kHZ |
| VF | 56~60HZ |
| color system | PAL/NTSC/SECAM |
| Signal interface | Input:2*BNC,1*VGA,1*AUDIO output:1*BNC |
| voltage | DC 12V/2A |
| On mode | ≤18W |
| Standby model | ≤1W |
| Working temperature | 0°~50° |
| humidity | 20%~80% |
| Life | 60000H |
| color | Black/white/customized |
| installment | Desktop/wall mounted |
| certification | CE/3C/FCC/UL |
| Dimension | 238.4×192.4×35 |
| Net weight | 1.8KG |
Competitive Advantage:
Indoor multimedia LCD monitor with an open frame design,you can design the front cover according to your exact project.Mostly customers install this open frame LCD ad player under tables or inside walls or inside their own machines to make full use of its open frame feature perfectly.With slim frame design is available.
