SYN Industrial Grade 100″ Touch Screen Digital Signage 2-100 Points Film PCAP Foil Touch Solution
| Film Size: | 32inch, Customization Support | Touch Screen: | Nano Touchscreen |
|---|---|---|---|
| Touch Point: | 10-100 Points | Glass Thickenss: | 3-8mm |
| Control Board: | Included, Industrial Grade | Technology: | 7th Generation Nano Foil Touchscreen Technology |
| High Light: |
ir touch screen frame, infrared touch screen frame |
||
Product Description
100″ Multi Touchscreen PCAP Foil Touch Solution

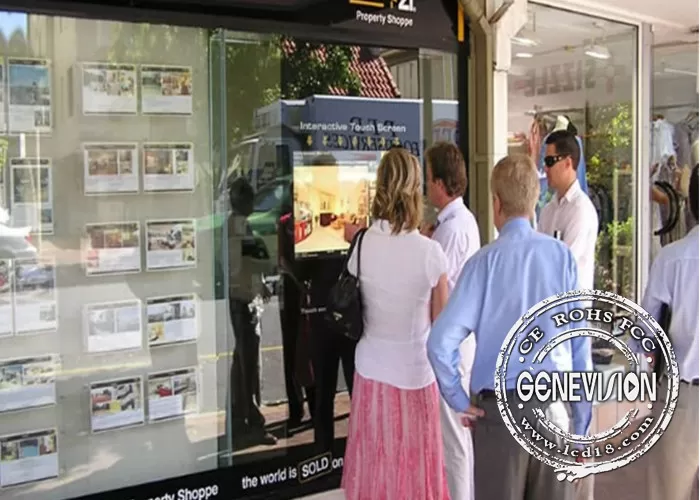

This is the 7th generation nano touchscreen technology, is widely used in shop windows, it can provide a wonderful and novel advertising solution, people who passing by can touch the normal window glass and check the information which they are intrested in, it support 10 point or even 100 points multi-touch technology, all the requirements can be customized.
Glass thickness suggest to be from 3mm to 8mm, the thickest glass can support is in 12mm.
Mainboard is in industrial grade, with self-adaption control system, has strong ability to withstand interference and recover.
17″-37″ adopt to 1K precision with 1024 sensor, 42″-60″ use 4K precision with 4096 sensor, while 65″-100″ employ 8K precision with 8192 sensor.
Installation is quite easy, everyone can attach it onto a glass quite easily.
| Available size | 17-100 inch | Touch points | 10-100 points |
| Series | M series | Touch deviation | ≤0.5mm |
| Energy consumption | 2W | Drive Type | Drive Free |
| Arm Reject | Yes | Custom | support |
| Point report Rate | >=100 | Film thickness | ≤100um |
| Light transmission rate | Above 93% | Supply voltage | 5V USB |
| Transmission | USB2.0 | Warranty | 1 Year |
| Program-level | Kernel-level low-level drive | Technical certification | CE,ilac-MRA,CNAS,CAL,CMA |
| Ambient temperature | -20℃ to +70℃ | Ambient lightness | Whole angle of the anti-glare |
| Touch support | Click, drag, zoom, rotate | Sensing distance | ≤20mm( glass thickness ) |
| Calibration mode | Software calibration | Program type | Andriod,Linux,Mac,Windows7/8/8.1/10 |
| Transmission distance | ≤50m ( plus USB signal amplifier, etc ) | Safety distance | 2mm( refers to the distance between the LCD screen and the film) |
| Packing List | 1 * touch film circuit/ control board * 1 /USB cable * 1 | ||
